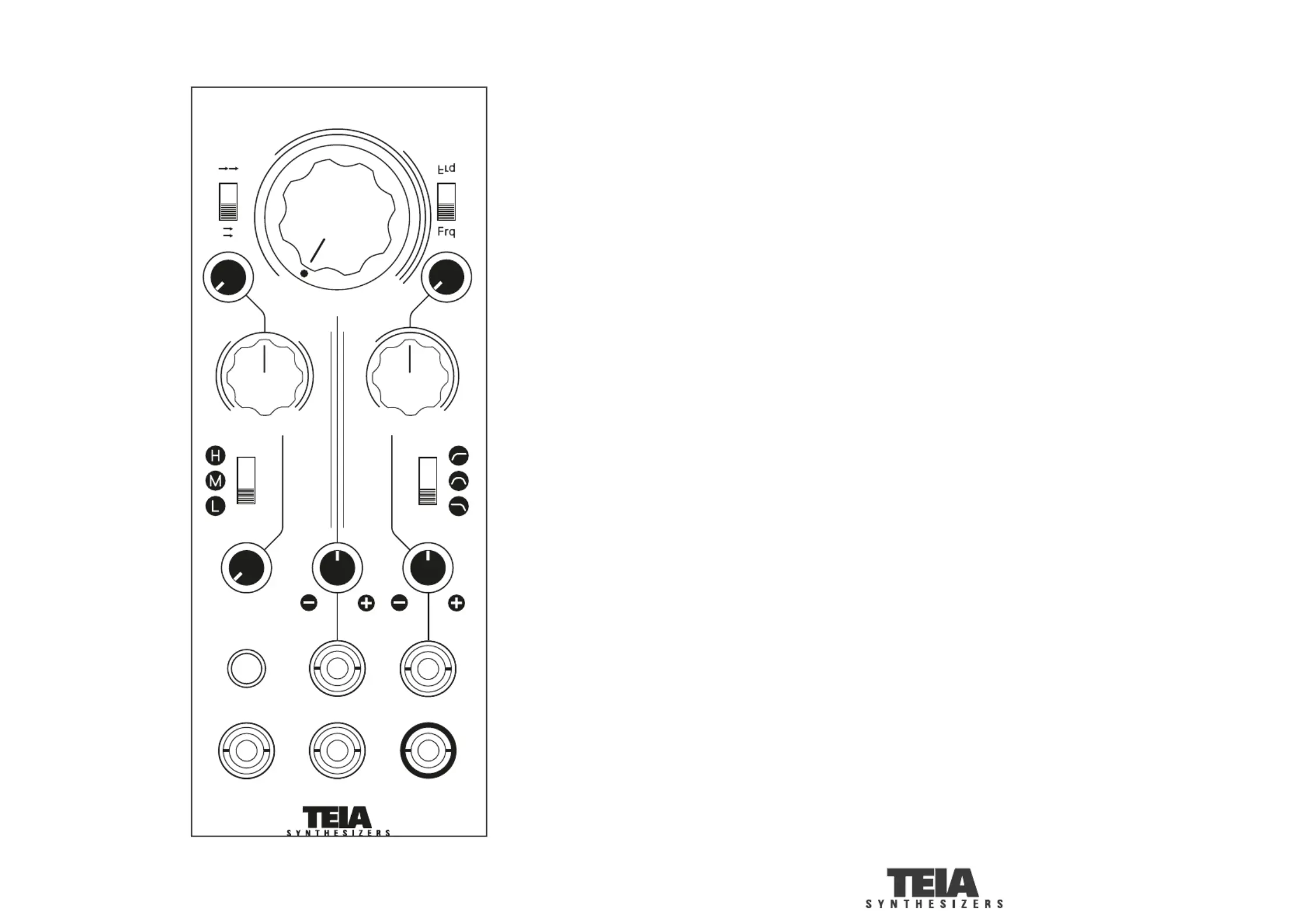

Pagina 1/7
Drive
Vca Vcf
Freq/Amp
FdBk
Out
Level
In
Resonance
Freq/Amp
Ping
OpticTone
Resonance
Multimode Gate
OpticTone MK2
1
The OpticTone MK2 is an improved revision of our original module, combining a 12dB multi-mode
Vactrol VCF and a Vactrol VCA. This unique circuit is inspired by the distinct characteristics of
Vactrols and Lowpass gates, celebrated for their fluid and natural character.
The Filter section offers the three essential filter types: Lowpass, Bandpass, and Highpass. A new
Range Switch allows you to select between high, mid, and low filter ranges, with the High position
providing the wider filter range. The Resonance knob, equipped with a voltage control input,
offers improved modulation flexibility. The feedback knob interacts with the Resonance path,
serving as a resonance compensation control, allowing you to adjust from smooth, creamy
resonance to wild self-oscillation.
The OpticTone MK2 introduces a new switch to select between series and parallel configurations
for the VCA and Filter. In parallel mode, the VCA comes first. Both the VCA and Filter are
controlled by the Freq/Amp knob, its voltage-control input, and touch control via the 3 lines on the
panel below the knob. The combination of signals can be crossfaded with a dedicated knob.
The new circuit is designed to allow the user to produce low pass gate pluck sounds. To achieve
lowpass gate pluck sounds, send a short trigger (about 20ms) to the Freq/Amp CV input and utilize
the Vactrol's slow, envelope-like decay. You can use the crossfade knob to mix the VCA and VCF
signals, allowing you to balance and fine-tune the pluck effect.
The Frq switch inverts the filter frequency control, allowing the filter to “close” when the VCA is
“opening,” and vice versa.
The Ping input allows you to generate the distinctive percussive sounds characteristic of vactrol
filters. Pinging a filter involves sending a short trigger or gate signal to the filter, causing it to
briefly resonate and produce a percussive sound. This technique is often used in modular synthesis
to create drum-like or plucked sounds. The Ping frequency is controlled by the Freq/Amp knob,
offering a wide range of tones from deep kick drums to high-pitched bongos.
The module also features a pre-filter Drive knob, offering a range of sonic textures from subtle
warmth to intense distortion, adding rich harmonic content to your sound.

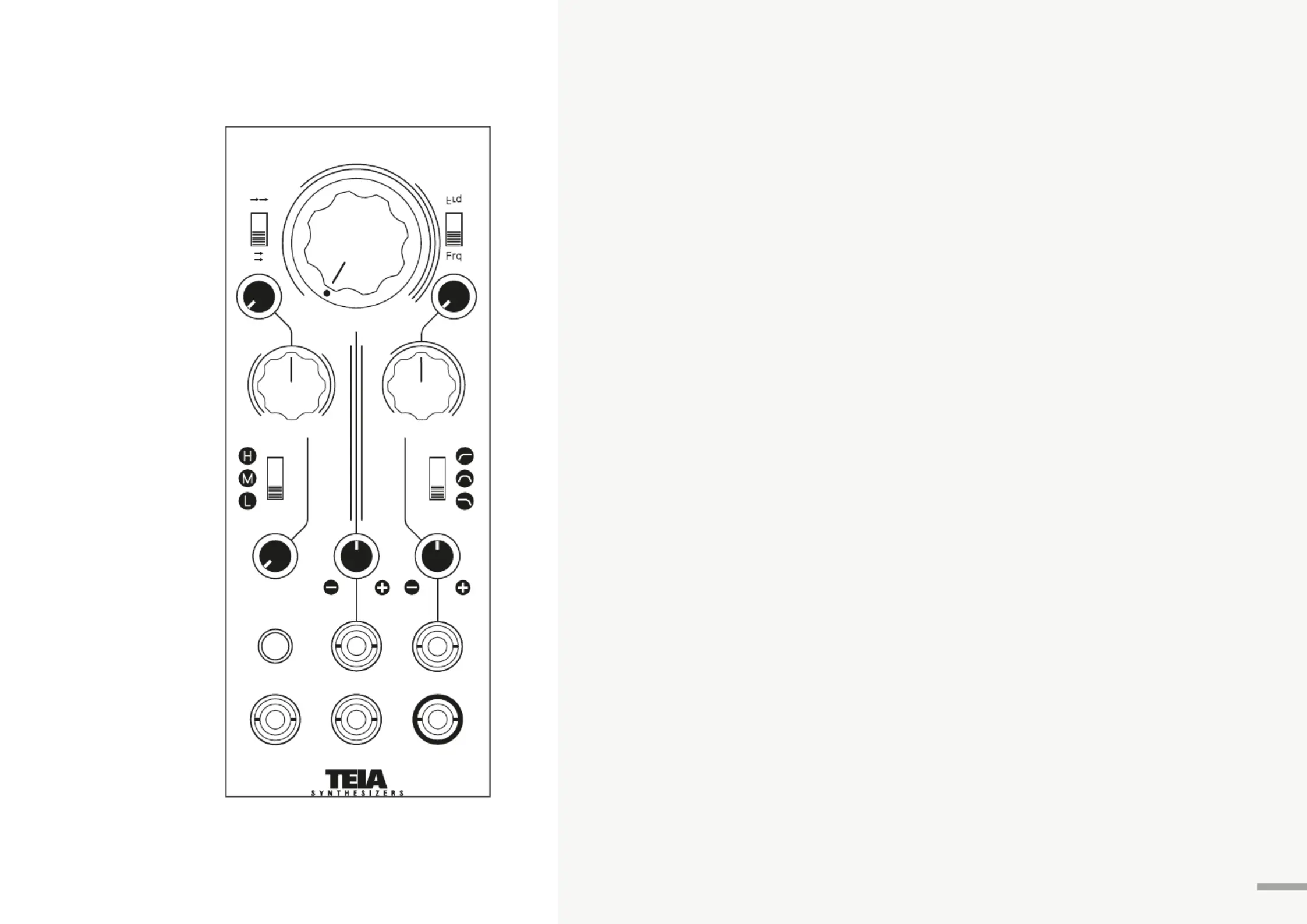

Overview
Drive
Vca Vcf
Freq/Amp
FdBk
Out
Level
In
Resonance
Freq/Amp
Ping
OpticTone
Resonance
2

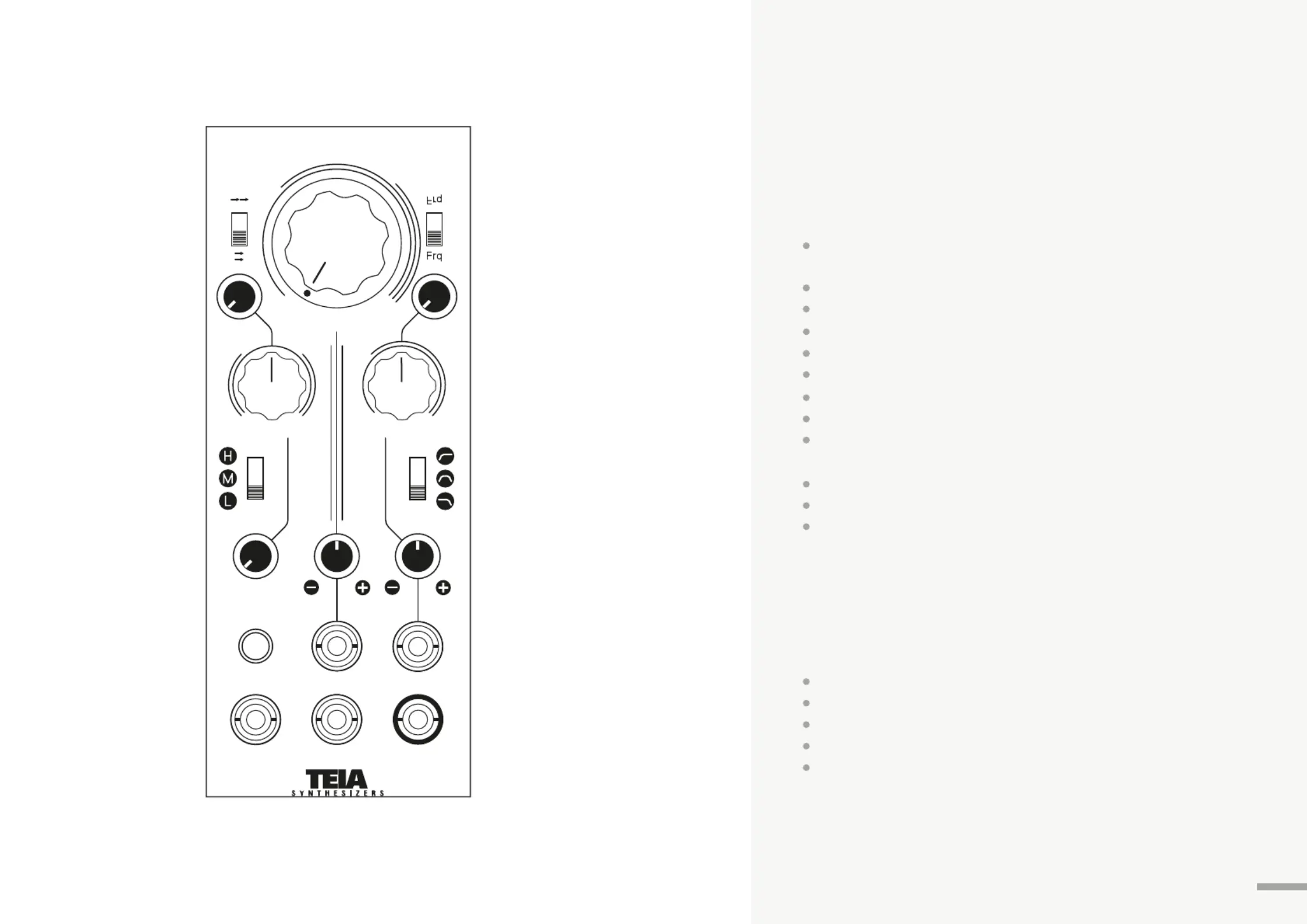

Overview
Vatrol based 12dB multi-mode Voltage Controlled Filter: Lowpass,
Bandpass and Highpass.
Vactrol Based Voltage Controlled Amplifier.
Crossfade knob to mix the VCA and VCF section.
Voltage controlled Resonance.
Improved circuit for Lowpass Gate pluck sounds.
Ping Input for percussive sounds generation.
Filter Range switch.
Switch to set VCA and VCF in Parallel or Series.
Filter Frequency polarity inversion switch. Doesn’t change VCA
polarity.
Overdrive and Feedback controls.
Attenuator/inverter knobs on all voltage controlled inputs
Touch control over Frequency and Amplitude.
Features:
Width: 10 HP
Depth: 33mm
Power consumption: 55mA +12 50mA -12
Eurorack Format
Doepfer power connection
Specs:
Drive
Vca Vcf
Freq/Amp
FdBk
Out
Level
In
Resonance
Freq/Amp
Ping
OpticTone
Resonance
