Quick Start Guide

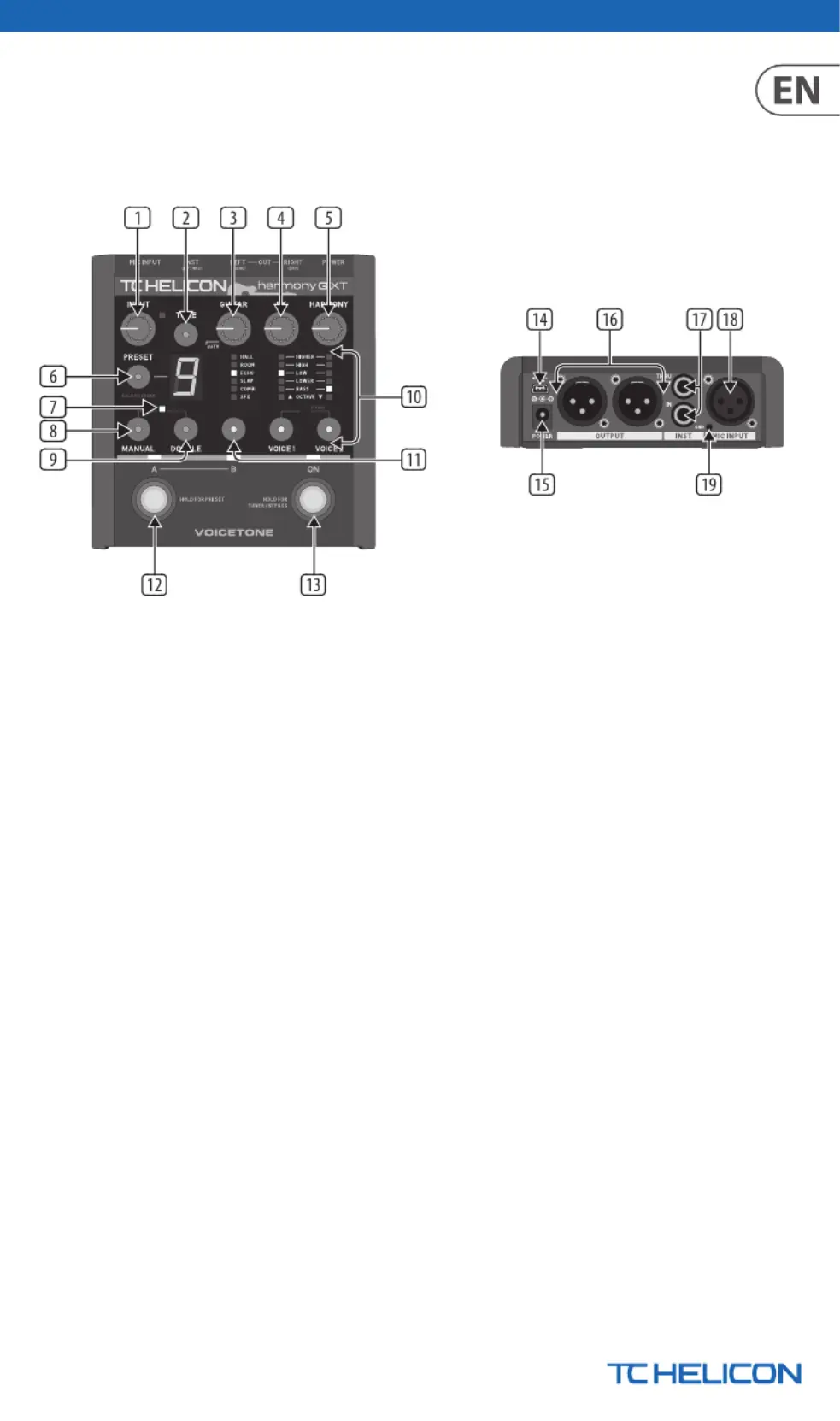

(1) Input knob – Adjust the input gain so that
the adjacent LED lights green while you sing,
and occasionally lights orange during the
loudest peaks.
(2) Tone button – A single press activates
or deactivates AdaptiveTone to make your
voice smoother and brighter, indicated by
a solid LED when engaged. A double click
activates or deactivates auto-chromatic pitch
correction to provide subtle pitch support,
indicated by a periodic ash of the LED when
engaged. When both eects are engaged,
the LED will light solid except for periodically
ashing o.
(3) Guitar knob – Controls the guitar volume
when the THRU jack is not used. The far left
‘Auto’ position automatically balanced your
guitar volume with your voice. Just above the
‘Auto’ setting is an ‘O’ setting that mutes
the guitar.
(4) FX knob – Adjusts the mix level of the eect
selected with the FX button.
(5) Harmony knob – Adjusts the mix level of
the harmony and double eects.
(6) Preset button – Press to cycle through
the 5 presets shown in the display. Hold the
Preset button to save changes made to the
current preset.
(7) 48V LED – Hold the Manual and Double
buttons for 2 seconds to engage phantom
power for use with condenser microphones.
(8) Manual button – Press to allow the guitar
signal to dictate the harmonies. Details of this
function are discussed in the full manual.
(9) Double button – Press to simulate the
sound of two of you singing in unison.
(10) Voice 1/2 buttons – Press either of the
Voice buttons to select a harmony interval.
Details of this function are discussed in the
full manual. Hold both buttons to select
stereo or mono operation.
(11) FX button – Press to cycle through the
available eect styles for the current
preset. When no LEDs are lit, the eects are
bypassed.
VOICETONE HARMONY-G XT
LEGAL DISCLAIMER
Music Tribe accepts no liability for any loss which may be suered by any person who relies either wholly or in part upon
any description, photograph, or statement contained herein. Technical specications, appearances and other information
are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik,
Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera and Coolaudio are trademarks or
registered trademarks of Music Tribe Global Brands Ltd. © Music Tribe Global Brands Ltd. 2019 All rights reserved.
LIMITED WARRANTY
For the applicable warranty terms and conditions and additional information regarding Music Tribe’s Limited Warranty,
please see complete details online at musictribe.com/warranty.
Zhongshan Eurotec Electronics Limited
No. 10 Wanmei Road, South China Modern Chinese Medicine Park, Nanlang Town,
528451, Zhongshan City, Guangdong Province, China
(12) Preset A/B footswitch – Tapping the
footswitch will toggle between the presets
assigned to slot A and B. Hold the footswitch
to enter Preset Select mode for the current
slot (A or B), which allows the footswitch to
cycle through all 5 saved presets.
(13) On/Bypass footswitch – Tapping the
footswitch engages or disengages the
doubling and harmony eects in the current
preset, leaving the reverb/delay eects
active. Holding the footswitch will enter
Tuner/Bypass mode, which mutes the guitar
signal and bypasses all vocal eects except
for Tone.
(14) USB port – Connect to a computer for
rmware updates and support.
(15) Power input – Connect the included power
adapter. (12 V DC, 300 mA, tip negative)
(16) OUTPUTS – Connect to a mixer
via XLR cables.
(17) INST IN/THRU – Connect your guitar to the
IN jack, then connect the THRU to other guitar
pedals or an amplier.
(18) MIC INPUT – Connect your microphone via
XLR cable.
(19) GND – If you hear a buzz when you plug
in a cable from the THRU to your amp or
PA, press this button in. If the THRU jack
is not used and your guitar sound is routed
internally, the Ground Lift switch should be
left out.
Visit tc-helicon.com to download the full manual
