Pagina 1/4

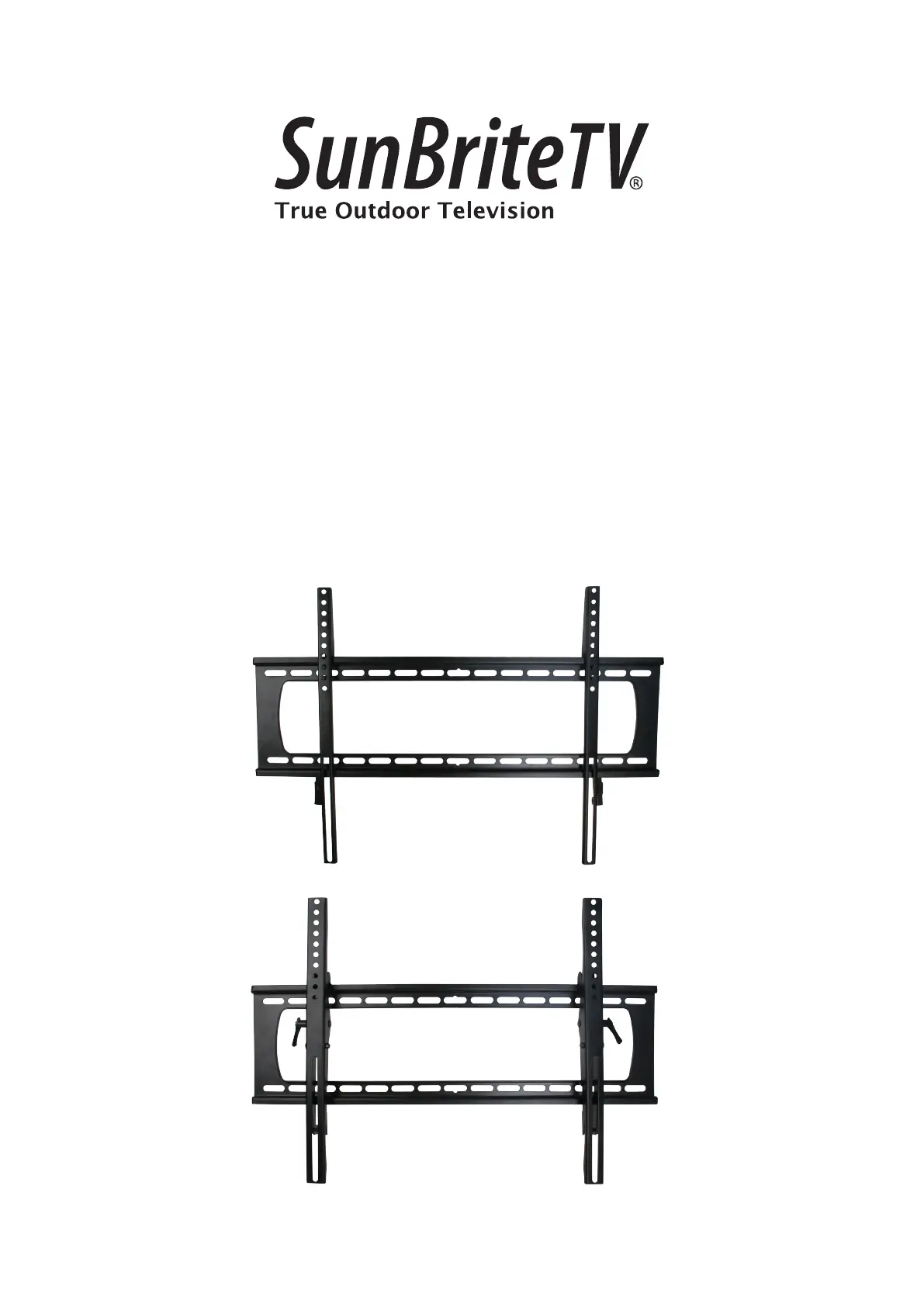

SB-WM-T-XL-BLK / SB-WM-F-XL-BLK
Weatherproof Universal Fixed and Tilt Mount for
Extra-Large TVs
2
WARNINGS:
• Installation by a qualied professional is highly recommended for this product.
• Do not begin installation until you have thoroughly read and understand these instructions.
• This mount supports TVs up to VESA 1000x700, and a maximum load of 250 lbs. (113.6kg).
• Ensure the mounting wall will safely support four times the combined weight of the Mount and TV panel.
• The manufacturer does not accept responsibility for incorrect installation.
SPECIFICATIONS:
• Maximum Load: 250 lbs. (113.6kg)
• Forward Tilt Range: - 8° /+ 13°
• Horizontal Tilt Range: +5°
• Dacromet Coated Assembly
• Stainless Steel Mounting Hardware
BOX CONTENTS:
• Wall Plate (1)
• Arm Left (1)
• Arm Right (1)
TOOLS REQUIRED:
• Power Drill
• 3/8” and 1/4” Drill Bit
• Phillips Head Screw Driver
• Level
• Socket Wrench with 1/2” Socket
head
PACKAGE CONTENTS:
Arms
(With SB-WM-T-XL-BLK)
Wall Plate Arms
(With SB-WM-F-XL-BLK)
HARDWARE KIT:
Hex Key (x1)
M4/M5
Nylon Spacer (x12)
Concrete
Anchor (x6)
M8x63
Lag Bolt (x6)
M6/M8
Nylon Spacer (x12)
Lag Bolt Washer
(x6)
M5 Washer (x16) M8 Washer (x8)
M8x40 Bolt (x4)
Bag 1 (TV Arm Mounting)
Bag 2 (TV Arm Mounting)
Bag 3 (Mount to Wall)
CAUTION:
This wall mount is intended for use only with the maximum weight of 250 lbs (113.6 kg).
M4x10 Bolt (x4)
M5x10 Bolt (x4)
M6x10 Bolt (x4)
M8x10 Bolt (x4)
M4x16 Bolt (x4)
M5x16 Bolt (x4)
M6x16 Bolt (x4)
M8x16 Bolt (x4)
M4x20 Bolt (x4) M4x30 Bolt (x4)
M5x30 Bolt (x4)M5x20 Bolt (x4)
M6x20 Bolt (x4) M6x30 Bolt (x4)
M8x20 Bolt (x4) M8x30 Bolt (x4)
M4x40 Bolt (x4)
M5x40 Bolt (x4)
M6x40 Bolt (x4)
