TWO ZONE SURFACE UNIT

INSTALLATION INSTRUCTION GUIDE

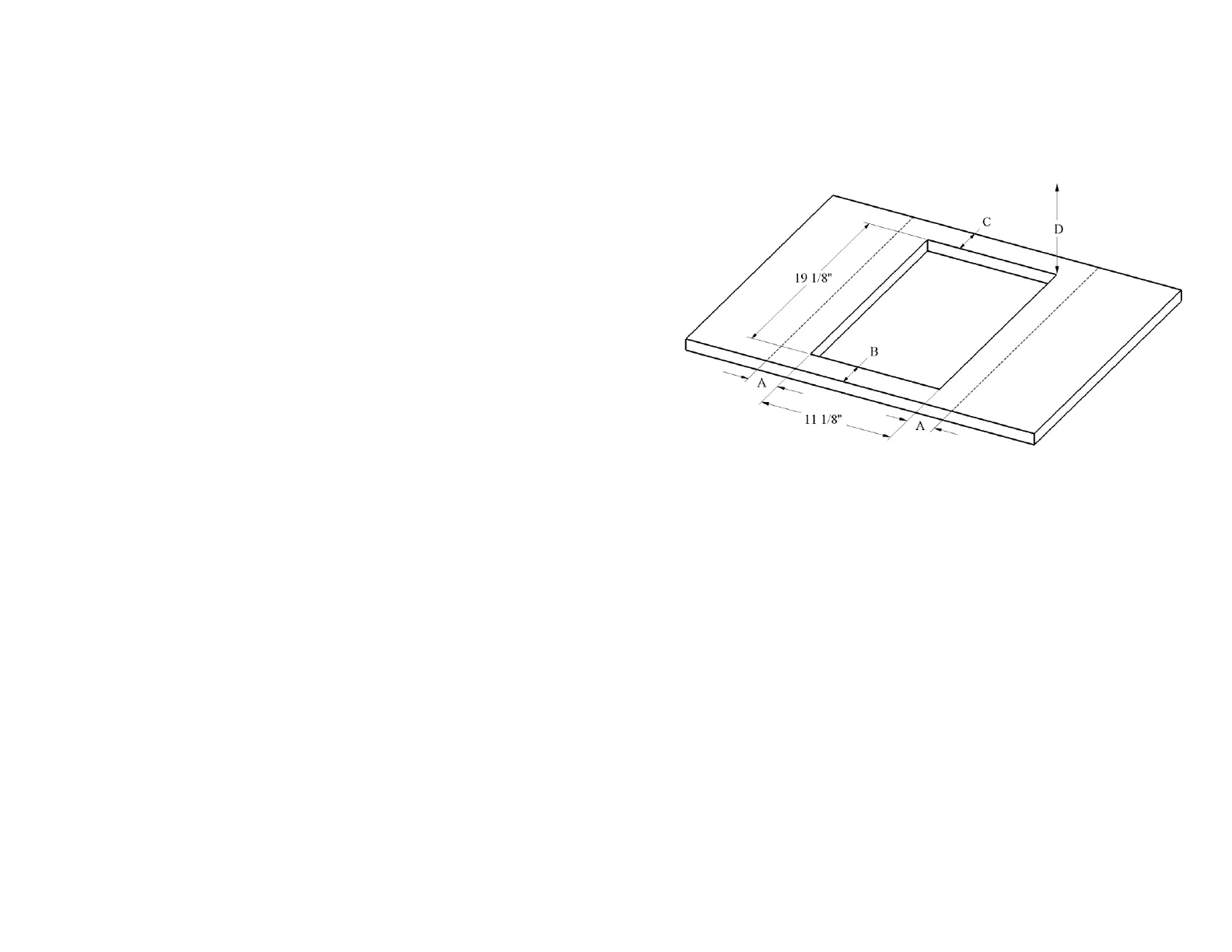

CABINET OPENING

Prepare the cabinet accurately so your unit will fit properly. Below are cabinet cutout

dimensions. The dimensions are for the unit to be mounted so the knobs are toward

the front.

CAUTION:

To eliminate the hazard of reaching over the heated surface units, cabinet storage

space located above the surface units should be avoided. If cabinet storage is to be

provided, the hazard can be reduced by installing a range hood that projects

horizontally a minimum of 5 inches beyond the bottom of the cabinets.

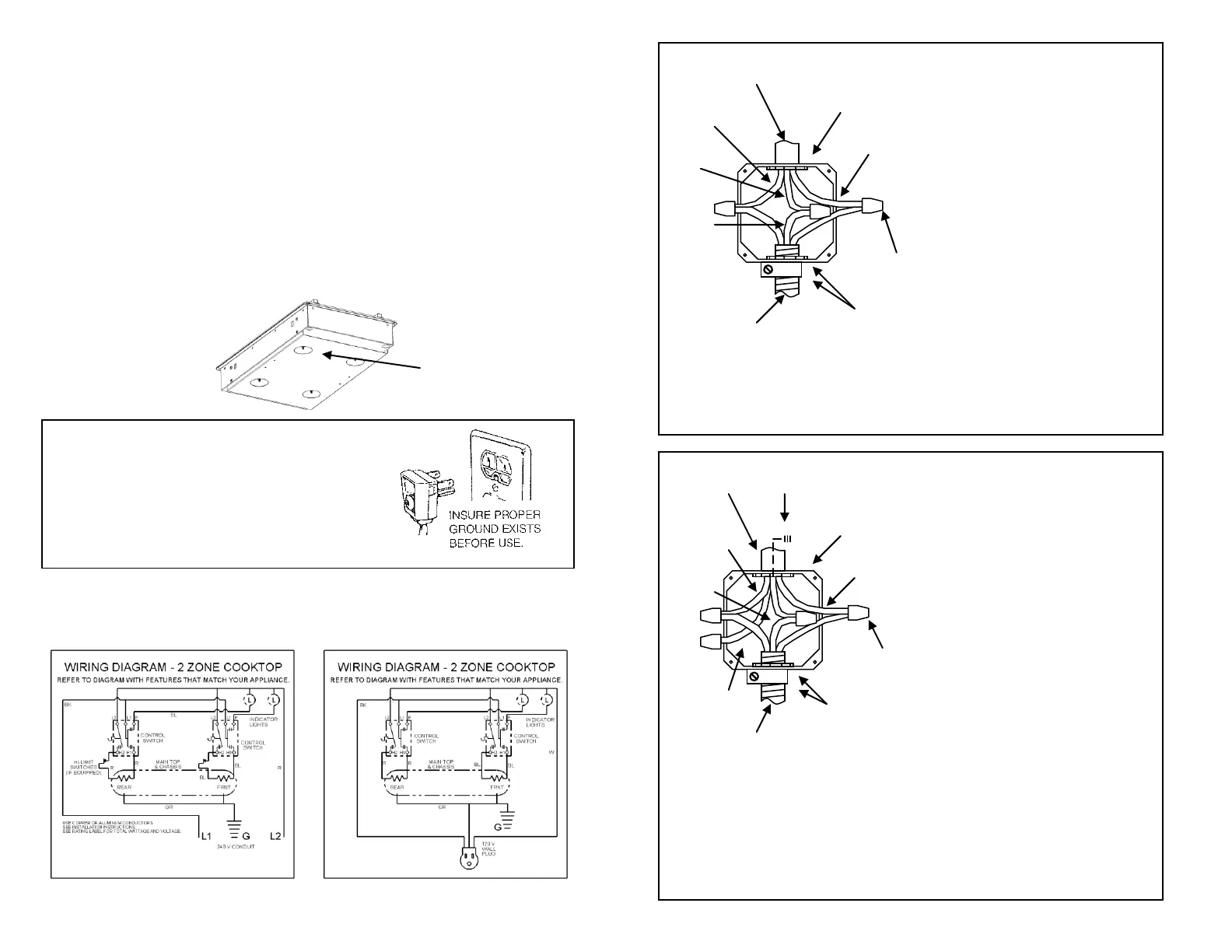

INSTALLATION:

It is the responsibility of your installer to make certain that your range is properly

installed. Situations caused by improper installation are not covered under the

warranty. Any expenses incurred due to such situations will not be paid by the

manufacturer of the appliance.

This unit is intended to be built-in to a cabinet structure only and

is not intended for attachment to the building structure.

CHECK LOCAL CODES

BEFORE MAKING

CONNECTIONS.

“A”: 2

5

/

8

” To Adjacent Vertical Combustible Surface

3

1

/

4

” To Opening for Adjacent Unit

“B” : 2

7

/

16

” Minimum to Front Edge of Counter Top

“C” : 2” Minimum to Rear Edge or Rear Wall

(2

7

/

16

” If Installed In Standard 24” Deep Counter Top)

“D” : 30” Minimum Clearance To Bottom of Unprotected Wood Cabinet

(24” Minimum When Cabinet Bottom is Protected by Not Less Than

1

/

4

” Millboard Covered By Not Less Than No. 28 MSG Sheet Steel,

0.015” Stainless Steel, 0.024” Aluminum, or 0.020” Copper.
