Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: July 7, 2025 4:16 PM

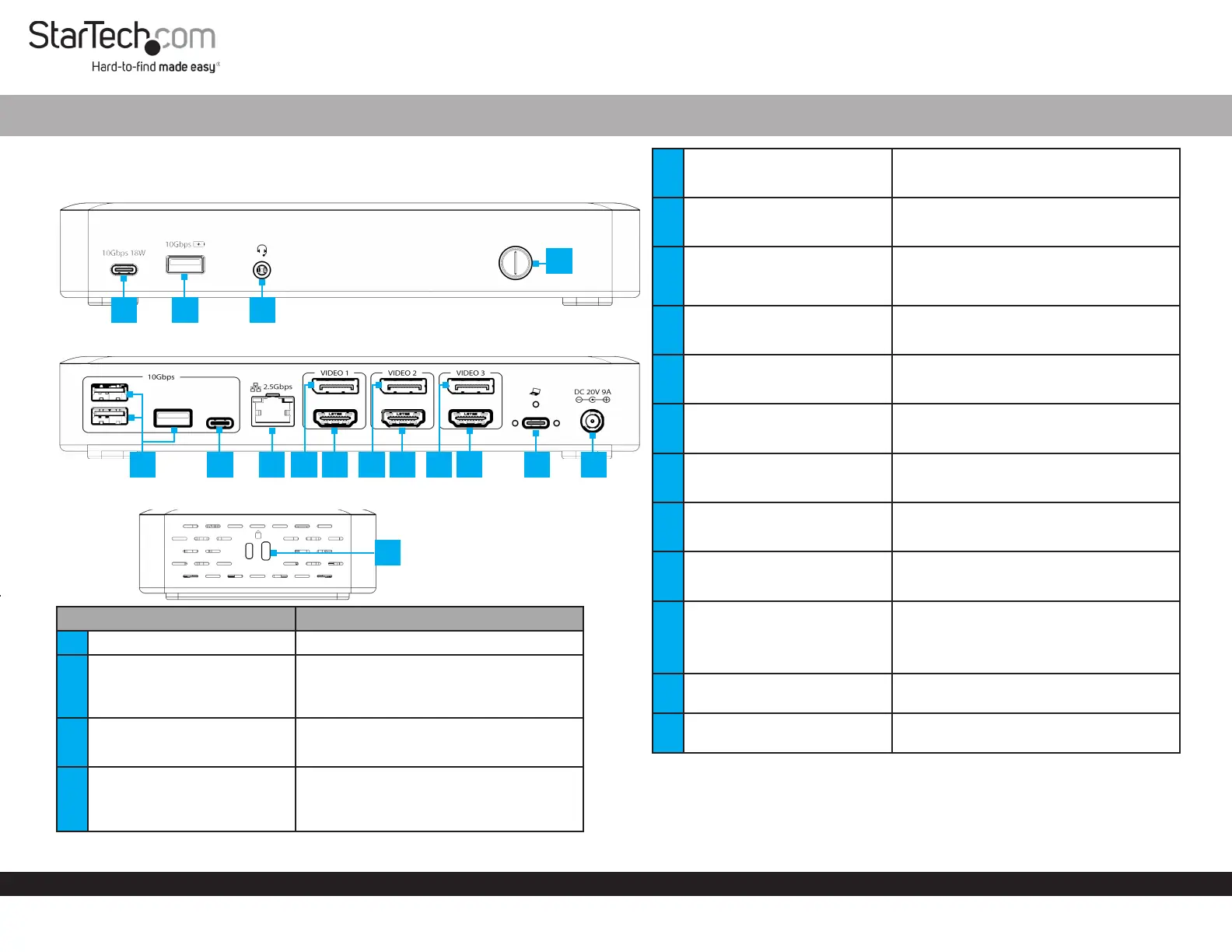

Product Diagram (Side A)

USB4 Dock, Triple Display 4K 60Hz HDMI/DisplayPort, 6x USB, 2.5GbE, 100W PD

1

159

7

2

(Side B)

Product ID

150N-USB4DOCK-TRIPLE / 150UE-USB4DOCKTRIPLE

(Side C)

ComponentFunction

1Power Button

• Press and Release to Toggle Power for the Dock

23.5mm Headset Jack

• Connect a 3.5mm Audio Device

• 4 Position CTIA

• Mono Audio Input

• Stereo Audio Output

3USB-A Data/Charge Port

• Connect and/or Charge a USB-A Peripheral

• USB 3.2 Gen 2 (10 Gbps)

• Supports up to 4.5W (5V/0.9A) of Power

4USB-C Data/Power Port

• Connect a USB-C Peripheral

• USB 3.2 Gen 2 (10 Gbps)

• Supports 18W (5V/3A, 9V/2A) or Power

86

16

34

5

11

10

13

12

5USB-A Data Ports

• Connect USB-A Peripherals

• USB 3.2 Gen 2 (10 Gbps)

• Supports up to 4.5W (5V/0.9A) of Power

6USB-C Data Port

• Connect a USB-C Peripheral

• USB 3.2 Gen 2 (10Gbps)

• Supports up to 7.5W (5V/1.5A) of Power

72.5 Gigabit Ethernet Port

• Connect the Dock to a Network Device, using a

Network Cable

• 2.5GBASE-T

• 10/100/1000/2500Mbps

8Video 1 DisplayPort Port

• Connect a DisplayPort Display as Video Output#1

• Up to 4K 144Hz

• DisplayPort 1.4

9Video 1 HDMI Port

• Connect an HDMI Display as Video Output #1

• Up to 4K 60Hz

• HDMI 2.0

10Video 2 DisplayPort Port

• Connect a DisplayPort Display as Video Output #2

• Up to 4K 144Hz

• DisplayPort 1.4

11Video 2 HDMI Port

• Connect an HDMI Display as Video Output #2

• Up to 4K 60Hz

• HDMI 2.0

12Video 3 DisplayPort Port

• Connect a DisplayPort Display as Video Output #3

• Up to 4K 144Hz

• DisplayPort 1.4

13Video 3 HDMI Port

• Connect an HDMI Display as Video Output #3

• Up to 4K 60Hz

• HDMI 2.0

14

USB4 Host Port

(Screw-Locking, USB Type-C)

• Connect to a USB-C Port on a Host Computer

• USB4 (40 Gbps)

• Power Delivery 3.0 Specication

• Capability of charging the Host Computer up to

100W

15DC 20V Port

• Connect the Dock to a Power Source, using the

Universal Power Adapter

16

2x Lock Slots

(Standard & Nano)

• Connect a K-Slot Style Locking Device to deter

the theft of the Docking Station

14
