Pagina 1/2

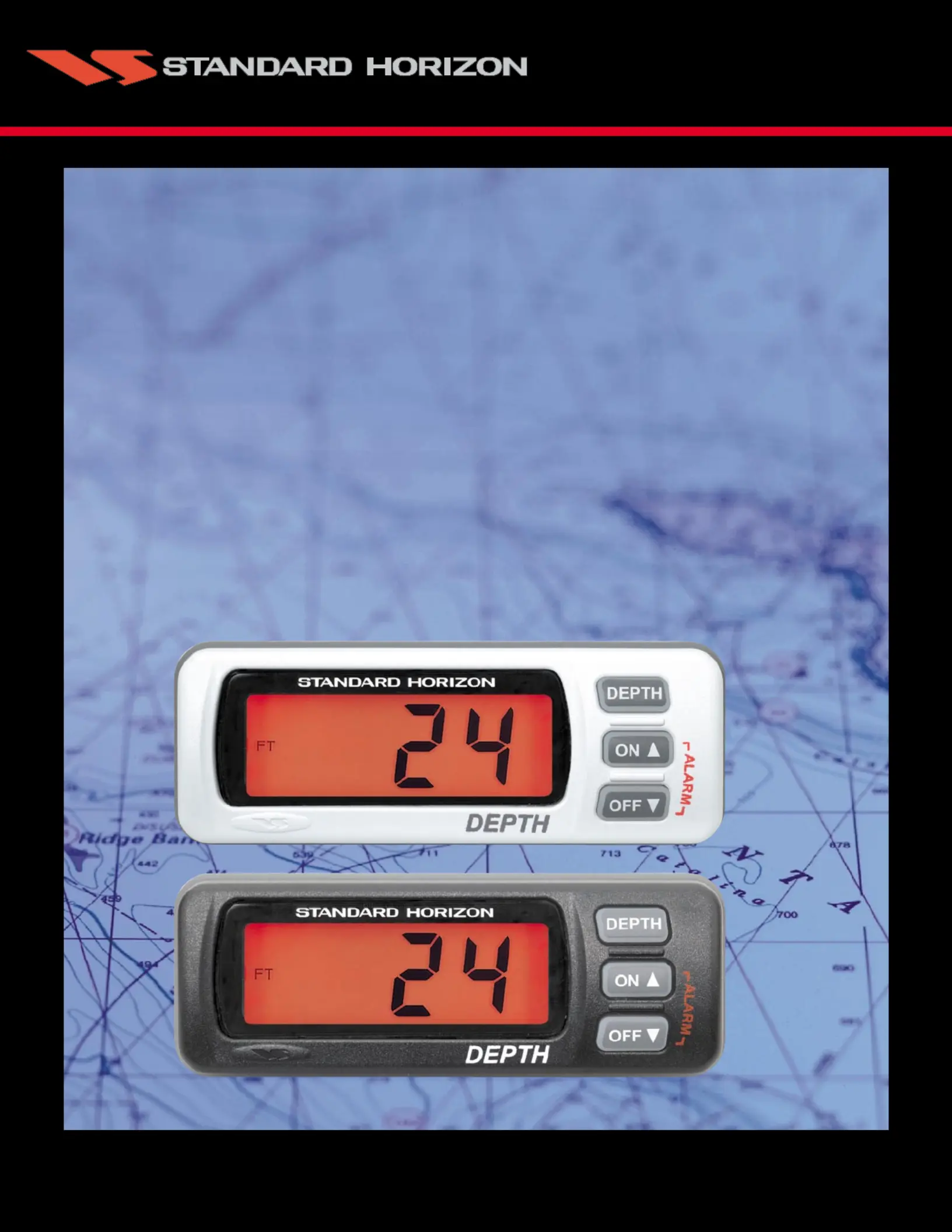

DS35
Digital Depth Sounder
Cosmetically Matched to Other Standard Horizon
Marine Products
Rugged Waterproof Construction
Visual and Audible, Deep Shallow Alarms
Depth Range to 200 Feet or Equivalent
Meters/Fathoms
3 Step Backlighting
Gimbal or Flush Mount
Nothing takes to water like Horizon!
Nothing
Nothing
Nothing
Nothing takes
takes
takes
takes to
to
to
to water
water
water
water like
like
like
like Horizon!
Horizon!
Horizon!
Horizon!
3/16"
3 1/2"
2 7/8"
2"
3 1/2"
3/16"
2 7/8"
2"
5 11/16"
1 1/8"
1 7/8"
1/2"
2.75”
2.125”
13
OPTIONAL DEPTH TRANSDUCER
Size
Mounts
Flush Mount Hole
LCD Character Size
Water Integrity
Operating Voltage
Current Drain
Operating Temperature
Range
Alarms
Prop or Keel offset
4.75”W x 2.25D x 1.75”H
Gimbal Or Flush Included
4.25” x 1.375”
.75”H x .5W
Spray Proof
13.8VDC
70mA
32 to 122 F
200 Feet, equivalent Fathoms
or Meters
Shallow, Deep and Anchor
±20%
±9.9Feet, Fathoms or Meters
INSTRUMENT DIMENSIONS
SPECIFICATIONS
DST50 DST52
DST51
DST55
DST53
FB52
1.75”
44.45
mm
1.38”
35mm
1.38”
35mm
4.75”
120 mm
3.75”
95mm
1”
25.4 mm
1.5”
38.1 mm
Rear case
Front case
DS35
Digital Depth Sounder
Water & Impact Proof
Compact Size
xtra Large DisplayE
The molded, one-piece waterproof front lens and function keys
on the DS35 depth sounder makes it perfect for open cockpit
installations, where rain, spray and a drenching can be expected.
Durable, coated PCBs are securely fastened in a shock tested, non-
corrosive chassis to withstand the pounding instruments will be
subjected to on a foul day.
1 ¾ inches high, 4 ¾ inches wide and only 2 ¼ inches deep
means minimum space is required for the Horizon 35 SERIES
depth sounder.
Visibility is not a problem, with enormous bold digits and
Informational flags on a high contrast background. The DS35 are
easy to see even from a distance.
3 Step Backlighting
Gimbal or Flush Mount
Available in Black or White
Display and keys feature 3 levels of user selectable backlighting
providing crystal-clear viewing and operation in changing light
conditions.
The DS35 come with an easy to install gimbal mount bracket that
permits installation on consoles, dashboards or overheads. The
view angle is bracket adjustable. The DS35 is supplied with a flush
mount bracket.
The DS35 is available in black or white allowing the user to match
individual boat cosmetics.
VHF RADIOS
GPS CHART PLOTTERS
The DS35 is a member of the family of marine electronics from
STANDARD HORIZON that includes:
Marine Division of Vertex Standard
US Headquarters
17210 Edwards Road
Cerritos, CA 90703
Phone 562/404-2700
Fax 562/404-1210
Email: marinesales@vxstdusa.com
Web: www.standardhorizon.com
