PowerExternal ControllerLED LightSpeaker

Contact closure= Green/White

Contact closure= Green

12 V trigger = Blue/White

LED control= Orange/White

LED control = Orange

Left in = White

Left in= Green

Right in= Red

Right in = Black

Power= Brown/White

Power ground= Brown

Cat 5 Wiring

All signal and control wires are located in the signal/hanging cable provided

with the FP unit speaker wires. A Cat 5 cable (blue or gray shield) contains the control and power

wires; audio wires are individual 16-gauge wires in the bundle.

Wiring Instructions

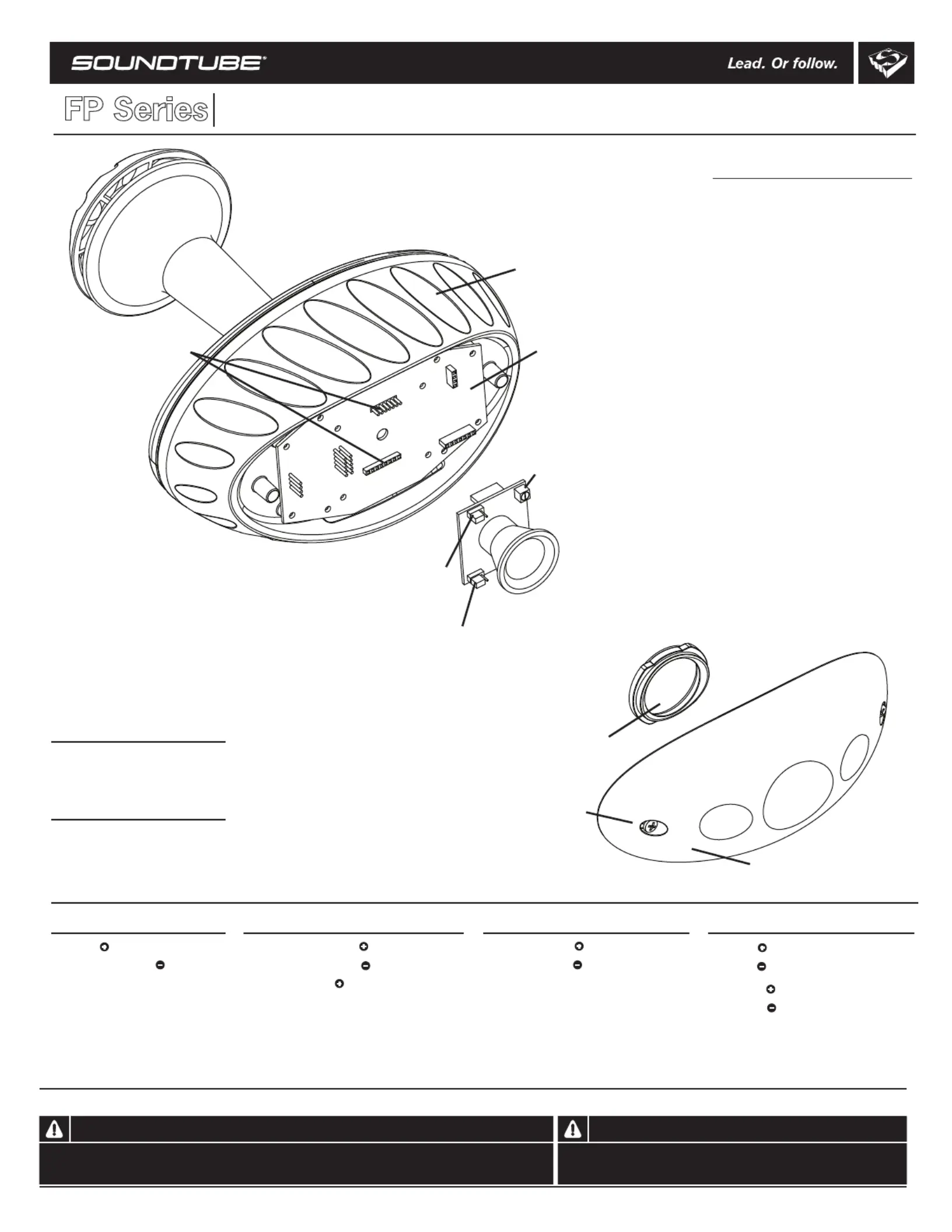

1 FP-Light module

2 Jumpers

Contents

FP pod [2]

Brightness control [6]

Pod cover [1]

Light module

Main electrical board

LED lamp baffle

(ships with light module only)

FP modules ship pre-installed

from the factory.

Other FP Series optional

modules include:

1. FP-Motion

All modules require a power source.

An optional 15-volt source is

available from SoundTube

(Model number: AC-PS-1530)

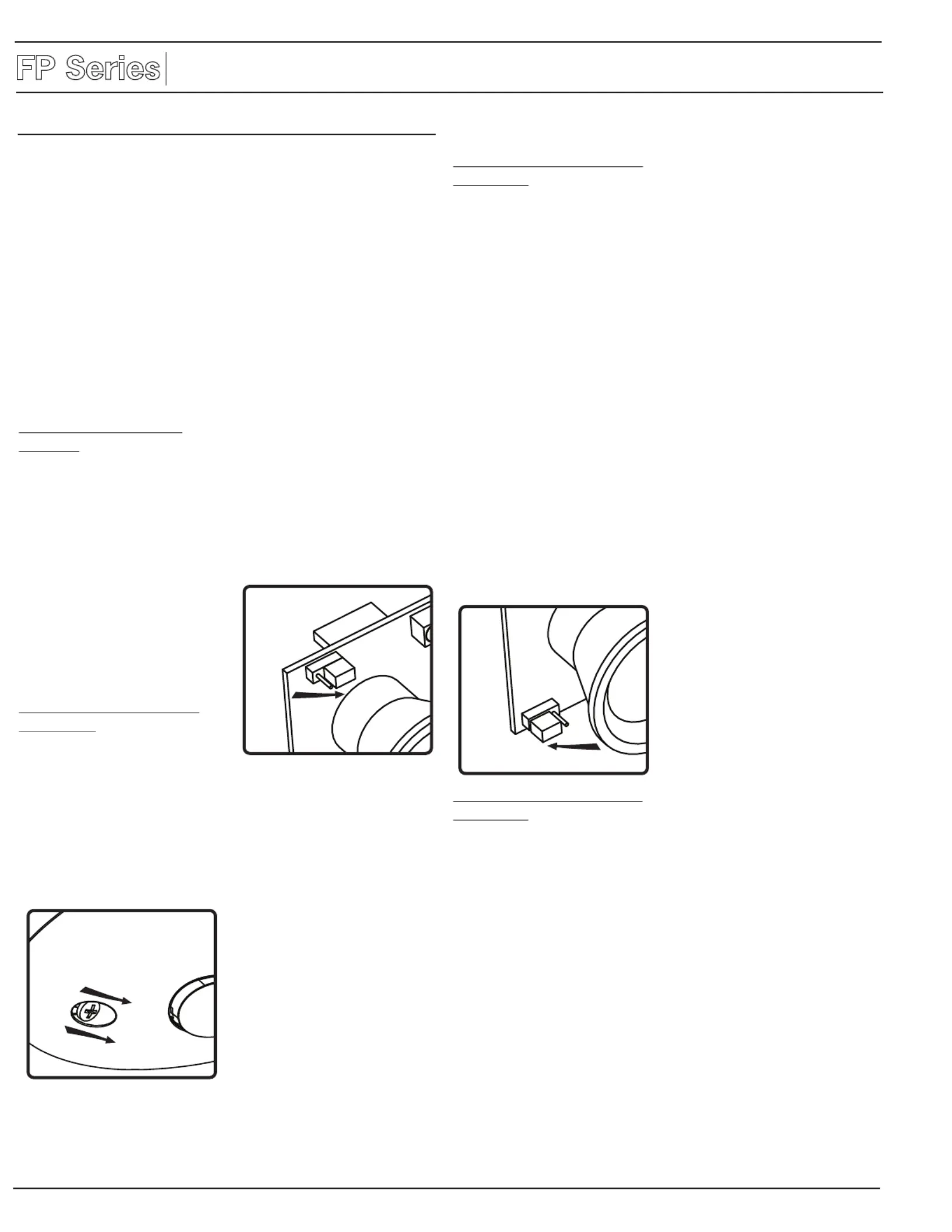

Jumper 4 (J4) external

brightness control [4]

Light connection

Jumper 2 (J2) motion

sensor control [5]

Pod cover screws [3]

FP Series

Do not spec or install speaker near support beam, ventilation duct or

other structure that may interfere with speaker function or dispersion.

Warning

© 2010 SoundTubeEnterta inmt,en Inc. A llrights rerved. se PN IPNS-F-LIGHT Rev.1004.02

Warning

SoundTu s m in a prs srnr. sy r bepeakersustbestalledbyofesionalaudiointalle/cotractoForafetandfo

optimdioperformance,stallermufollowalldiectionsuedSondum au in st rs is by uTubetetaime Enrnnt.

1.435.647.9555 | 800.647.TUBE www.soundtube.com

435.647.9555

|| 800.647.TUBE

www.soundtube.com

Insntall Istrutioncs For:

FP-Light

FP Series
