SS-110 Page, SS-110B & SS-Q-6

OWNER’S MANUAL

© 2021 MSE Audio. Rev. 02.25.2021

360º of the Best Sound Around™

Contact: MSE Audio, 855.663.5600 / 913.663.5600 / [email protected]

Please read the following instructions carefully before installing

your Soundsphere

®

speaker. If you have any questions

regarding installation that are not answered in the following

directions, please contact your local sound contractor or the

Soundsphere

®

/MSE Audio

®

technical support team.

Max Power:

110B: 30 Watts RMS

Q6: 30 Watts RMS

110 Page: 60 Watts RMS

HK Hanging Kit

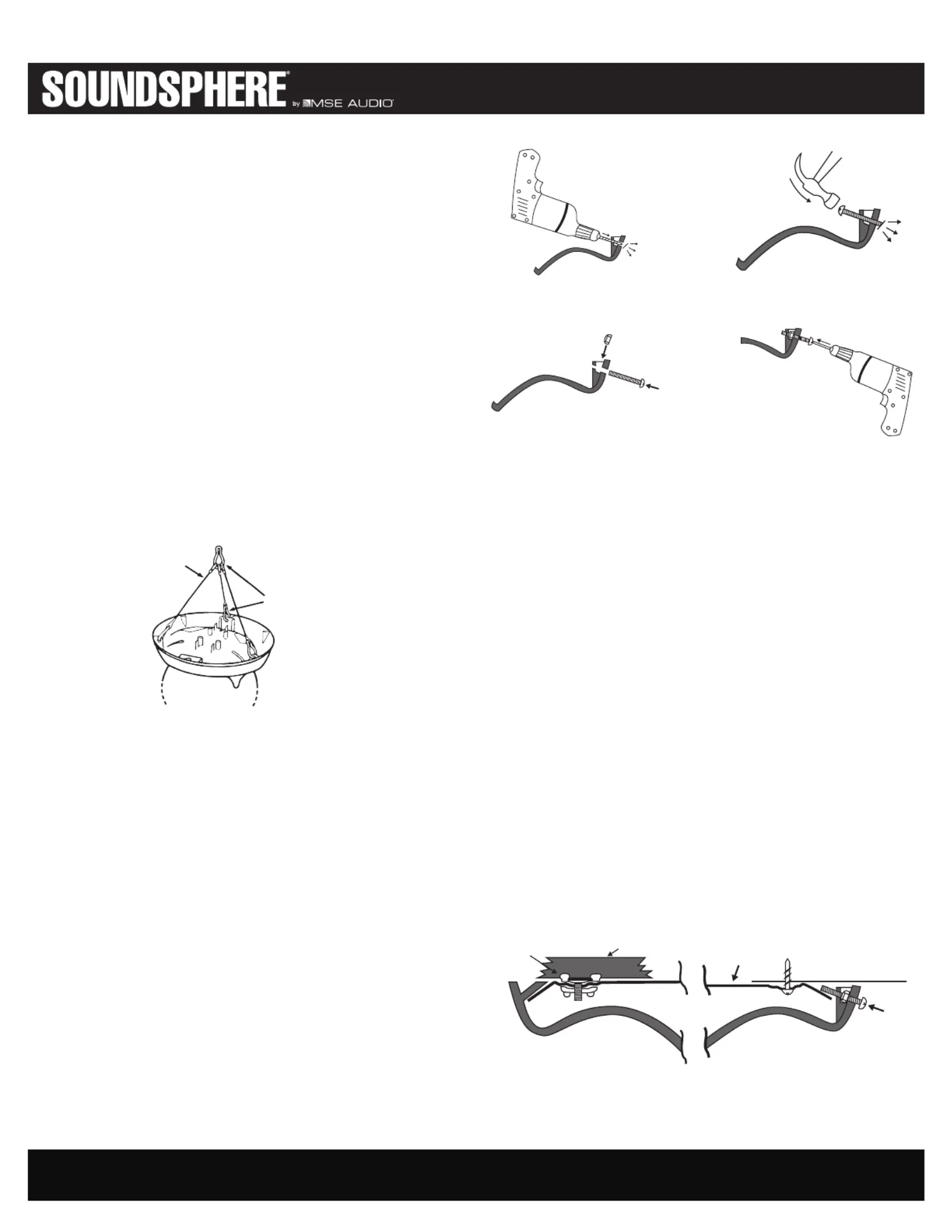

Hang Mounting from Above

The hanging kit is attached when ordered with the speaker from

the factory. If ordered separately, attach as shown in Diagram 1.

a) Hold the main hook above so the wires and 3 hooks will

be straight as they are clipped on the speaker.

b) Insert the spring clips into the bracket holes as shown.

Attach the top clip to the mounting point making sure that

the clips and cable are not twisted.

MBS Mounting Bracket

Preparing the Speaker

The speaker is prepared for use with the MBS mounting bracket

when both are ordered together from the factory. If ordered

separately, prepare the speaker as shown in orDiagram 2

Diagram 3 Diagram 4and .

a) Begin by removing the plastic ashing from the hole in the

reector rim so that the screw can be inserted from the

outside. Flashing can be removed with a 1/4” drill bit

(Diagram 2), or it can easily be punched through using a

hammer (). If using a 1/4” drill bit; be careful not Diagram 3

to remove any material other than the ashing, or the

speaker will not install correctly.

b) Place the stop nut in the pocket as shown in Diagram 4.

Start screw through outside hole, through stop nut

contained in the pocket, and slightly beyond the interior

hole (Diagram 5).

HK

SPRING CLIPS

Diagram 1

Diagram 2

STRIKE FIRMLY

REFLECTOR

KNOCK OUT

FLASHING

Diagram 3

Diagram 4

Diagram 5

Installing the Speaker

The steel bracket is pre-fastened to the ceiling or wall, then the

speaker is placed on the bracket and secured in the following

steps ():Diagram 6, Diagram 7

a) Fasten the bracket in the desired location, making

sure that it is properly and safely mounted.

b) Slide the side of the reector opposite the screw over

one end of the installed bracket.

c) While holding the screw side against the surface, tighten

the screw until the speaker is resting rmly in position.

Suspended Ceiling T-Bar Mounting

Two Caddy Twist Clips and Twist Nuts are provided for connecting

to suspended ceiling T-bars. Please refer to the enclosedCaddy

Clip T-bar mounting instructions for more details ().Diagram 6

a) Place the clips about 8 3/4” apart on the T-bar. Check

to be sure they have snapped on the bar correctly.

b) Slide them into nal position to t through the holes in

the mounting bracket. Tighten the thumb nuts securely.

c) Secure the speaker per , “Installing thesteps b and c

Speaker”.

TWIST CLIP

T-BAR

MOUNTING

BRACKET

CEILING

SCREW IN

REFLECTOR

Diagram 6

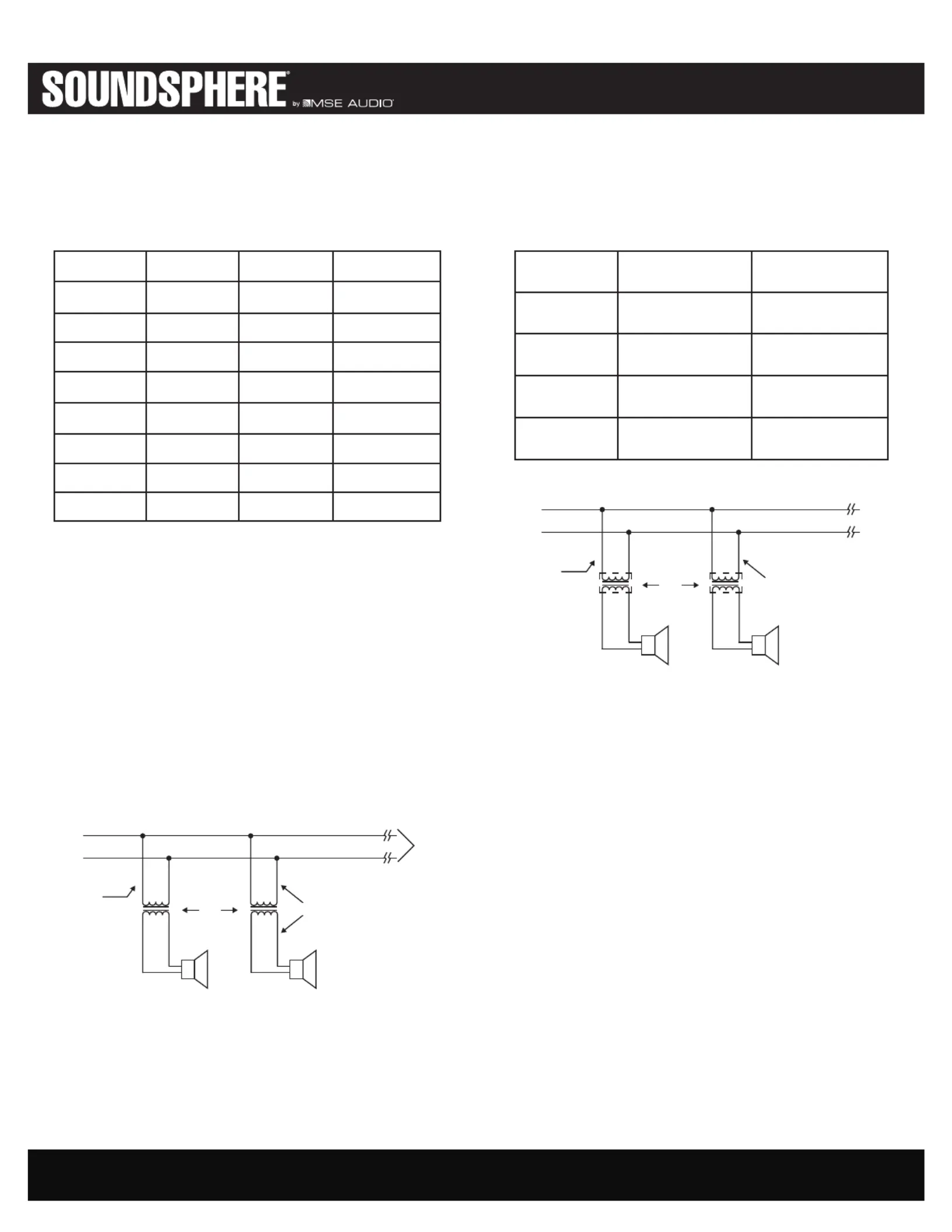

Diagram 7
