Pagina 1/30
46613V001-432002-0-OCE-Rev.

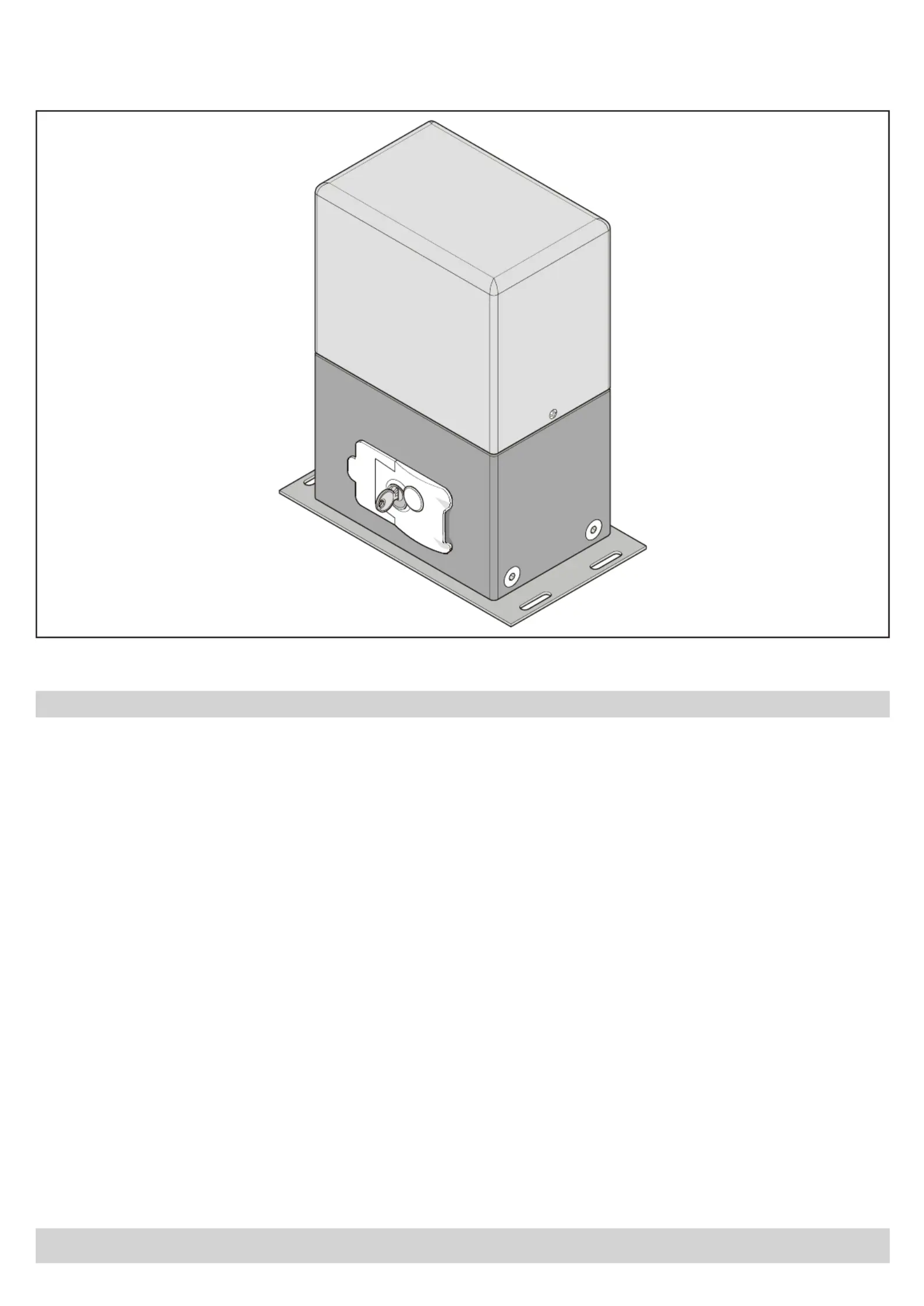

starglider 300
Installation and Operating Instructions 1 - 28
Contents
1
General Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Symbols 2
Safety Instructions 2
Normal Use 2
Permitted Gate Dimensions 3
Technical Data 3
Dimensions 3
Components of Drive System 3
EU Manufacturer’s Declaration 3
General Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety Instructions 4
Tools 4
Specifications 4
Installation tips 5
General Preparation 5
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Safety Instructions 6
Location of Installation 6
Foundation 6
Installation to Ground 6
Mounting of Rack 7
Positioning of Stops 7
Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Safety Instructions 9
Teaching in of Drive 9
Teaching in of Hand-held Drive 9
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Safety Instructions 10
Opening the Gate 10
Closing the Gate 10
Pulse Sequence of Door Movement 10
Reset of Control System 10
Emergency Release 11
Function of Button 2 11
Intermediate Stop 11
Stop Forced by Obstacle 11
Functions and Connections . . . . . . . . . . . . . . . . . . . . . . 12
General Tips 12
Overview Control System 12
DIP Switches 1 - 8 12
Radio Receiver 13
Obstacle Detection (DIP 1, 2 + 3) 14
Automatic Close-mode 14
Warning Time (DIP 5) 15
Fraba System (DIP 6) 15
Seperate Signals for Closing and Opening (DIP 7) 15
Partial Opening (DIP 8) 15
Terminal bar with 24 slots 16
Motor Circuit Board 16
Connection to Power Supply 16
Connection of Push-Buttons 16
Connection of Fraba System 17
Connection of Light Barrier 17
Connection of Safety Contact Strip 17
24 V Connection 17
Connection of Warning Lamps 18
12 V Connection 18
Floating Relay Output 18
Connection of External Antenna 18
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Maintenance and Servicing. . . . . . . . . . . . . . . . . . . . . . . 21
Important Notes 21
Regular Inspection 21
Replacement of Fuses 21
Additional information. . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Disassembly 22
Disposal 22
Warranty and After-Sales Service 22
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Additional Tips for Troubleshooting 24
Spare Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Glossary 26
General Tips
2
Symbols
Warning symbol: Indicates a potential risk. Failure to follow in-
structions may result in serious injury!
Note symbol:
Information, useful advice.
Refers to the relevant illustration in the document.
Safety Instructions
General
• These Installation and Operating Instructions must be read, understood
and observed by all persons installing, operating or maintaining the drive
mechanism.
• Installation, connection and commissioning of the drive mechanism may
only be carried out by qualified specialists.
• The drive system may only be mounted onto properly aligned gates. If in-
stalled in incorrectly aligned gates, there is a risk of serious injury or
damage to the drive system.
• The manufacturer shall not be liable for damages or disruptions due to
non-compliance with the Installation and Operating Instructions.
• Please ensure that the Installation and Operating Instructions are at all
times accessible to all persons operating the gate.
• Observe and comply with the locally applicable accident prevention regu-
lations and EU standards.
• Observe and comply with the directive on “Power-driven Windows, Doors
and Gates - ZH 1/494” issued by the Employers’ Liability Insurance
Association (mandatory for operator in Germany).
• Prior to carrying out any work on the drive system, disconnect it from the
power supply and secure it against inadvertent switching on.
• Only use the manufacturer’s original spare parts, accessories and fixing
material.
Storage
• The drive mechanism may only be stored indoors, in a dry environment
at an ambient temperature of between -20°C and +50°C. • Store drive
system as shown below.
Operation
• The drive mechanism may only be operated if a risk-free force tolerance
has been set. The force tolerance must be set as low as is required to
ensure that the gate’s closing force does not constitute a risk (see sec-
tion “Force settings”).
• Keep your hands clear of the moving gate or any other moving parts.
• Keep children, disabled persons and animals away from the gate.
• Only drive through the gate when it is fully opened.
• There is a risk of injury from being trapped or cut on the gate system’s
moving parts or edges.
(1)1
for Radio Remote Control
• The radio remote control may only be used for equipment and systems in
which defective remote operation of the transmitter or receiver does not
constitute a risk to people, animals or property, or in cases where this risk
is eliminated by means of additional safety facilities.
• The user must be made aware of the fact that the remote control of
equipment with accident risk potential may only occur, if at all, when the
equipment concerned is clearly visible.
• Radio remote control may only be used if movement of the gate can be
supervised and there are no persons or objects in the area of movement.
• Store the hand-held transmitter in such a way that there is no risk of it
being accidentally operated by, for instance, children or animals.
• The operator of this radio-controlled equipment is not in any way protect-
ed against interference from other telecommunication systems and facili-
ties (e.g. other radio-controlled equipment that is licensed to operate at
the same frequency range). Should serious interference be encountered,
please contact your nearest telecommunications office with interference
measuring facilities (radio signal localisation)!
• Do not use hand-held transmitters near locations or installations that are
susceptible to radio interference (e.g. airports, hospitals).
Rating Plate
The rating plate is located on the cover of the control unit housing.
Exact type designation and date of manufacture (month/year) of the drive
are to be found on the rating plate.
Normal Use
• The drive is designed for the exclusive purpose of opening and closing
sliding gates (according to EN 12433-1), hereafter referred to as gates.
Any other use does not constitute normal use. The manufacturer accepts
no liability for damage resulting from use other than normal use. The
user accepts sole responsibility for any risks thereby incurred. Improper
use shall void all warranty.
• Gates operated automatically with a drive must comply with the applica-
ble standards and directives as amended: e.g. EN 12604, EN 12605.The
drive mechanism may only be used, if in a technically perfect condition,
and in compliance with these Installation and Operating Instructions, par-
ticularly regarding correct and responsible use.
• The gate may not be installed at a slope.
• The runner rail must be installed in such a way that water can drain off in
order to prevent the formation of ice in winter.
• Ensure that the gate is sliding smoothly on the rail. Otherwise, the
sensors of the drive system may not detect obstacles and might fail to
halt the gate.
• The gate must be equipped with stops at both the open and closed
position, as it might otherwise be dislocated from the rail in the event of
an emergency release.
• Any defects that may impair the safe operation of the equipment should
be eliminated without delay.
• The gate wings must be stable and warp-proof, i.e. they should not bend
or warp during opening or closing operations.
• The drive mechanism is unable to compensate for any defects in the gate
or incorrect installation.
• Do not operate the drive in areas where there is a risk of explosion.
• Do not operate the drive in rooms where the air contains aggressive
gases.
