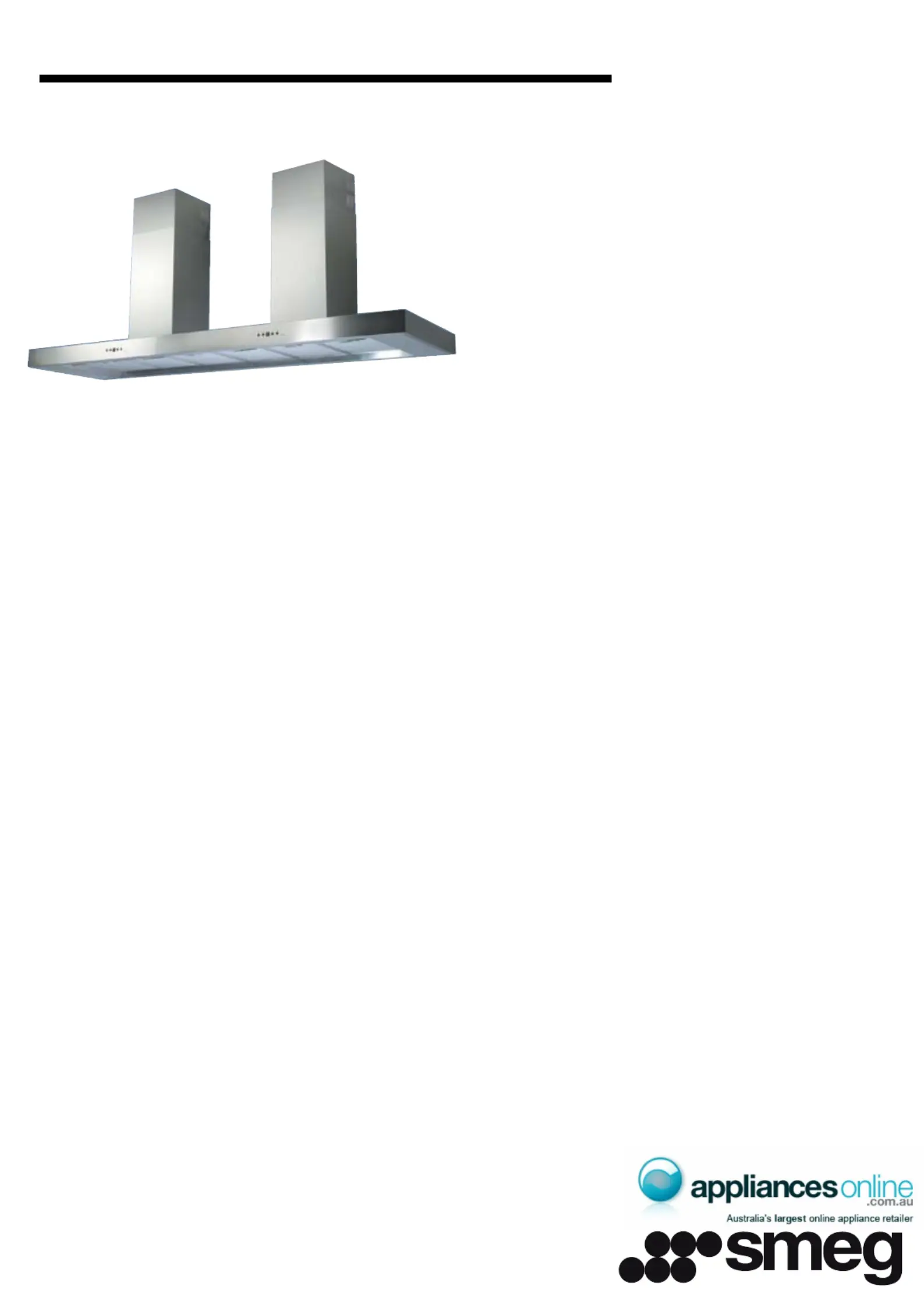

K7088D/180
180cm wall mounted, twin chimney rangehood
ASC — automatic sensor control
dimensions
1 00mmW x 500mmD x 1240mm maximum H8
nish
satin stainless steel
installation
wall mount
motors
2 x 250 watt centrifugal motors —
each motor: twin impellors, double air uptake
air extraction
• duct direct to atmosphere — 150mm diameter ducting required
• recirculate to kitchen — 125mm diameter ducting required
NB: for recirculation, a recirculation diverter kit is supplied for each
chimney
capacity
each half: 750m³/hr net
illumination
4 x 20 watt halogens
noise rating
1 x 38 dBA minimum → 2 x 58 dBA maximum
speeds
four per motor
delay stop
ve minute delay stop selection
controls
four buttons, one LED window
ltration
six removable four-ply stainless steel (washable)
prompts
via LED window ashing —
• ve-minute delay stop
• 30-hour stainless steel lter cleaning prompt
• 120-hour charcoal lter inspection prompt
supplied
• two one-way, non-return buttery valves — removable
• two 150-125mm diameter duct size adaptors
• two recirculation diverter kits
accessory
optional activated charcoal lter for each motor, part number 08999802
warranty
two years on parts and labour
ASC AUTOMATIC SENSING CONTROL
By selecting this button, the K7088D/180 automatically
senses any vapours, smoke and odours caused by the
cooking process and adjusts the speed of extraction
accordingly. The ASC will also sense and capture an
abnormal presence of gas.
DELAY STOP
When cooking is nished, it is recommended that the
rangehood be left running for a few minutes, even at a
lower speed, to pull through all residual heat, grime and
odours. Selecting the DELAY STOP eliminates the need
to return to the rangehood to turn it off manually. It will
also turn off the lights if they were previously left on.
FILTER INSPECTION PROMPTS
After 30 hours of use, the LED window will visually prompt
for you to inspect the ve stainless steel grease lters
for possible washing. The cleaner the lters, the more
effective is the airow. The controls are simply reset to
zero hours and the counting starts over. The lters can
be cleaned at any time, without waiting for the prompt.
After 120 hours of operation, there is an additional
prompt to check the charcoal lters if they have been
tted for the recirculation mode.
DUCTING TO ATMOSPHERE
Extracting the air direct to atmosphere ensures the
maximum removal of grease/oil/particle-laden vapour,
odours and, very importantly, the heat — resulting in
a cleaner, more comfortable cooking environment.
An internal ducting pipe could, ideally, continue in a
straight line within the decorative ue to the kitchen
roof, then through the roof cavity and exit via a roof
cowl. If the rangehood is mounted against an external
wall, the ducting could, as effectively, exit at the rear
anywhere along the vertical line of the concealing
decorative ue and at a position that is structurally
feasible for an external wall cowl.
RECIRCULATION
When the cooking vapours cannot be ducted to
atmosphere, that is, the rangehood is mounted on an
internal wall and/or there is another storey above, the
supplied recirculation kit is inserted into the telescopic
ue. An activated charcoal lter can be tted below the
centrifugal motor. This will effectively diminish cooking
odours. The charcoal lter is not to be washed and is
replaceable.
DUCTING MATERIAL
The smooth internal walls of either galvanised sheet
metal piping or high temperature-resistant PVC will assist
in both greater unobstructed air ow and a quieter
operation. Flexible ducting can be considered for the
very short run and difcult obtuse bends.
CHARCOAL FILTER
In the recirculation mode, the rangehood is also sending
the cooking odours back into the kitchen. An activated
charcoal lter panel, part number 08999802, can be
inserted just below the motor housing to effectively
diminish the cooking odours. This charcoal lter is not to
be washed; however, it is replaceable.
ID010708
code K7088D180
WARNING: technical specications and product sizes can be varied by the manufacturer without notice. Cutouts
for appliances should only be by physical product measurements. The above information is indicative only.
NB: drawings are not to scale — they are to assist only
electricity supply
240 volt, 50 Hz
electrical connection
each chimney: independent 1.5 metre power
cord for connection to standard 10 amp GPO
wattage
motors: 2 x 250 watt each
lights: 4 x 20 watt halogens
total: 580 watts
current
2.42 amps total
packaged dimensions
gross weight
net weight
supplied
• instructions for installation, operation and
maintenance
• 2 x one-way buttery valves for optional
tment to air exit apertures
• 2 x 150mm/125mm diameter duct adaptors
NB: recirculation requires 125mm diameter
ducting, direct ducting requires 150mm diameter
ducting
• xing screws
optional
2 x activated charcoal lters (replaceable),
individual part number 08999802
SPEED 1 2 3 4
net air capacity m
3
/hr 2 x 300 2 x 470 2 x 630 2 x 750
pressure mm H
2
0 2 x 36 2 x 42 2 x 45 2 x 46
input wattage 2 x 120 2 x 150 2 x 2502 x 190
noise level dBA 2 x 38 2 x 48 2 x 54 2 x 58
K7088D/180
180cm wall mounted, twin chimney rangehood
ASC — automatic sensor control
ID010708
code K7088D180

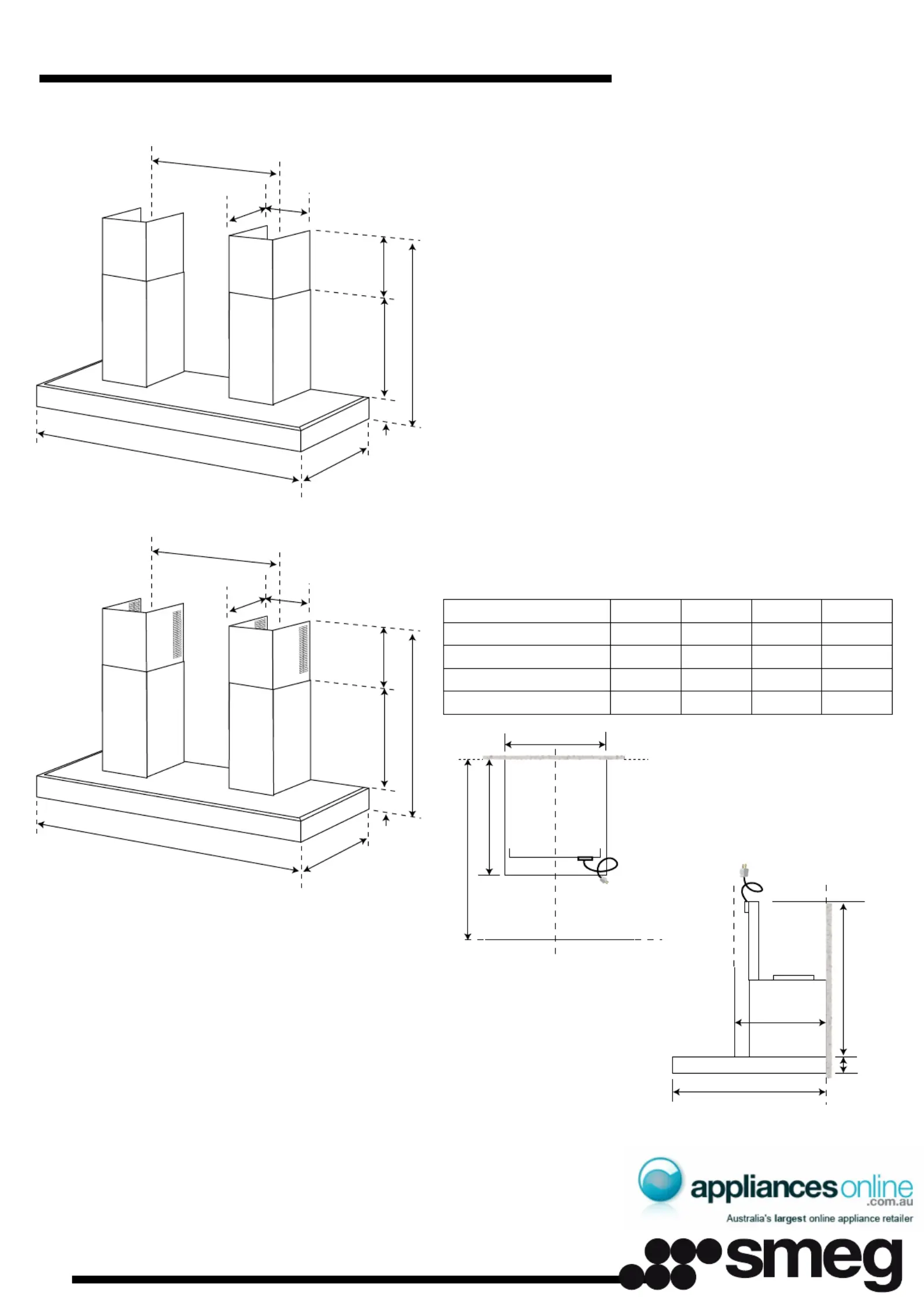

direct ducting to atmosphere
recirculation
Please note the difference in maximum heights between the
‘ ’ installation and the ‘ ’ direct duct to atmosphere recirculation
installation. The recirculation installation’s maximum height
is 1240mm due to the active recirculation vents necessarily
being exposed on each side of each chimney. The ‘direct
duct to atmosphere’ installation shows the now redundant
recirculation vents being concealed by the lower chimney
piece by the reversing — that is, turning the upper chimney
piece 180 degrees on the vertical.
If higher chimney heights are required for the ‘direct duct to
atmosphere’ installation, that is, up to 1240mm, simply follow
the ‘recirculation’ installation and have the recirculation vents
exposed, though redundant.
540
80
1800
min 700 - max 1050
min 80
max 430
750
278
253
500
540
80
1800
min 820 - max 1240
min 200
max 610
750
278
253
500
1.5 metre
power cord
253
278
500
PLAN DETAIL — electrical connection
each chimney
500
front
1.5 metre
power cord
278
80
475
RIGHT-HAND SIDE ELEVATION DETAIL
— electrical connection
