SM-UHX-2D

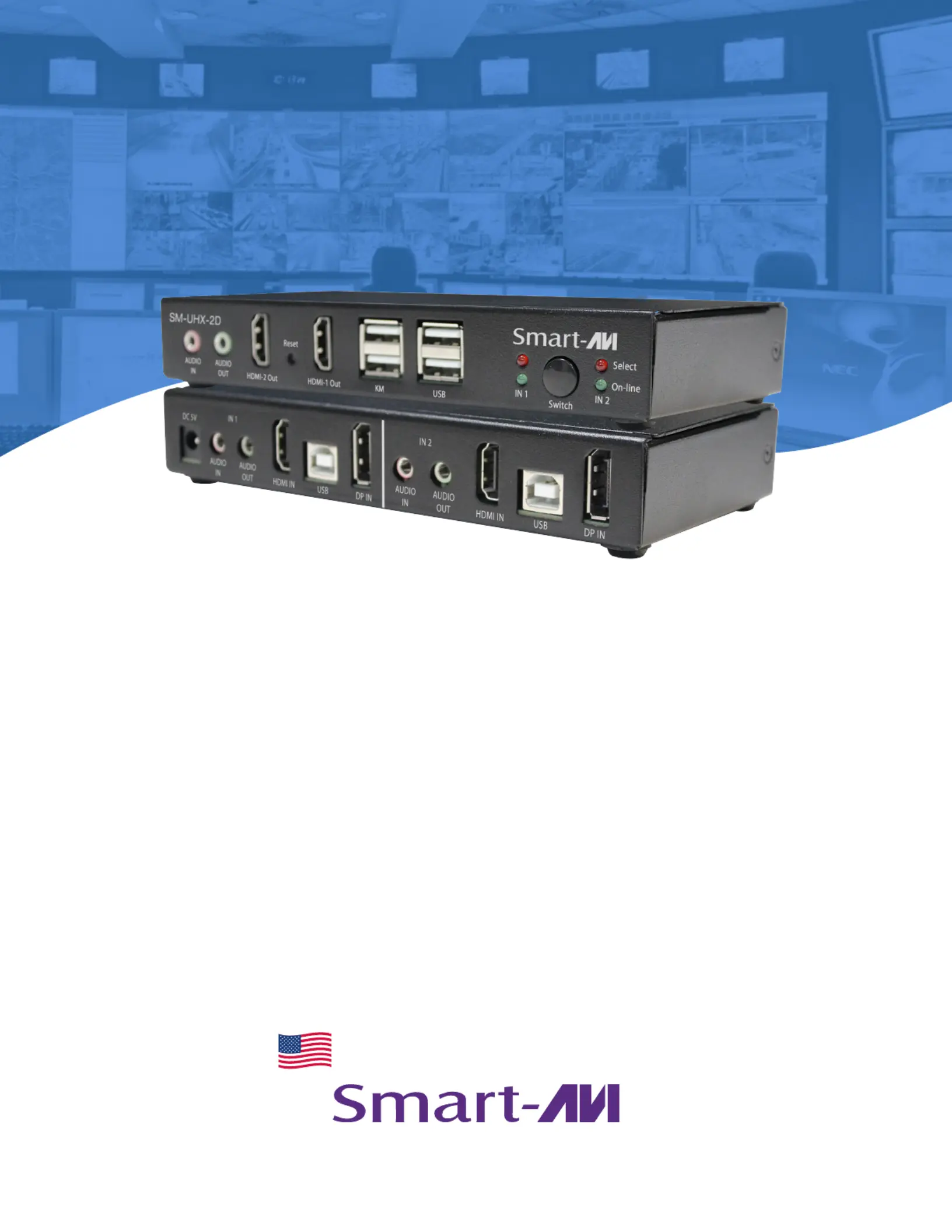

2-Port Dual Head DP/HDMI to HDMI KVM Switch

Designed and Manufactured in the USA

1-800-284-2131

www.smartavi.com

USER MANUAL

2-Port 4K HDMI Dual-head KVM Switch 2

OVERVIEW

INTRODUCTION______________________________________________________________________________

FEATURES___________________________________________________________________________________

TECHNICAL SPECIFICATIONS________________________________________________________________

HARDWARE DESCRIPTION__________________________________________________________________

INSTALLATION_______________________________________________________________________________

OPERATION__________________________________________________________________________________

TROUBLESHOOTING_________________________________________________________________________

TECHNICAL SUPPORT________________________________________________________________________

LIMITED WARRANTY STATEMENT____________________________________________________________

2-Port 4K HDMI Dual-head KVM Switch 3

SYSTEM

Console Port

(2) HDMI female for output

(2) USB Type A female for HID devices

(2) USB Type A female for USB 2.0 hub

(2) 3.5-mm audio phone jack

PC Port

(2) HDMI female for input

(2) DisplayPort female for input (Dual-head)

(2) USB Type B female

(4) 3.5-mm audio phone jack

Other: 2.1-mm barrel plug for power

Console x PC 1 x 2

PC Port switch interface 1 x push buon

LED interface Clock frequency beyond 165Mpix/second

Format To show PC port selecon status and connecon status

Dimension 6.57”W x 3.31”D x 1.26”H (16.7 x 8.4 x 3.2 cm)

Weight 0.200 kg (Single-head); 0.227 kg (Dual-head)

Power Supply Input: 100-240 VAC, 50/60Hz, 0.4A; Output: 5V, 2A

Storage Temperature -20°C ~ 60°C

Operang Humidity 0% ~ 80% RH

introduction

features

technical specifications

The SM-UHX-2D KVM Switch allows the control of two computers with 4K dual HDMI video output

via a single console set of USB keyboard/mouse/hub, microphone, speaker and display.

The SM-UHX-2D KVM Switch has the built-in USB 2.0 compliant and 3.5mm mini stereo ports allow

sharing USB keyboard/mouse/hub, speaker, and microphone among the connected computers. The

switching between the connected computers is executed by using the front panel push-buon and

keyboard hotkey commands. Product set-up is quick and simple with no soware to install, so you’re

ready to go right out of the box.

• Control two computers via one USB console

• Support the computer with resoluon up to 4K UHD (3840 x 2160 @ 60 Hz) dual-head HDMI

video output

• HDMI 2.0 & HDCP 2.2 compliant

• DisplayPort 1.2 compliant

• Execute switching exibly & easily

• Computers and devices can be unplugged and re-plugged without having to shut down the KVM

switch

• Indicates the connected computers’ statuses clearly

• Control the computer conveniently & easily

• Support for a variety of USB peripherals

• Support the computer’s audio line in/out

• Requires no soware installaon

Product specificaties

Merk:	Smart-AVI
Categorie:	Niet gecategoriseerd
Model:	SM-UHX-2D
Kleur van het product:	Zwart
Gewicht:	200 g
Breedte:	167 mm
Diepte:	84 mm
Hoogte:	32 mm
LED-indicatoren:	Ja
AC-adapterfrequentie:	50/60 Hz
AC-adapter ingangsspanning:	100-240 V
Maximum resolutie:	3840 x 2160 Pixels
Aantal HDMI-poorten:	4
HDCP:	Ja
Maximale refresh snelheid:	60 Hz
Aansluiting voor netstroomadapter:	Ja
HDMI versie:	2.0
Aantal DisplayPorts:	2
Temperatuur bij opslag:	-20 - 60 °C
AC-adapter, uitgangsspanning:	5 V
AC-adapter, uitgangsstroom:	2 A
HDMI in:	2
HDCP versie:	2.2
Aantal HDMI-uitgangen:	2
Aansluiting video:	HDMI/DisplayPort
Relatieve vochtigheid in bedrijf (V-V):	0 - 80 procent
Ingangsstroom AC-adapter:	0.4 A
3,5 mm in:	Ja
3,5 mm-uitgang:	Ja
USB-poorttype:	USB Type-A/USB Type-B
