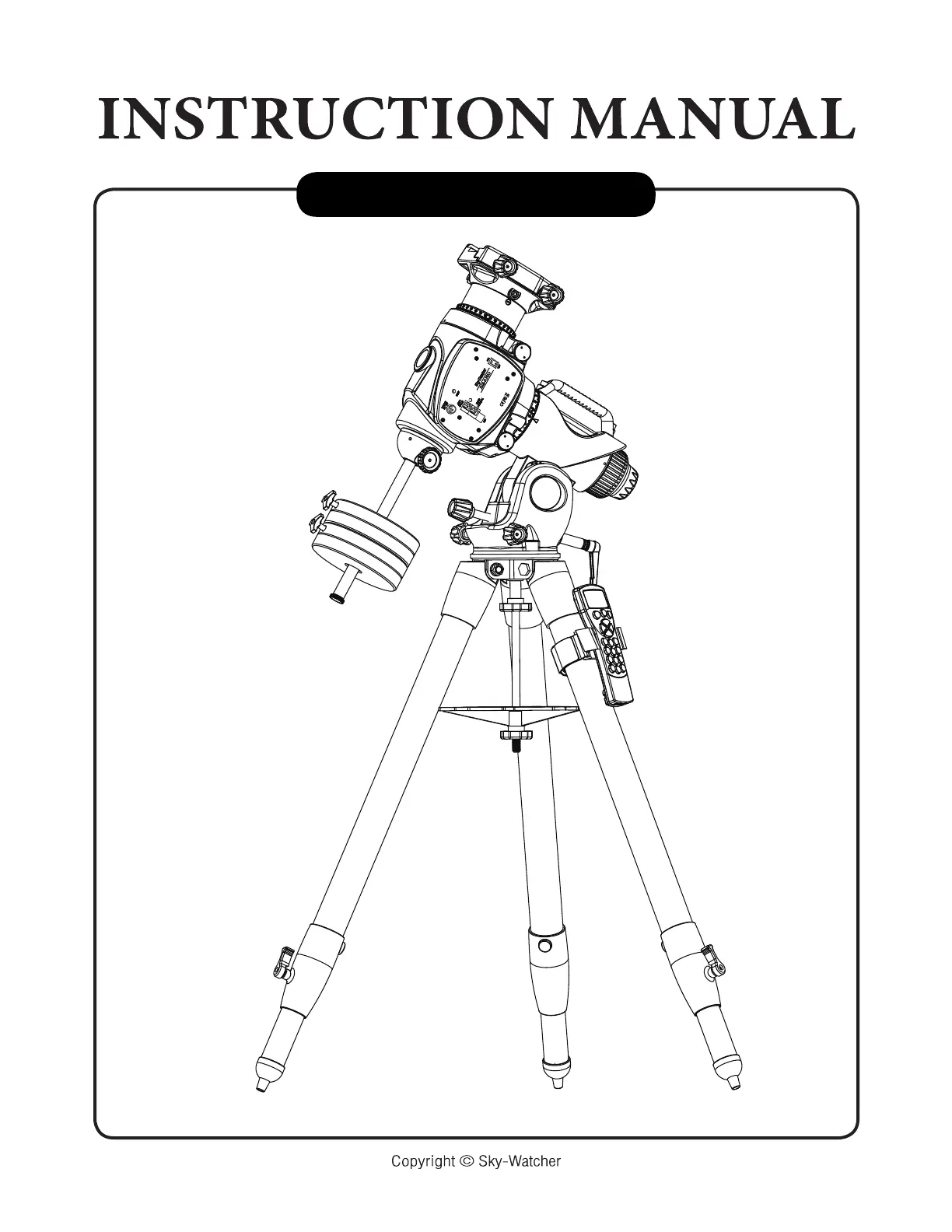

EQ6-R-S-201218V1-EN
2
CONTENT
1.1 Setting Up the Tripod ...............................................................................................3
1.2 Putting On the EQ6-R Mount ............................................................................3
1.3 Attaching the Accessory Tray and the Hand Controller Holder ...............................4
1.4 Installing the Counterweights ..................................................................................5
1.5 Installing the Telescope ...........................................................................................5
1.6 Balancing the Mount ................................................................................................6
2.1 Manually Rotating the Mount ..................................................................................7
2.2 Using the Dials ........................................................................................................7
2.3 Adjusting the R.A. Axis’s Elevation and Azimuth ....................................................8
3.1 Preparation ........................................................................................................... 9
3.2 Alignment ..............................................................................................................10
3.3 The Orientation of the Polaris ................................................................................11
3.4 Align the Polar Scope ...........................................................................................11
4.1 Control Panel ........................................................................................................13
4.2 Panel Interface Components ................................................................................13
4.3 Pinout of the Interfaces .........................................................................................14
4.4 Power Supply Requirements .................................................................................14
5.1 Permanent Periodic Error Correction ....................................................................15
5.2 Batch Exposures Function ....................................................................................15
5.3 SynScan Telescope Control System ......................................................................15
Dimensions ..................................................................................................................16
Speciîš¿cations ...............................................................................................................16
Note: The 1 2 3 signs on the diagrams are related to the Chapter Steps 1. 2. 3. not
3
1. Fully expand the tripod legs on level ground.
2. Locate the locking clamps on the legs and turn counter-clockwise to unlock them to extend
the tripod legs.
3. Extend the legs to desired height, make sure the tripod top is level and then lock the
clamps.
1.1 Setting Up the Tripod
1.2 Putting On the EQ6-R Mount
Fig. 1.1
1. Loosen the two azimuth adjustment knobs on the EQ6-R mount until there is sufîš¿cient
space between the two knob screws. (Fig. 1.2a)
Fig. 1.2a
Fig. 1.2b
1
3
2
clamp
Azimuth Adjustment Knobs
*
Dowel
Primary
locking shaft
