Skar Audio RP-75.4ABM Handleiding
Skar Audio
Receiver
RP-75.4ABM
Bekijk gratis de handleiding van Skar Audio RP-75.4ABM (8 pagina’s), behorend tot de categorie Receiver. Deze gids werd als nuttig beoordeeld door 16 mensen en kreeg gemiddeld 4.8 sterren uit 8.5 reviews. Heb je een vraag over Skar Audio RP-75.4ABM of wil je andere gebruikers van dit product iets vragen? Stel een vraag
Pagina 1/8
rp-800.1dm
rp-1500.1dm
rp-75.4abm
rp-150.4abm
high performance marine amplifier

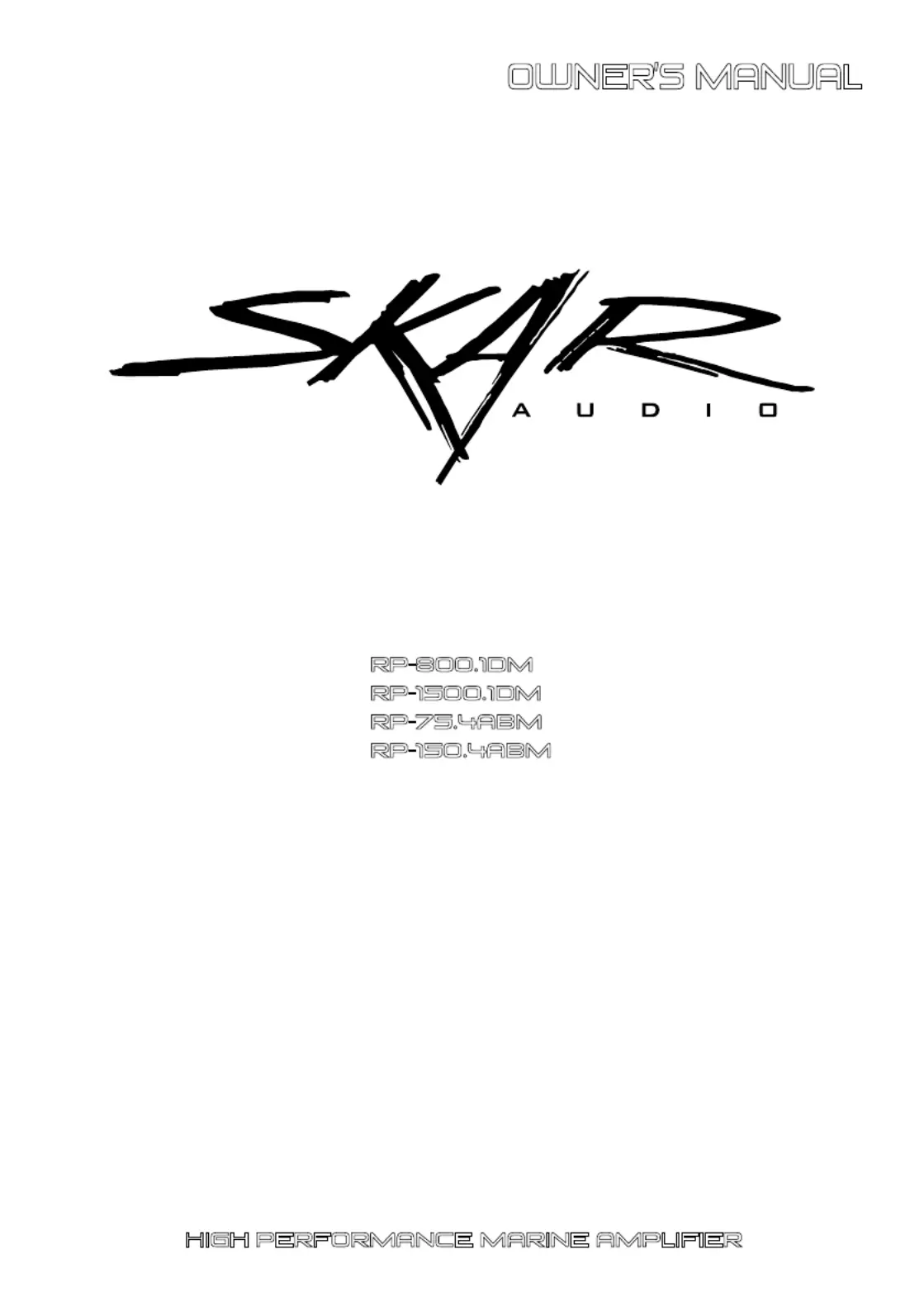

owner’s manual
Congratulations and thank you for purchasing SKAR AUDIO marine amplifiers.
the logical choice in mobile audio amplification.
Your marine amplifiers have been designed and engineered with the highest quality
components and top of the line workmanship to help you reach the superior sound
you are after.
To achieve optimal performance of your system, please take a few moments to
read over this Owner’s manual or visit authorized dealer if needed before starting
your installation.
* 6dB / 12dB SELECTABLE BASS BOOST
* REMOTE CONTROL
* COMPACT DESIGN
* Water-proof coating on pcb
* rust-proof painting on mechanical cases
Rated power output
- RMS power @ 4 ohm
- RMS power @ 2 ohm
- RMS power @ 1 ohm
Working impedance
Input Sensitivity
Low Pass Filter
Subsonic Filter
Bass Boost
Frequency Response
Signal to Noise Ratio
Efficiency @ 4ohm
THD @ 4ohm
Damping Factor
Fuse Rating
Dimensions ( L inches )
6.30 W x 2.20 H inches
RP-800.1Dm
370Watts x 1
600Watts x 1
800Watts x 1
1ohm stable
6V ~ 0.2V
50Hz ~ 220Hz
Off ~ 50Hz
6dB / 12dB
20 ~ 250Hz
85 <
Over 90%
< 0.1%
150 <
80A
10.13 inches
RP-1500.1Dm
550Watts x 1
930Watts x 1
1500Watts x 1
1ohm stable
6V ~ 0.2V
50Hz ~ 220Hz
Off ~ 50Hz
6dB / 12dB
20 ~ 250Hz
85 <
Over 90%
< 0.1%
150 <
150A
13.267 inches
All features are subject to change in the continuing effort to improve the products without notice.
INTRODUCTION
DIGITAL MONOBLOCK FEATURES
DIGITAL MONOBLOCK SPECIFICATIONS
* STABLE INTO 1OHM LOAD
* HIGH SPEED MOSFET POWER SUPPLY
* 24dB/OCT, VARIABLE CROSSOVER
* VARIABLE LOW PASS FILTER
* VARIABLE SUBSONIC FILTER
MULTI-CHANNEL SPECIFICATIONS
Rated power output
- RMS power @ 4 ohm
- RMS power @ 2 ohm
- RMS power @ 1 ohm
- RMS power @ 4 ohm mono
Working impedance
Input Sensitivity
High Pass Filter
Low Pass Filter
Subsonic Filter
Bass Boost
Frequency Response
Signal to Noise Ratio
Efficiency @ 4ohm
THD @ 4ohm
Damping Factor
Fuse Rating
Dimensions ( L inches )
6.30 W x 2.20 H inches
RP-150.4ABm
150Watts x 4
250Watts x 4
na
500Watts x 2
2ohm stable
6V ~ 0.2V
20Hz ~ 5KHz
50Hz ~ 500Hz
na
6dB / 12dB
20Hz ~ 20KHz
105 <
Over 65%
< 0.1%
150 <
120A
17.72 inches
All features are subject to change in the continuing effort to improve the products without notice.
RP-75.4ABm
75Watts x 4
115Watts x 4
na
250Watts x 2
2ohm stable
6V ~ 0.2V
20Hz ~ 5KHz
50Hz ~ 500Hz
na
6dB / 12dB
20Hz ~ 20KHz
105 <
Over 65%
< 0.1%
150 <
60A
13.78 inches
MULTI-CHANNEL FEATURES
* STABLE INTO 2OHM STEREO OR 4OHM MONO
* HIGH SPEED MOSFET POWER SUPPLY
* 12dB/OCT, HIGH PASS FILTER
* 12dB/OCT, LOW PASS FILTER
* 6dB / 12dB SELECTABLE BASS BOOST
* BAND-PASS CAPABLE
* smt technology
* heavy duty printed circuit board
* COMPACT DESIGN
* Water-proof coating on pcb
* rust-proof painting on mechanical cases
Product specificaties
| Merk: | Skar Audio |
| Categorie: | Receiver |
| Model: | RP-75.4ABM |
