Satellite Tracking

Indicator: Flash N times

every 5s, N- Num of

tracking satellites

Static Indicator: Yellow

light flashes when recording

static data.

Function Button: Press twice

in succession to start/stop static

data recording (For E1 & E1 Lite).

Short press to switch and press

twice in succession to turn on/off

function (For E1 Pro).

OLED Display: Display receiver

status and for easy configuration

(only for E1 Pro)

Power Indicator: Red light

is on when the receiver is

turned on, and red light

flashes when the battery is

lower than 10%. Green light

flashes when chargingand

stays on when fully charged.

Power Button: Long press

to turn on/off the receiver

TNC Connector: For

UHF Antenna

PACKAGE CONTENTS

In addition to this Quick Start Guide, the following content is also provided with

your package. If any of these is missing, please contact your SingularXYZ

distribution partner.

Data Collector ×1

Type-C to Type-C USB Cable ×1E1 Pro GNSS Receiver ×1

Whip Antenna ×1Battery Charger ×1

Standard

Front Panel

Interfaces

OLED Display

Thank you for choosing SingularXYZ E1-Series GNSS receiver. We recommend

that you spend some time reading this Quick Start Guide in order to fully

understand this product and get started easily.

Please kindly refer to the following steps to get started, each step has detailed

instruction in this guide.

Step 1: Unbox and check the package content.

Step 2: Turn on the receiver and connect to related products.

Step 3: Select and apply the work mode you need.

Step 4: Initialize the IMU and start survey tasks.

If you want to know further operations and details of E1-Series, please refer to the

user manual, which can be found on our official website www.singularxyz.com.

The latest upgrades and news will also be released on it.

About SingularXYZ

®

SingularXYZ Intelligent Technology Ltd. is focused on high precision GNSS PNT

(Positioning, Navigation & Timing) technology, extending its coverage to horizontal

and vertical industries, which mainly include geospatial information, precision

agriculture, machine control, robotics, telecommunications, IoT and etc., providing

users with reliable, stable and professional products, solutions and service. We are

committed to popularizing precision and intelligence into all aspects of people's

lives, contributing to building a digital, smart and efficient open society.

Dear Users,

Options For Rover

E1-SERIES INTRODUCTION

Nowadays, with more and more "full-function" GNSS receivers appearing on the

market, how to make the receiver smaller and more durable while maintaining its

functionality has become the point.

On the one hand, the E1-series has greatly optimized the RTK performance and

main functions in all aspects, and at the same time makes it smaller to reduce your

burden, providing the smallest size at the same performance level.

On the other hand, for different levels of user needs, the SingularXYZ team will

launch several receiver models of the E1-series to provide more choices for wide

users.

Correction Data

Indicator: Flash when

TX/RX correction data

+86-21-60835489

+86-21-60835497

singularxyz@singularxyz.com

www.singularxyz.com

Floor 2, Building A, No. 599 Gaojing

Road, 201702 Shanghai, China

@SingularXYZ-Geospatial

123

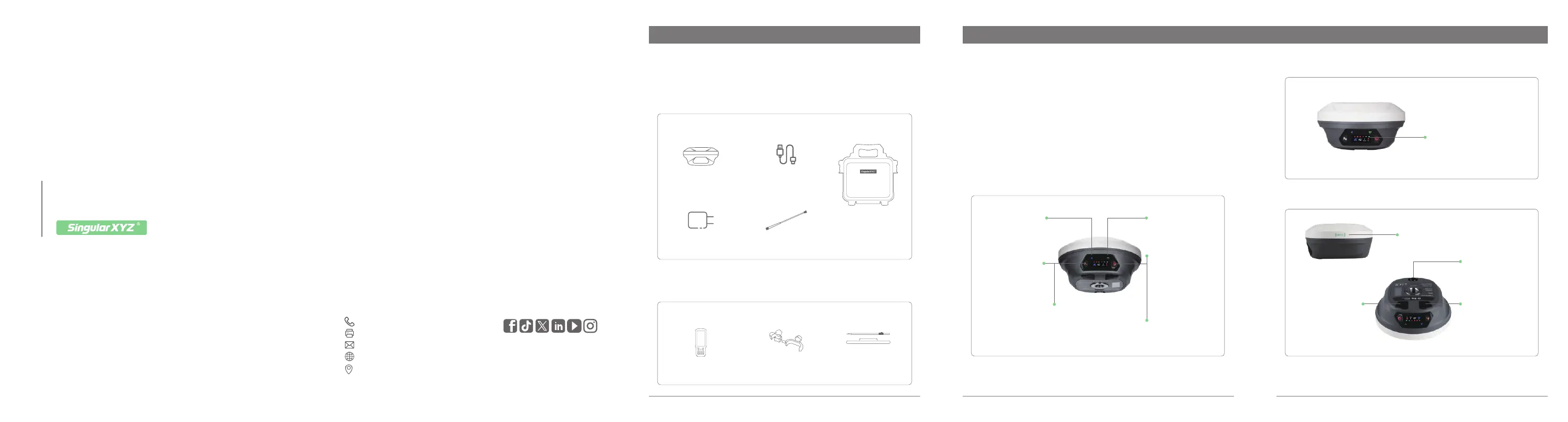

E1-SERIES GNSS RECEIVER

Quick Start Guide

NFC Connection

Type-C Interface for

charging and data

download

7-pin Lemo RS232

Serial Port

Centering Pole & Bag ×1Collector Bracket ×1

Transport Case ×1
