Assembly Instructions for Model: VMXA1

Thank you for choosing a Sanus Systems VisionMount™ Model: VMXA1. The VMXA1 is 8″ [203 mm] longer and replaces the Center

Plate provided with the VMPL3. The VMXA1 is designed to hold up to 280 lbs [127 kg].

Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 08.02.06 (100042)

Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com

Step 1: Congure Wall Plate Assembly

NOTE: VMXA1 replaces the standard Center Plate in the Wall Plate Assembly (A) provided with the VMPL3. These instructions

replace Step 7: Congure Wall Plate Assembly, of the Assembly Instructions for Model: VMPL3.

Using the VMXA1, the Wall Plate Assembly (A) can be adjusted in width from 35″ to 50″ [889 mm to 1270 mm]. Determine how wide you

want the Wall Plate Assembly based on the following criteria:

• Width of television (Wall Plate Assembly should be congured so the total width is less than the overall width of your television)

• Width of Hole Pattern on television (Wall Plate Assembly should be wider than the horizontal distance between threaded inserts on the

back of your TV by at least 2″ [50.8 mm])

• Stud Spacing (Sanus recommends attaching Wall Plate Assembly to three studs for televisions over 125 lbs. [56.7 Kg])

To adjust the width of the Wall Plate Assembly (A) using the VMXA1:

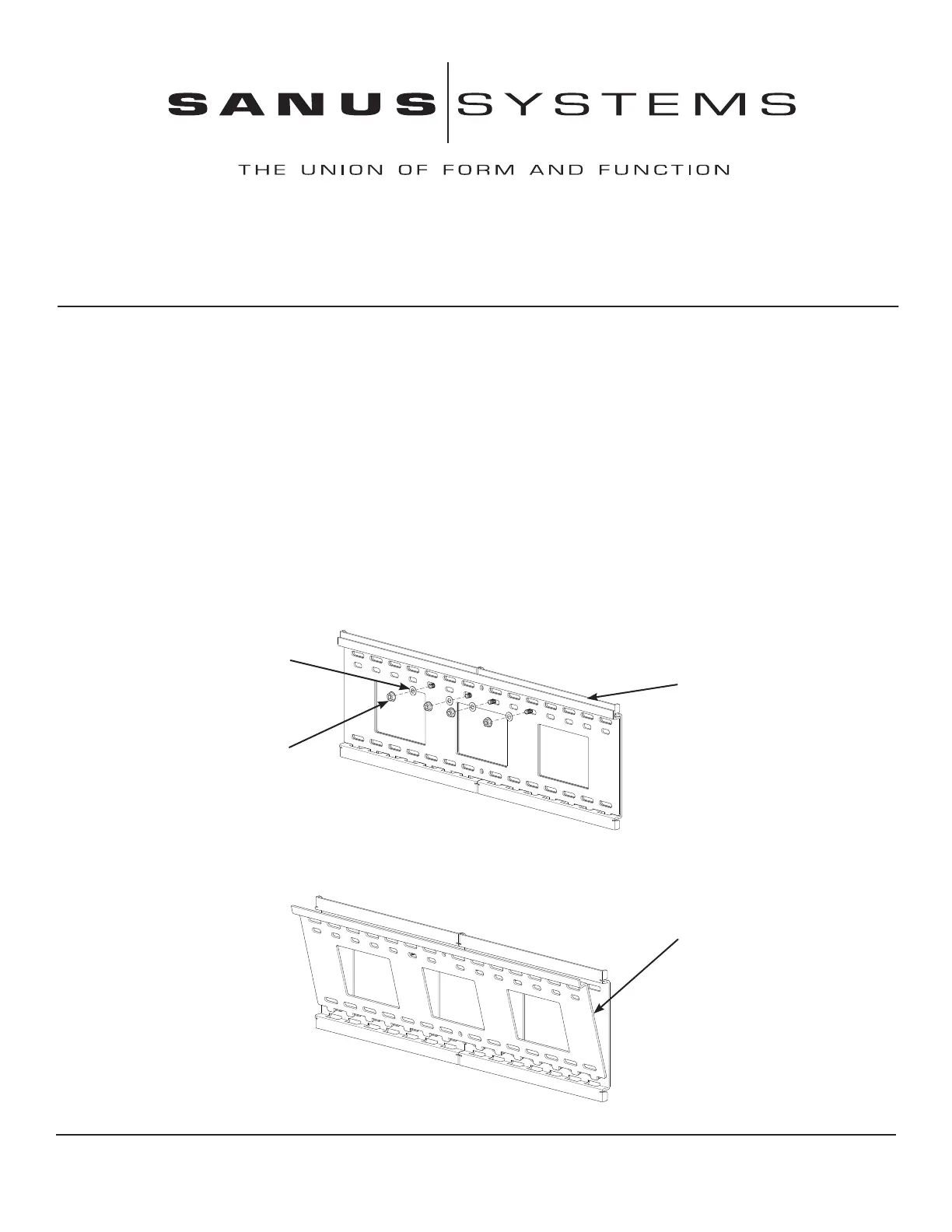

Remove each Flange Nut and Nylon Washer from the Wall Plate Assembly (A) as shown in Diagram 1A.

Diagram 1A

Flange

Nut

Wall Plate

Assembly (A)

Nylon

Washer

Remove the Center Plate of the Wall Plate Assembly (A) as shown in Diagram 1B.

Diagram 1B

Center

Plate
