Pagina 1/5
1

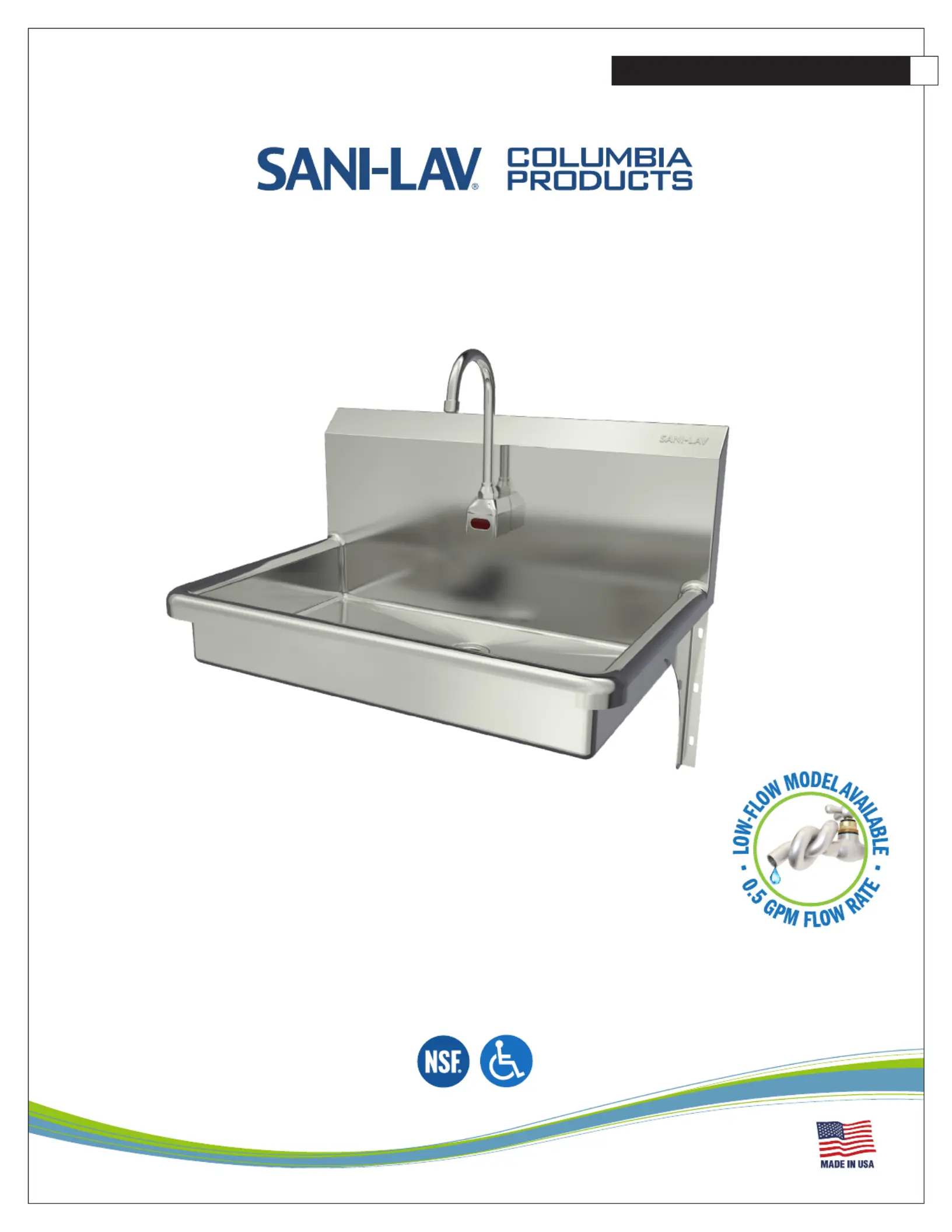

WASH STATION WITH ELECTRONIC SENSOR
AC OR BATTERY POWERED
Operating Manual for 1-Person Hands-Free Wall Mount
Stainless Steel Wash Station
AC Models 5A1A 5A1A-0.5
Battery Models 5A1B 5A1B-0.5
of Domestic and Foreign Parts
Columbia does not recommend use with harsh chemicals.
Product Compliance
NSF/ANSI 2 Food Equipment, NSF/ANSI 61, Section 9, ASME A112.18.1, ADA Compliant
ADA Compliant
800.626.2117 columbiasinks.com info@columbiasinks.com
©2023 Columbia Products
COLUMBIA SPECIFIC ATIONS
WASH STATION WITH ELECTRONIC SENSOR
2
AC OR BATTERY POWERED
Installation Instructions
Step 1
1. Establish sink location on the wall.
2. Determine desired height for the top of the backsplash from finished floor and draw a level
line which will be the top edge of the wall mounting bracket.
3. Hold the wall mounting bracket against the wall and mark the wall where the holes are. Drill
holes and secure bracket to the wall as shown in illustration A. Screws are not provided.
Step 2
1. Install strainer assembly.
2. Install faucets to the sink following the instructions provided with sensor unit.
3. Attach supply tube with elbow to back of faucet.
4. Install mixing check valve and compression fitting to control box of each sensor faucet.
Step 3
1. Position the sink onto wall bracket.
2. Loosely attach support brackets under sink and push against wall then mark holes for
drilling as shown in illustration B.
3. Remove support brackets from sink and drill holes for mounting fasteners (not provided).
4. Re-mount support brackets to sink and fasten to wall.
Step 4
1. Connect waste line to strainer assembly (s).
2. Mount sensor control box at desired location on wall.
3. Connect power line from sensor to control box.
4. Attach supply tube from faucet to control box.
5. Connect hot and cold water from the source to mixing check valve (s).
6. Remove aerator from the spout assemblies and flush water system. (see step 7 sensor
installation instructions)
7. Check connections for leaks.
8. Replace aerator onto the spout (s).
9. We recommend sealing top of backsplash to wall as shown in illustration C.
Parts List
(1) Wall mount wash station
(1) AC or Battery powered sensor faucet assembly
(1) Wall-mounting bracket
(2) Support brackets
(4) Support bracket mounting bolts and washers
(1) Mixing check valve
(1) Strainer assembly with basket
Tools Required
Tape measure
Adjustable wrench
Drill motor and drill bits
Pipe wrench
Level
Safety glasses
Screw drivers: phillips and standard
Pencil
Socket wrench
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds),
Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects
or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
NOTE: Lead content originates from Brass components in valves and faucets and is certied under
NSF/ANSI 372 as containing less than 0.25% lead in wetted surfaces.
Notice for California Consumers
Go to for more information on replacement parts and installation videos.columbiasinks.com
Illustration A
Illustration B
Illustration C
800.626.2117 columbiasinks.com info@columbiasinks.com
©2023 Columbia Products
COLUMBIA SPECIFIC ATIONS
WASH STATION WITH ELECTRONIC SENSOR
3
AC OR BATTERY POWERED
Wall-mounting bracket
10” (254mm)
10” (254mm)
45º
35” (889mm)
suggested
floor to rim
height
Front
Side
29” (736.6mm)
20” (508mm)
2” (51mm)
1.5” (38mm)
.875” (22mm)
dia. hole (1)
Hole Configuration
15”
(381mm)
15”
(381mm)
6” (152.4mm)
5” (127mm)
.5” R (12.7mm)
.437” (6mm)
.75” (19mm) slot
.437” (6mm)
dia. hole
7” (177.8mm)
2”
(51mm)
.875”
(22.22mm)
Back
Splash
.375”
dia. hole
Wall Mounting Detail
16.75”
(425.45 mm)
30” (762mm)
15” (381mm) 15” (381mm)
20”
(508mm)
18”
(457.2mm)
1.5” (38mm)
2” (51mm)
Top
1.5” (38mm)
27” (685.8mm)
2” drain hole
(50.8mm)
.5” R
(12.7mm)
Cross-breaks to aid drainage
11” (279.54mm)
7.5” (191mm)
