Pagina 1/35

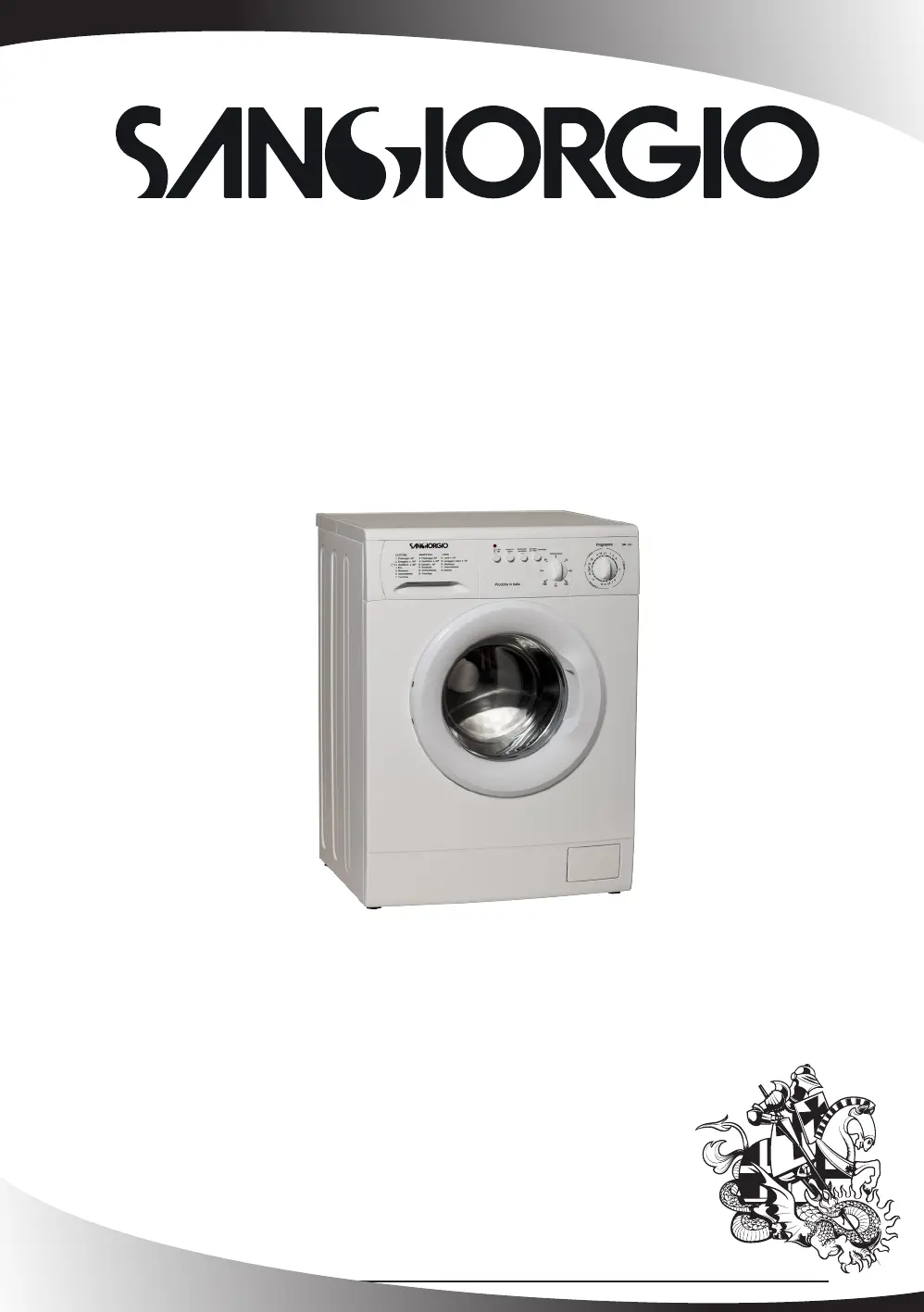

WWW.SANGIORGIOELETTRODOMESTICI.IT

INFO@SANGIORGIOELETTRODOMESTICI.IT

Please read the instructions carefully

before handling, installing and using your home appliance so as to

prevent any damage to yourself and to your washing machine

HYBRID PROJECT

User Manual

Use and Maintenance

Evolution 3

30°

40°

50°

60°

70°

80°

90°

°C

START

Pause

Prewash

Soak

Extra rinse

Rinse hold

Spin regulation

Delay start

Baby lock

E3D

Spin

Rinse

OFF

Shirts

Delicat

Jeans/Coloured

Drain

Duvets

Silk/Lingerie

Wool

Sport/Fitness

Curtains

Intensive

Express 25’

Synthetics

Cotton

INFO

IMPORTANT OPERATIONAL

INSTRUCTIONS

Carefully read the instruction booklet

Place the washing machine on a non-elevated level or

plain of the floor. After offseting any unevenness

by the regulating the leveling feet, it should be locked by

the locking nut.

PHASE 1 : REMOVAL OF FIXING SCREWS

Remove the screws include spacers by

pulling outward (Figure 2.)

PHASE 3 :PLACEMENTPHASE 2 : WATER CONNECTION

Check for leaks after connection to the water supply.

Electric shock hazard: the lack of these warnings

can be harmful to health.

For your personal safety, this washing machine must be connected to

earth device.

If earthing device not installed, it must be installed by a qualified

technician before starting the machine.

This washing machine is equipped with a power cord (A) and

with a plug (B).

To minimize the risk of electric shock, the cable must be

plugged into a wall socket (C) that accepts the plug (B).

If the wall socket is not available it is a personal responsibility

and th duty of the client to have it installed by a qualified electrician.

Do not change/modify the power cord and do not use

adapters or extension cords (D).

Cabinet

Locking

nut

Leveling feet

THIS MACHINE REUIRES GROUNDING (EARTHING)

PHASE 4 : ELECTRICAL SPECIFICATIONS

Fig.1

Fig.2

3 4

Product specificaties

Merk:	Sangiorgio
Categorie:	Wasmachine
Model:	S5510C
Apparaatplaatsing:	Vrijstaand
Soort bediening:	Buttons, Rotary
Kleur van het product:	Wit
Deurscharnieren:	Links
Ingebouwd display:	Nee
Timer:	Ja
Gewicht:	64000 g
Breedte:	595 mm
Diepte:	540 mm
Hoogte:	850 mm
Netbelasting:	2200 W
Type lader:	Voorbelading
Resterende tijd indicatie:	Ja
Energie-efficiëntieklasse:	D
Energieverbruik wassen:	- kWu
Centrifuge-droger klasse:	C
Geluidsniveau (wassen):	- dB
Maximale centrifugesnelheid:	1000 RPM
Geluidsemissieklasse:	B
Geluidsniveau bij centrifugeren:	73 dB
Aantal wasprogramma's:	18
Energieverbruik per 100 cycli:	63 kWu
Bescherming tegen overstromen:	Ja
Kijkglas:	Ja
Deurdiameter:	420 mm
Nominale capaciteit:	7 kg
AC-ingangsspanning:	220 - 230 V
AC-ingangsfrequentie:	50 Hz
Energie-efficiëntieschaal:	A tot G
Wasprogramma's:	Cotton, Daily care, Eco, Hand, Wool, Synthetics, Spin/drain
