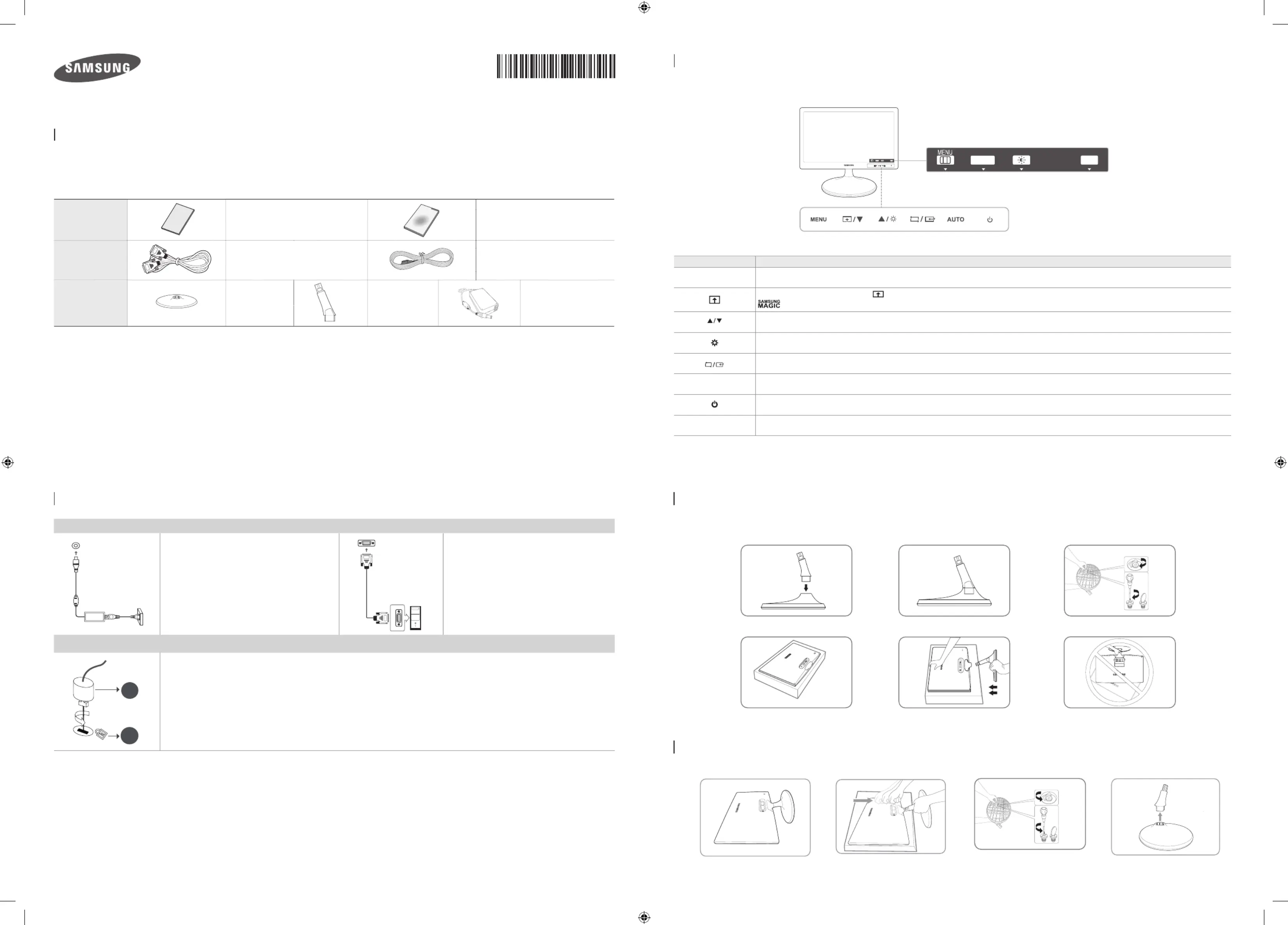

Connecting the PowerConnecting Computer

Connect the power adapter to [DC 14V] jack on the

rear of the product. Connect the power cord to the

adapter and wall socket. (The input voltage is switched

automatically.)

RGB IN

RGB OUT

Connect the D-SUB cable to the [RGB IN] port on the

back of the product and the RGB port on the PC.

Anti-theft Lock

B

A

To lock an anti-theft locking device:

1 Fix the cable of your anti-theft locking device to a heavy object such as a desk.

2 Put one end of the cable through the loop on the other end.

3 Insert the Kensington Lock into the security slot on the back of the display.

4 Lock the locking device.

Unpack the product and check if all of the following contents have been included.

If any items are missing, contact your dealer.

The cables provided may vary depending on the product you purchase.

User Manual

Warranty card

(Not available in some locations)

Quick setup guide

Cables

D-SUB cable (optional)Power cable

Others

Stand baseStand neckDC power adapter

The color and shape of parts may differ from what is shown. Specications are subject to change without notice to improve quality.

MENUAUTO

Key Guide

SAMSUNG

MAGIC

BRIGHT

AUTO

SAMSUNG

MAGIC

BRIGHT

AUTO

IconDescription

MENUOpen or close the onscreen display (OSD) menu, or return to the parent menu.

Congure Customized Key and press [ ]. The following options will be enabled.

Bright - Eco Saving - Image Size

Move to the upper or lower menu or adjust the value for an option on the OSD menu.

Use this button to control the brightness and contrast of the screen.

Use this button to select a function.

AUTO

Press the [AUTO] button to automatically adjust the screen settings.

If the resolution settings are changed in the Display Properties, the AUTO adjustment function is performed.

Turn the screen on or off.

Key Guide

When a control button on the product is pressed, the Key Guide will be displayed before the onscreen menu opens.

Package Contents

Quick Setup Guide

Frontal Buttons

Attaching the Stand

DC

RGB IN

HDMI IN

DC

RGB IN

HDMI IN

Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards.

1

4

2

5

3

6

1234

Removing the Stand

Connecting and Using a Source Device

BN68

-

04745D

-

01

BN68-04745D-01.indd 12013-08-05  10:47:04
