CAUTION: Two people are required to lift the dryer on to

the washer.

WARNING : These washer and dryer are not suitable for

mobile home or RV installation.

Dryer

STEP 1Have two persons place the dryer on a non-slippery

floor. Then, have one person tilt the dryer to the side.

Do not lay the dryer down. The dryer may be scratched.

STEP 2-1 SKK-7*, SKK-8*: Check if the legs are tightened up,

and then insert the stacking support guides in the

rectangular holes of the dryer’s base until you hear a

clicking sound. You don’t need to remove the legs.

STEP 2-2SKK-BB: Disassemble legs, and Snap the stacking

support guides into the rectangular holes in the dryer

base and secure each with two(2) screws Phillips-pan

head (6006-001174)

STEP 3Repeat the same step above on the other side.

STEP 4 Bottom view of the dryer after assembling the Stacking

Support Guides to the dryer base.

* Use a stacking-kit compatible with the purchased model.

Washer (Stacking kit: SKK-7*, SKK-8*, for 27” models)

CAUTION : You need to use the proper rear bracket

depending on your washer model. (There are 2 different

rear brackets : DC61-04160A, DC61-04955A)

5-1)DC61-04160A : WF5*K**, WF4*H**, WF4*K**, WF4*M**,

WF4*N**, WF18H**, WF20H**, WF20M**, WF22H**,

WF22K**, WF15K**, WF16J65**

LeftRight

DO NOT TIGHTEN SCREWS COMPLETELY

STEP 5-1 LOOSELY assemble the Rear Brackets

(DC61-04160A) to the washer as shown below. Use

two (2) Screws-Hex Head (6002-001431) with washers

(DC60-00044A) in each washing machine Top Cover tail,

per bracket.

* Before installing the rear bracket, loosen two screws

(Screw-Hex) on the Cover Top that is secured to the frame.

5-2)DC61-04955A : WF5*R**, WF4*R**, WF5*T**, WF4*T**,

WF2*R**, WF1*R**, WF2*T**, WF1*T**

LeftRight

DO NOT TIGHTEN SCREWS COMPLETELY

STEP 5-2 LOOSELY assemble the Rear Brackets (DC61-04955A)

to the washer as shown below. Use two (2) Screws-Hex

Head (6002-001431) with washers (DC60-00044A) in

each washing machine Top Cover tail, per bracket.

* Before installing the rear bracket, loosen two screws

(Screw-Hex) on the Cover Top that is secured to the frame.

Washer (Stacking kit: SKK-BB, for 30” models)

WF56H**

STEP 5-3

Loosely assemble the Rear Bracket (DC61-03846A) to

the washer as shown above in either case A or Case B,

Use (2) Screws-Hex Head (6009-001476) with washers

(DC60-00044A) to the each hole of Cover Top and Frame.

* Case A only : Before installing the rear bracket, loosen two screws

(Screw-Hex) on the Cover Top that is secured to the frame.

Case ACase B

Small CapBig Cap

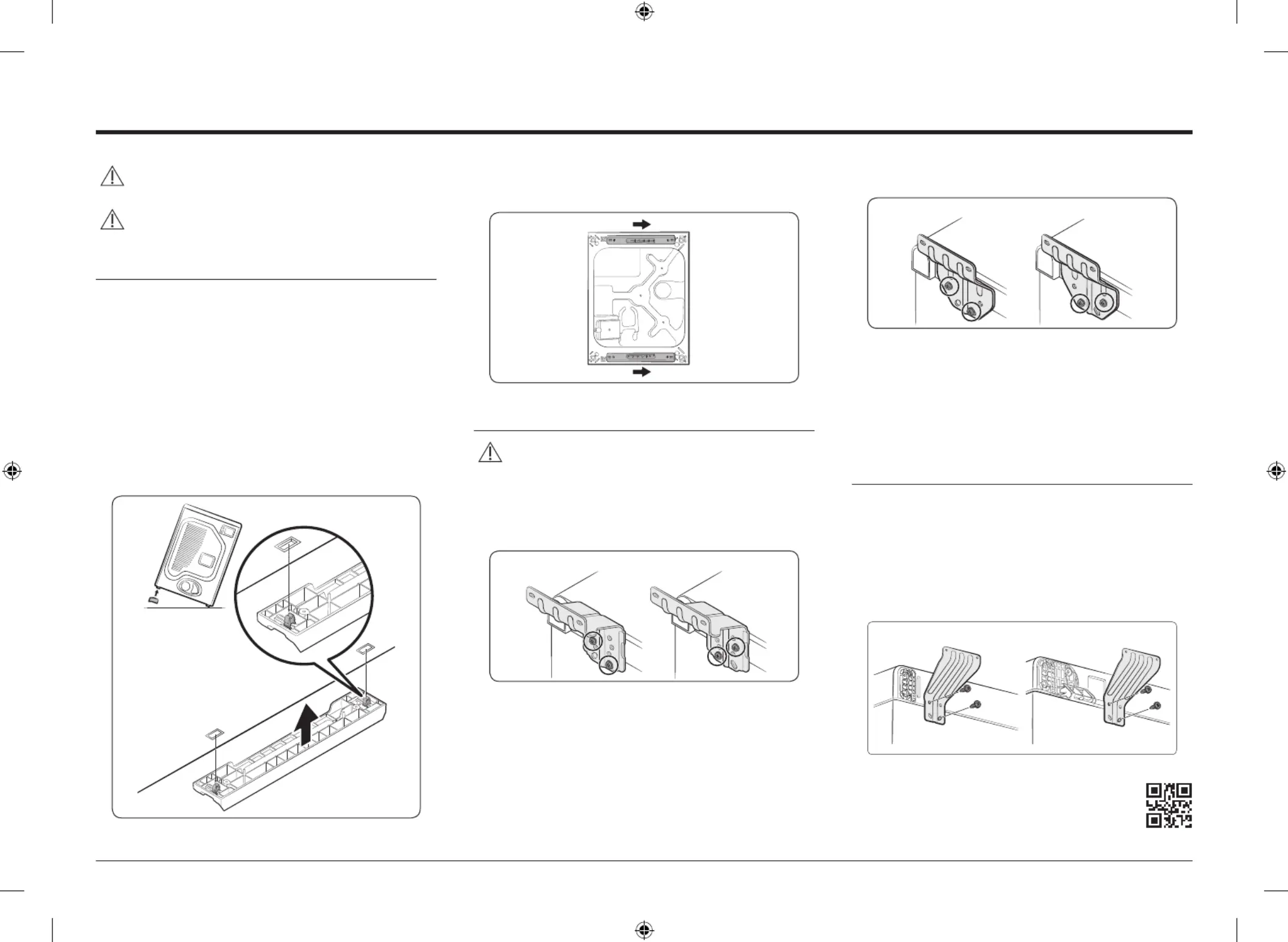

STACKING KIT INSTALLATION INSTRUCTIONS (WASHER & DRYER ONLY)

DC68-01052R-11

StakingKit_DC68-01052R-11_EN.indd 12020-10-14  5:38:37
