English - 1

➢

The actual configuration of your TV may be different,

depending on your model.

Connection Panel

(depending on the model)

cable television

network

Rear Panel

☛

Whenever you connect an audio or video system to your

television, ensure that all elements are switched off.

Please be sure to match the color coded input terminals

and cable jacks.

Connecting to an Aerial or Cable Television Network

Connect the aerial or network input cable to the 1(75 Ω

coaxial socket).

To view television channels correctly, a signal must be

received by the set from one of the sources: an outdoor

aerial, cable television network, or satellite network.

If you are using an indoor aerial, you may need to adjust it

when tuning your television until you obtain a picture that is

both sharp and clear.

Connecting to the RCAOutput

The RCA2connectors are used for equipment, such as a

recording VCR or audio system.

Connecting to the RCAInput

The RCA3and RCA4connectors are used for equipment,

such as a VCR, DVD, decoder, satellite receiver, video game

device, or video disc player. (When using the mono

equipment, connect to the AUDIO-Linput connector.)

The RCA5connectors are used for equipment such as a

DVD with component output (480i only).

or

☛

Please be sure to match the colour coded input

terminals and cable jacks.

Connecting to the RCAInput

The 1(AUDIO-L/R) and 2(VIDEO) connectors are used

for equipment, such as a camcorder, video disc player, or

video game device.

Connecting Headphones

The 3(headphone) jack is used for watching a television

programme without disturbing the other people in the room.

Prolonged use of headphones at a high volume may damage

your hearing.

➢

When both the front (or side) AV and rear connectors

are connected to external equipment, the front (or

side) AV receives priority.

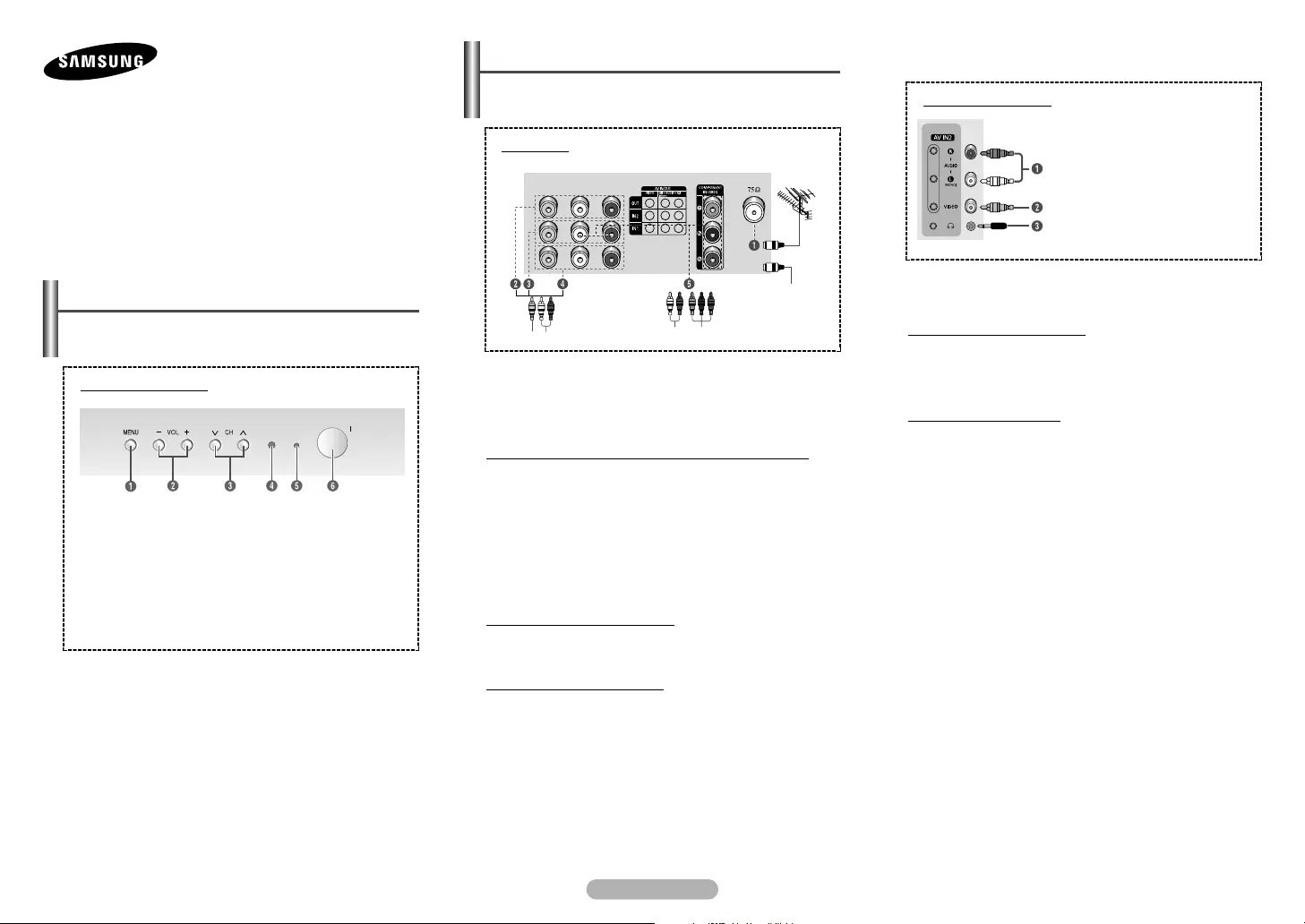

COLOUR TELEVISION

Owner’s Instructions

Before operating, please read this manual thoroughly,

and retain it for future reference.

Register your product at

www.samsung.com/global/register

➢

The actual configuration of your TV may be different,

depending on your model.

Control Panel

(depending on the model)

◆You can use the 3buttons to switch the TV on when it is

in standby mode depending on the model.

◆The 2and 3buttons also have the same function as the

œ/√/†/…buttons on the remote control.

◆If the remote control no longer works or you have

misplaced it, you can use the controls on the panel of the

television.

Front (or Side) Panel

1On-screen menu display

2Volume adjustment

3Channel selection

4Remote control sensor

5Indicator

6Power on/off

AA68-03790A-00

Audio input

Video input

Headphone jack

Front (or Side) Panel

AA68-03790A00Eng_asia 3/17/06 3:40 PM Page 1
