PACKAGE CONTENTS

• 2-outlet in-wall surge protector

• White decora-style wall plate

• Screws: 2 long and 2 short

• Quick Setup Guide

FEATURES

• Replaces a standard duplex outlet

• Status LED lets you know your devices are

protected

• Tamper-resistant outlets for added safety

• Provides two standard 125V power outlets

• 1,080 joules of surge protection

• Works in nearly all installations

• Compatible with your existing decora wall plate

We recommend that you use a professional electrician to

install the in-wall surge protector.

INSTALLING THE SURGE PROTECTOR

Warning: DISCONNECT POWER. Failure to do so can

result in severe injury or death.

1 Make sure that you disconnect power to the circuit

by removing the fuse from the circuit or turning

OFF the circuit breaker.

2 Remove the wall plate and mounting screws

that cover the old outlet.

3 Carefully remove the existing outlet from the

wall box.

4 Disconnect the wiring from the old outlet.

5 Connect the wires to the surge protector:

• Black lead attaches to the hot wire

• White lead attaches to the neutral wire

• Green lead attaches to the ground wire

You can attach the wires by:

A Inserting straight wires into the holes.

OR

A Wrapping the wires 3/4 of the way around

the terminal screws, making sure that the

wires do not overlap.

BTighten every screw and make sure that no

bare copper wire is exposed.

SAFETY

Warnings:

• RISK OF ELECTRIC SHOCK — Use only in dry locations

and only indoors.

• All cables should be routed away from the outlet

openings.

• DO NOT use with any aquarium equipment.

• DO NOT install in an outlet that is not grounded.

Notes to the installer:

• This device must be installed in accordance with

National and Local electrical codes.

• To prevent severe shock or electrocution, always turn

power OFF at the service panel before working with

wiring.

• This device should be used with copper or copper-clad

wire. DO NOT use with aluminum wire.

• DO NOT plug this device into a shallow wall box. The

wall box must be deep enough to house the surge

protector. If the box is too shallow, the surge protector.

will not t securely into the wall.

Before using your new product, please read these instructions to prevent any damage.

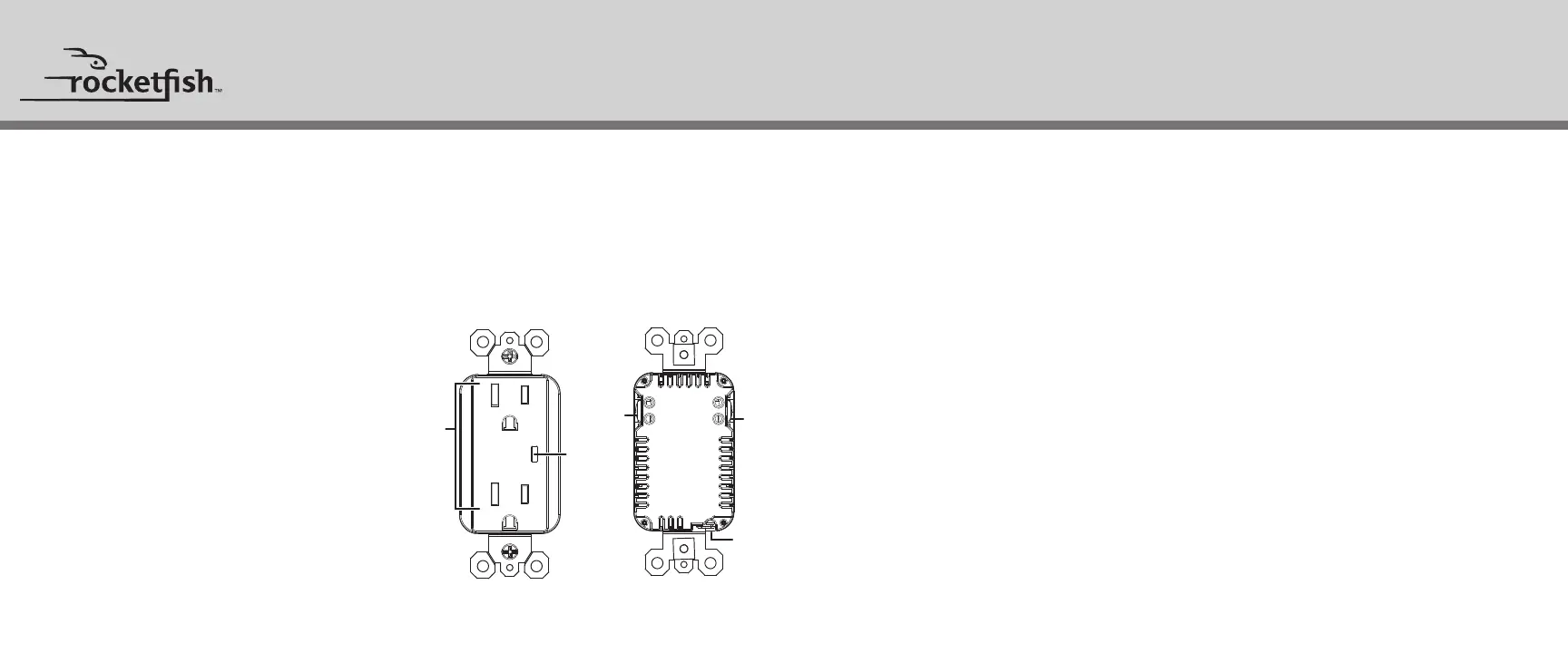

PROTECTED/

PROTECTED/

FAULT

FAULT

TR

TR

AC outlets

(2)

Indicator

LED

Ground

(green)

Neutral

(white)

Hot

(black)

Front

QUICK SETUP GUIDE

RF-HTS120W22 | 2-outlet In-wall Surge Protector

Back

RF-HTS120W22_22-0836_QSG_V1_EN_Final.ai110/5/20229:23:07AM
