Installation GuideRIGOL

1

RIGOL DSG3000Rack Mount Kit

This rack mount kit is designed to mount RIGOL DSG3000 series RF signal generator into a

19-inch cabinet that conforms to the Electronic Industries Association (EIA) standard.

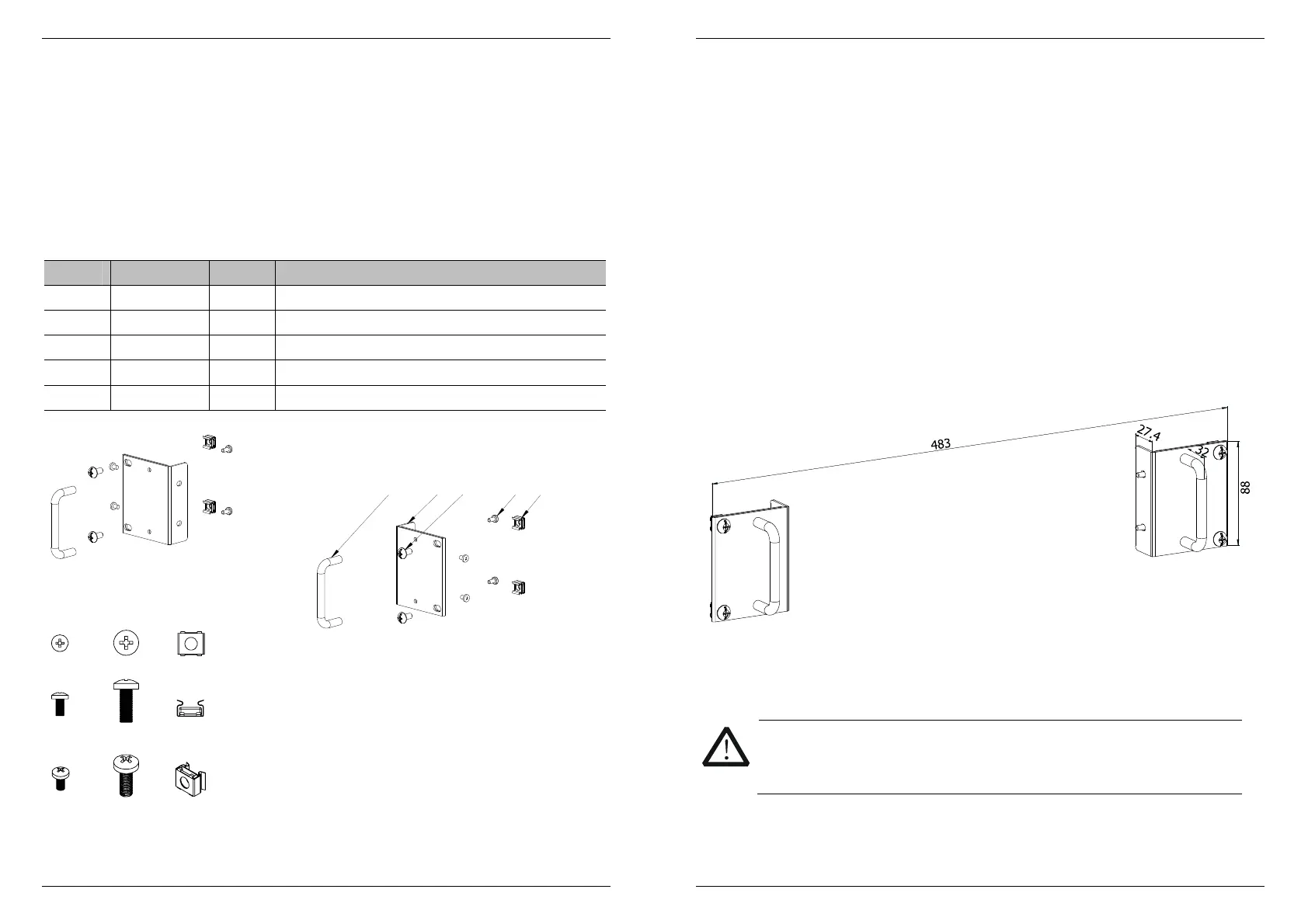

Kit Part Checklist

No. Name Qty. Description

1 Fastener 2 --

2 Rack Handle2 --

3 M4 Screw 8 M4 x 8 Phillips Pan Head Screw

4 M6 Screw 4 M6 x 16 Phillips Pan Head Screw

5 M6 Nut 4 M6 Square Lock Cage Nut

3 4 5

2 1 4 3 5

Installation GuideRIGOL

2

Installation Tool

The PH2 Philips screwdriver is recommended.

Space Requirements

To mount the instrument into the cabinet correctly, please ensure that the following

requirements are met.

The cabinet must be a standard 19-inch one.

The available height of the cabinet should be at least 2U (88.9 mm).

The depth of the cabinet should be at least 450 mm.

The dimensions of the rack are as shown below.

Unit: mm

Installation Procedures

CAUTION

Only authorized operators are allowed to perform the installation. Improper

installation might cause damage to the instrument or an installation failure.
