Pagina 1/77

INSTRUCTION MANUAL

REHXT0550-1

REVO ELITE HD

Network Box Camera

Please read this manual thoroughly before use, and keep it handy for future reference.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO

RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION

GRILLS OR OTHER OPENINGS ON THE EQUIPMENT.

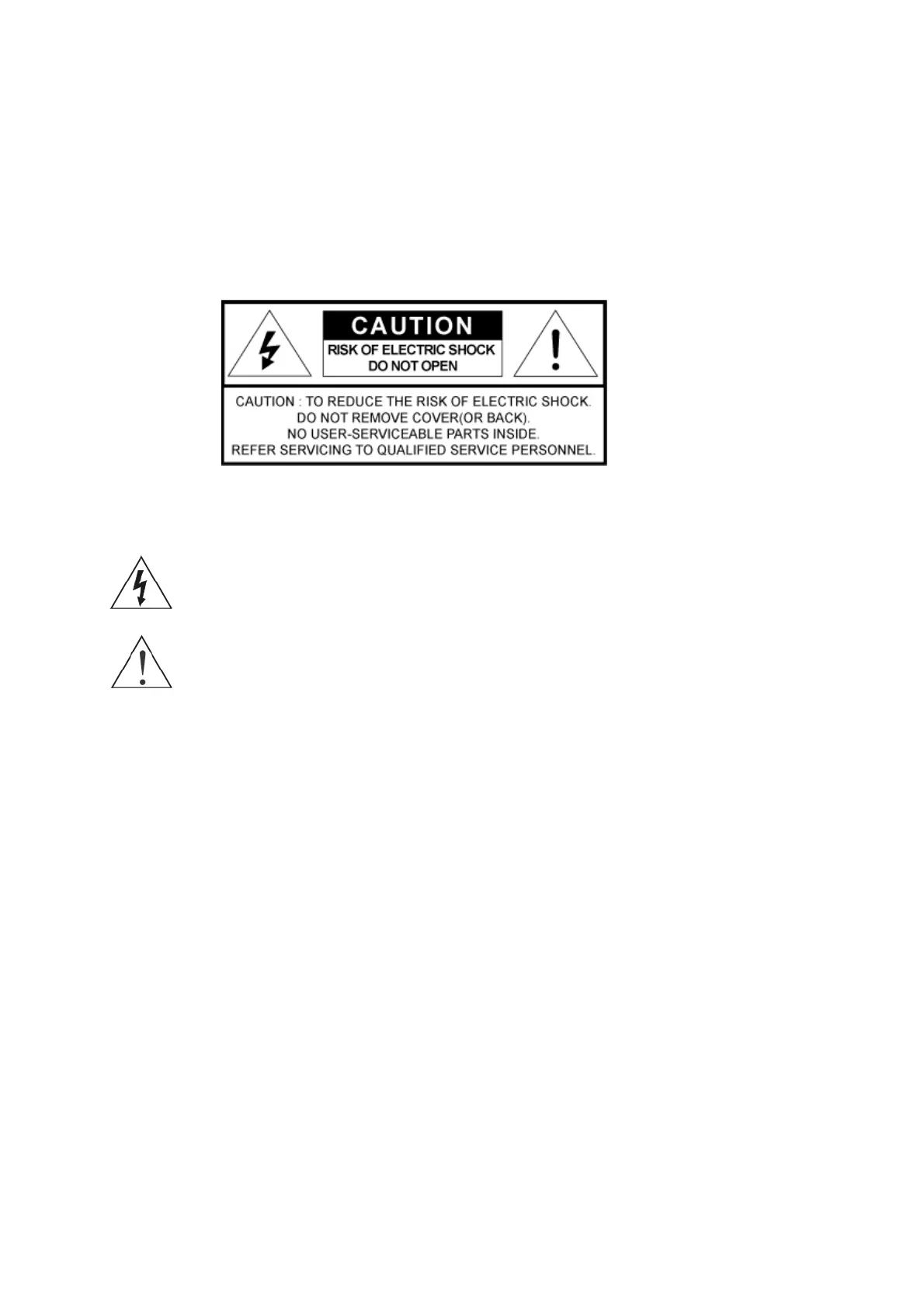

CAUTION

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user

to the presence of uninsulated "dangerous voltage" within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric shock.

he exclamation point within an equilateral triangle is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature accompanying the

appliance.

PRECAUTIONS

Safety -------------------------------------- Installation -------------------------------

Should any liquid or solid object fall into the cabinet,

unplug the unit and have it checked by the qualified

personnel before operating it any further.

Unplug the unit from the wall outlet if it is not going to

be used for several days or more. To disconnect the

cord, pull it out by the plug. Never pull the cord itself.

Allow adequate air circulation to prevent internal heat

build-up. Do not place the unit on surfaces (rugs,

blankets, etc.) or near materials(curtains, draperies)

that may block the ventilation holes.

Height and vertical linearity controls located at the rear

panel are for special adjustments by qualified

personnel only.

Do not install the unit in an extremely hot or humid

place or in a place subject to excessive dust,

mechanical vibration.

The unit is not designed to be waterproof.

Exposure to rain or water may damage the unit.

Cleaning ---------------------------------

Clean the unit only with dry cloth.

Use a mild household detergent. Never use strong

solvents such as thinner or benzene as they might

damage the finish of the unit.

Retain the original carton and packing materials for

safe transport of this unit in the future.

Product specificaties

Merk:	Revo
Categorie:	Bewakingscamera
Model:	Elite REHXT0550-1
Soort:	IP-beveiligingscamera
Internationale veiligheidscode (IP):	IP66
Ondersteunde videoformaten:	H.264, M-JPEG, MPEG4
Vormfactor:	Doos
Ondersteuning voor plaatsing:	Binnen & buiten
Connectiviteitstechnologie:	Bedraad
Ethernet LAN:	Ja
Montagewijze:	Muur
Ondersteunde video-modi:	1080p
Maximum resolutie:	1920 x 1080 Pixels
Totaal aantal megapixels:	2 MP
Type stroombron:	Power over Ethernet (PoE)
Minimale belichting:	0.2 Lux
Ingebouwde HDD:	Nee
Aantal Ethernet LAN (RJ-45)-poorten:	1
Brandpuntbereik:	5 - 50 mm
Omvang optische sensor:	1/2.7 "
Type beeldsensor:	CMOS
Optische zoom:	- x
Interface:	RJ-45
Ondersteunde grafische resoluties:	320 x 240,1920 x 1080 (HD 1080)
Bekabelingstechnologie:	10/100Base-T(X)
Maximaal 30 frames per seconde:	30 fps
Ondersteunde netwerkprotocollen:	TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, SNMP, UPnP, RTP, TRSP, RTCP, DHCP, ARP, Zeroconf, Bonjour
Stroomverbruik:	330 mA
Power over Ethernet (PoE):	Ja
Wifi:	Nee
AC-ingangsspanning:	24 V
