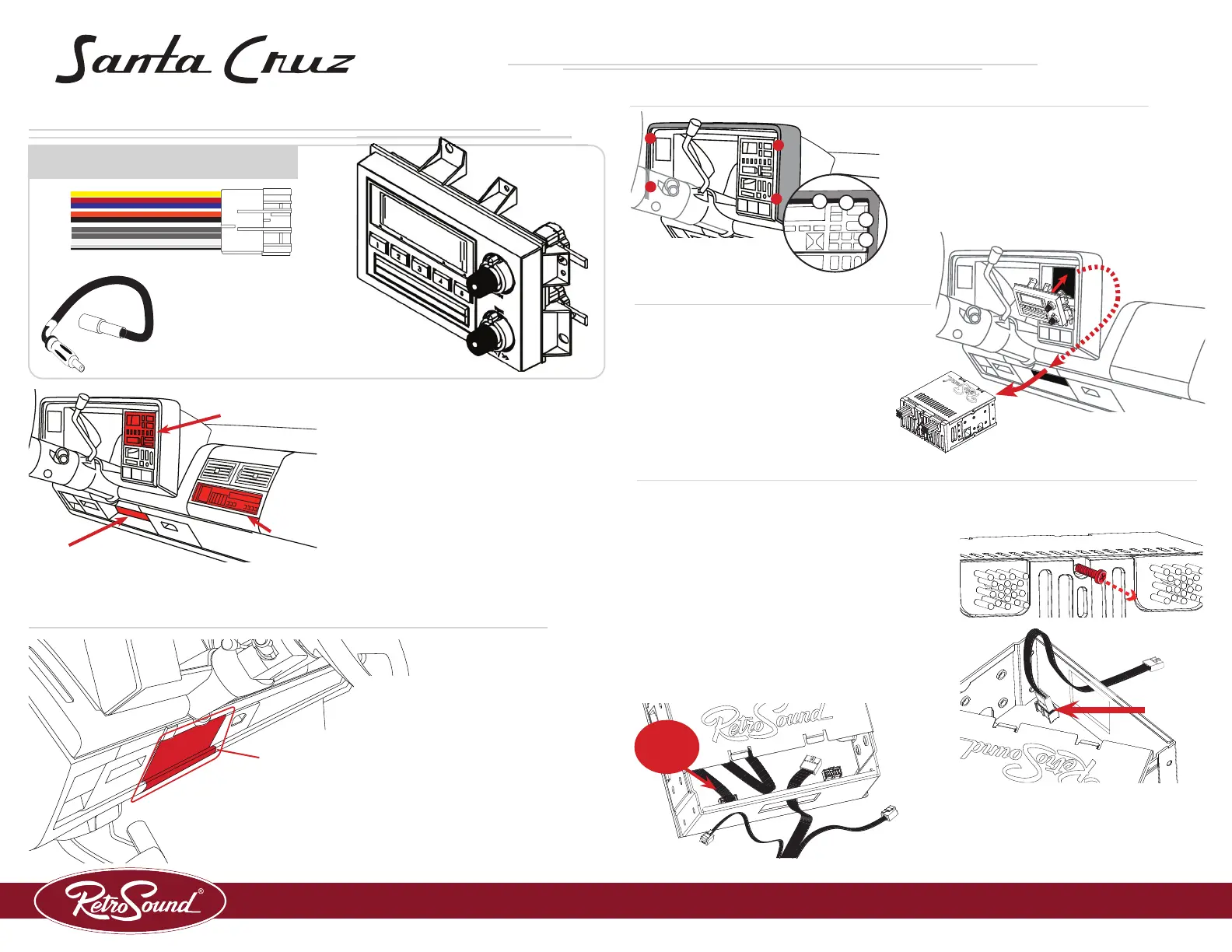

Radio Face Quick Start Guide

Modern Sound For Your Classic

Steps 1-2 Unplug The Factory Radio Reciver

1

2

3

4

Second

cable not

used

What’s in the Box

Santa Cruz Face

Route the Santa Cruz Face harness through

the dash opening, guiding it toward the

motor mounting location underneath the

dash, where the OEM receiver was

originally removed.

Ensure you leave enough extra cable

length so that the face harness can

easily be plugged into the radio motor.

Radio Face with Harness

662 Antenna Adapter

661 GM Adapter Harness

The factory radio in this vehicle is a two

or three-part system consisting of: a

radio controller mounted in the upper-

right side of the dash, an optional EQ or

tape player located in the center of the

lower dash and the radio receiver box

located under the dash just above the

gas pedal area.

1. Access the radio receiver box by

removing the panel just below the

steering column. Remove the two

screws located at the bottom corners

of the panel, then remove the panel.

Step 3 Remove the Factory Radio Controller

Step 4 Routing the Santa Cruz Harness

Locate and Remove the 4 screws (red) holding the

trim bezel(grey), then carefully remove the trim

from around the gauges.

Next carefully remove screws 1-4 holding the

controller in place, then remove the controller from

the dash.

Step 5 Conecting the Santa Cruz radio face to the RetroSound® radio motor.

To replace the pre-installed motor cable with the Santa Cruz radio face cable, you’ll first

need to unplug the existing motor cable.

For easier access, remove the top cover of the

radio body.

1. Remove the screw at the back of the motor (see

diagram on the right).

2. Lift the top cover.

3. Unplug the pre-installed ribbon cable from

the motor.

4. Connect the Santa Cruz radio face cable to

the motor in place of the original.

Make sure the new cable is properly seated

before reassembling the top cover.

REMOVE

CONTROLLER

OPTIONAL

EQ/TAPE

PLAYER

RECEIVER BOX

UNPLUG &

REMOVE

Cable from Radio Face

2. Locate the receiver box inside where panel was just removed,

it should be above the gas pedal.

Remove the three screws holding the receiver box in place.

Unplug the radio controller, EQ/cassette unit and main

harnesses. Remove the antenna plug, and then the receiver box.

Before installing, disconnect the vehicle’s negative battery terminal.
