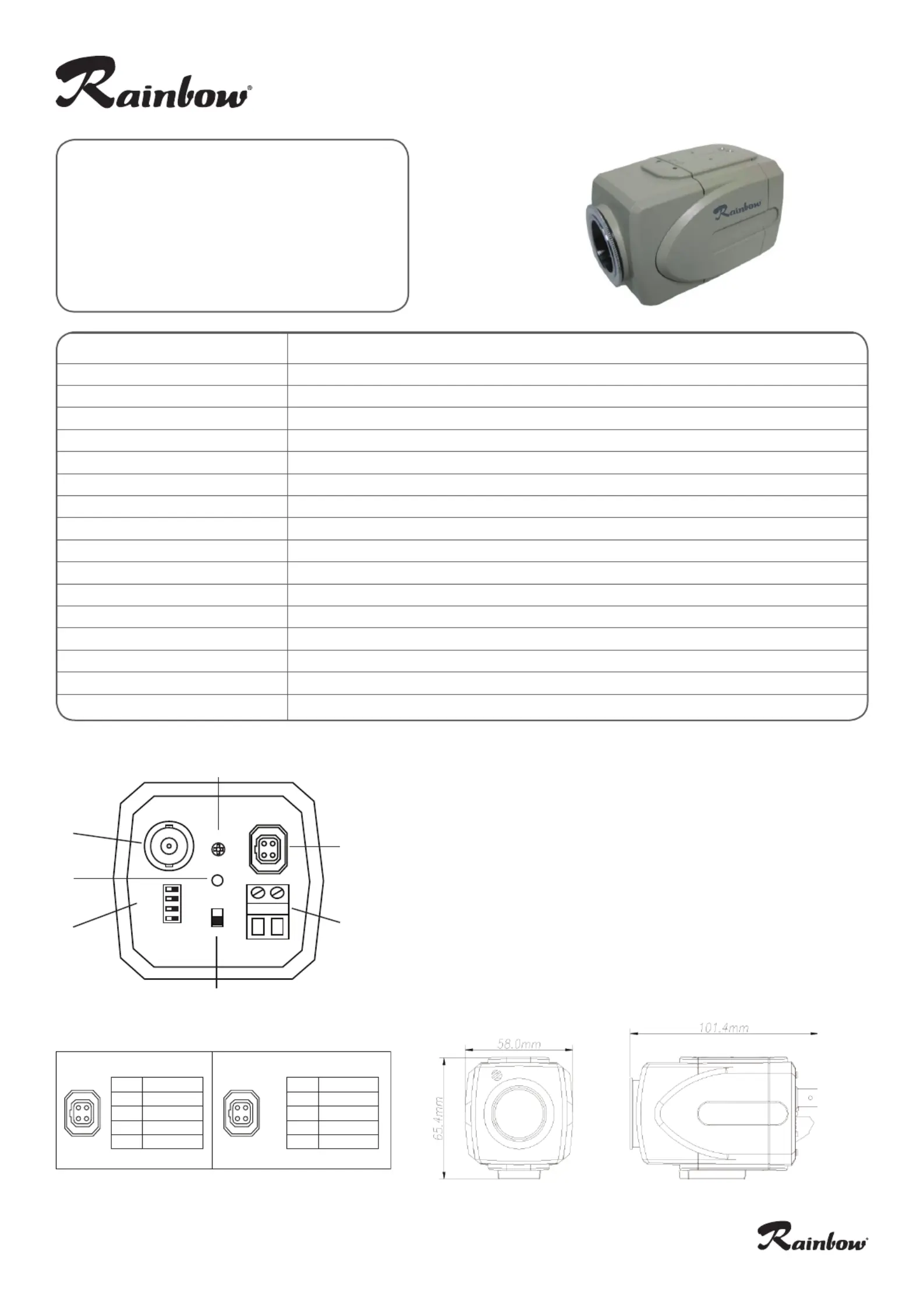

1/3” Color Sony Super HAD II CCD

540 lines, 0.1 lux

Basic Day/Night (not IR sensitive)

Supports DC, Video, and manual iris lenses

Dual voltage – 12VDC/24VAC

3-year warranty

Features

User Manual

Rainbow / International Space Optics • 200 McCormick Avenue, Costa Mesa CA 92626

Toll Free US & Canada 1-800-654-5367 • Int’l +1 949 260 1599 • www.rainbowcctv.com

Specifi cations subject to change without notice

V1.0

ModelECL54D

Image Sensor1/3” Color Sony Super HAD II CCD

Horizontal Resolution540 TV Lines

TV SystemNTSC

Picture Elements (pixels)537(H) × 505(V)

Min. Illumination0.1 lux

MountCS (C-mount adapter included)

Lens Iris OutputDC / Video (4-pin connector)

Signal to Noise RatioMore than 48dB

Synchronizing SystemInternal

Electronic Iris1/60~1/100,000 sec.

Video Output1Vp-p 75ohm

Power Requirement12VDC/24VAC ±10% 300mA Max.

Operating Condition+14 ~ 122°F (-10°C ~ +50°C)

Measurements (w/h/d)2.3 × 2.6 × 4.0 inches (58mm × 65.4mm × 101.4mm)

Weight (Camera Only)12.9 oz. (365g)

ColorIvory

13

24

Pin

1

2

3

4

Signal

+12VDC

N.C.

Video

Ground

VIDEO TYPE LENS

*Also referred to as DAMP, CONTROL, or DUMP

13

24

Pin

1

2

3

4

Signal

Brake – *

Brake + *

Drive +

Drive –

DC TYPE LENS

VIDEO OUT

Level

BLC

AE

AGC

NC

OFF

IRIS

OFF

Power

Video

DC

AUTO IRIS

AC

DC

+

24V

12V

-















 DC lens Level adjustment. When using a DC type auto-iris lens, adjust this if the

picture is too dark or bright.

 Video out connector (BNC)

 Power LED

 DIP Switches

Back Light CompensationBLC

Electronic iris selectionAE/IRIS

Set to AE when using an auto-iris lens

Set to IRIS when using a manual iris lens

Automatic Gain Control. Improves the picture in low light conditions.AGC

NCNot used

 Auto-iris lens connector. See pinout to make sure your lens is compatible.

 Power terminal. Use 12VDC or 24VAC only.

 Auto-iris lens selection switch. Select your lens type (DC or Video).
