Pagina 1/8
GEN -2 Universal Multi Function Instrument (UMFI)
Available in 2 ¼ -22- (PN: UMFI GEN2) or
3 1/8 cutout (PN: RI-2024-5)
Airspeed screen: Indicated Airspeed / True Airspeed / Digital Altitude
/ Analog (Dial) Representation of Airspeed / Digital VSI / Settable
Kollsman / Outside Air Temperature / System Voltage (8 points of
data on one screen)
of Altimeter Focus Altitude: Digital / Analog (Dial) Representation
altitude / Density Altitude / Outside Temperature / Air Digital VSI /
Settable Kollsman
Technical Specifications / Operation
Last updated July 29 , 2024

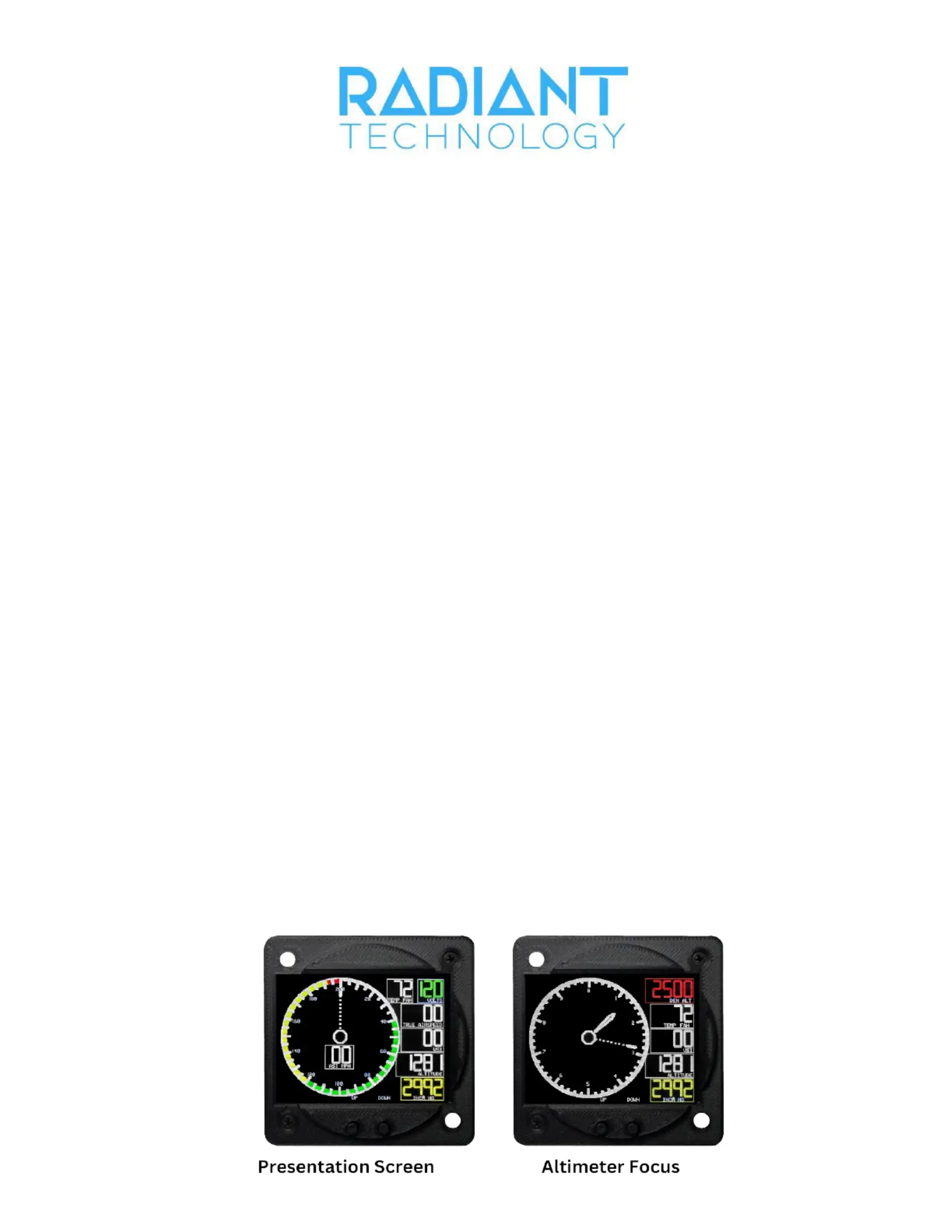

RADIANT Technology’s a Universal GEN2 instrument lineup includes
Multi-Function Instrument (UMFI) with rich airspeed and altimeter
functions . on ONE SCREEN The “Presentation Screen” contains all
primary functions A secondary provides a smooth . “ ”Altimeter Focus
analog representation of altitude and a bonus density altitude
calculation. Access the “ ”Altimeter Focus by pushing any button for 5
seconds.
GENERAL :TECHNICAL SPECIFICATIONS
Sunlight readable, with extremely high
contrast.
• User selectable for airspeed 100 or
200 range (airspeed units).
• User selectable for airspeed knots
or MPH (airspeed ). units
• User selectable for Celsius or
Fahrenheit (outside air
temperature).
• Airspeed: Indicated Airspeed / True
Airspeed / Digital Altitude / Analog
(Dial) Representation of Airspeed /
Digital VSI / Settable Kollsman / Outside
Air Temperature / System Voltage (8
points of data on one screen).
• Altimeter Focus: Digital Altitude / Analog
(Dial) Representation of altitude / Density Altitude / Outside Air
Temperature / Digital VSI / Settable Kollsman
• Dimmable (uses external potentiometer , not included).
• Designed to 2 fit ¼”instrument cutout rectangular with 2 bolts
(included), or 3 1/8” standard panel cutout using included adapter
ring. Will also fit into standard 2 ¼" round instrument cutout with very
slight clipping of the left side of the screen.
• Power +14 Source: +6.5 to volts, 0.125 . approximately ampere
Functions with reduced screen brightness down to 4.5 volts.
• Case is black nylon with chopped carbon fiber, 3D printed.
• Includes external temperature sensor for OAT with included 2 meter
harness (~80 inch).

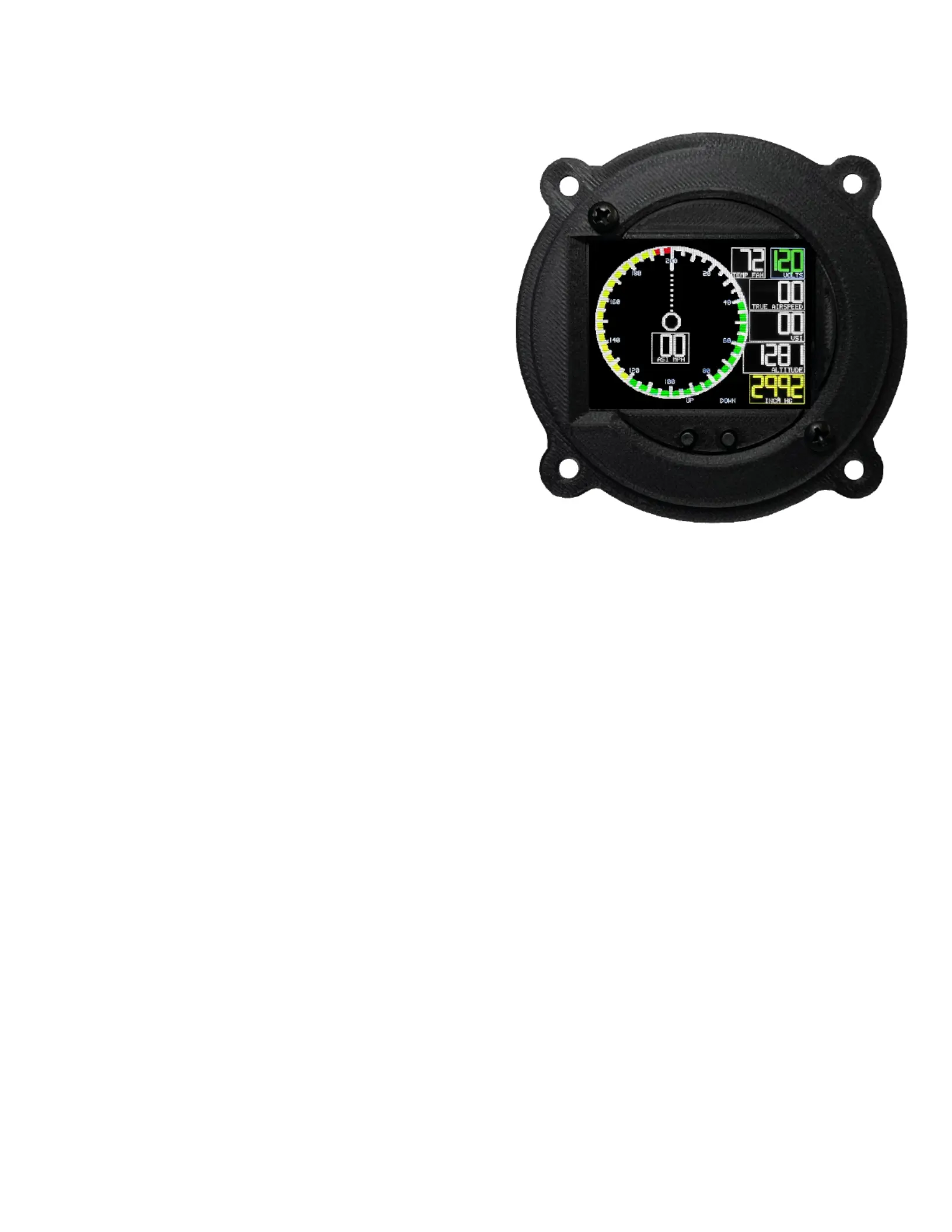

Airspeed Indicator in 3 1/8 cutout
packaging showing digital / analog dial
representation; OAT, system voltage;
True airspeed; VSI; altitude; settable
Kollsman window.
INSTALLATION:
• Install instrument 2 in ¼” panel left side rectangular cutout using two
supplied nuts / bolts. 3 1/8” installation in standard panel cutout
using four supplied nuts / bolts. If the 2 ¼” left side rectangular cutout
is not made, a small portion of the dial indicator on the left side may
be slightly clipped from viewing.
• Attach black wire (ground) to ship ground.
• Attach +6.5 red wire (power) to ship power, to Do +14 volts. not
exceed 14 volts. Use appropriate fuse (1 amp) and avionics master
switch for operation.
• For control of dimming, optionally wire the wire yellow to a 10K
potentiometer, with ONLY +5 volts / ground.) +5 is available via
individual red wire from instrument. Leave the yellow wire
unconnected for continuous full bright operation. If you send us an
email request within one year of purchase, we will mail you a
potentiometer without charge to any US / Canadian address.
• The ASI dongle is attached via the 7 pin connector.
• The back of all s unit has a static port for the altimeter. It may be
attached to an adapter tube (included) into your aircraft’s static
pressure port, or left unconnected.
• The ASI dongle has a “P” (pitot) and a “S” (static) marking. Using the
included adapter tubes, attach these to your pitot tube and your static
pressure port.
• Attach the temperature probe using the included 2 meter cable to any
shaded spot on your airplane, such as the underside of a wing.
