www.radialeng.com

True to the Music

Radial Engineering Ltd.

True to the Music

USER GUIDE

Radial Engineering Ltd.

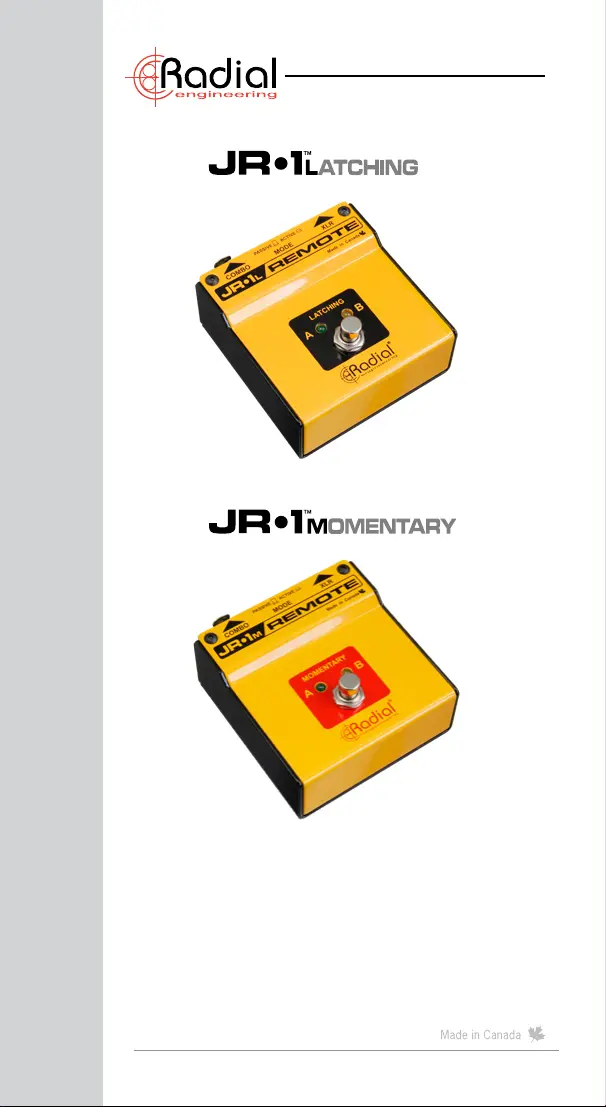

JR•1

™

JR•1

™

FEATURES

1. COMBO: Used to

connect to remote

device, provides locking

connection for ¼" TRS

or XLR-male terminated

cable.

2. ACTIVE/PASSIVE:

Selects active mode for

use with Radial devices

or passive mode for

standard footswitch

operation.

3. XLR-M: Used to connect

to remote device,

provides alternate

connection for XLR-

female cable.

4. A/B LED: Provides

local visual status of

the remotely controlled

device.

5. LATCHING: The JR•1L is

equipped with a latching

footswitch that will

change states each time

it is pressed.

6. MOMENTARY: The

JR•1M is equipped with

a momentary footswitch

that will change states

only when held down.

7. YELLOW & BLACK:

Yellow top is highly visible

on dark stages while

black casing is ‘invisible’

from the audience

perspective.

RADIAL ENGINEERING 3 YEAR

TRANSFERABLE LIMITED WARRANTY

RADIAL ENGINEERING LTD. (“Radial”) warrants this product to be free from defects in material and

workmanship and will remedy any such defects free of charge according to the terms of this warranty.

Radial will repair or replace (at its option) any defective component(s) of this product (excluding fi nish and

wear and tear on components under normal use) for a period of three (3) years from the original date of

purchase. In the event that a particular product is no longer available, Radial reserves the right to replace

the product with a similar product of equal or greater value. In the unlikely event that a defect is uncovered,

please call 604-942-1001 or email [email protected] to obtain an RA number (Return Authorization

number) before the 3 year warranty period expires. The product must be returned prepaid in the original

shipping container (or equivalent) to Radial or to an authorized Radial repair center and you must assume

the risk of loss or damage. A copy of the original invoice showing date of purchase and the dealer name

must accompany any request for work to be performed under this limited and transferable warranty. This

warranty shall not apply if the product has been damaged due to abuse, misuse, misapplication, accident

or as a result of service or modifi cation by any other than an authorized Radial repair center.

THERE ARE NO EXPRESSED WARRANTIES OTHER THAN THOSE ON THE FACE HEREOF

AND DESCRIBED ABOVE. NO WARRANTIES WHETHER EXPRESSED OR IMPLIED, INCLUDING

BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR

A PARTICULAR PURPOSE SHALL EXTEND BEYOND THE RESPECTIVE WARRANTY PERIOD

DESCRIBED ABOVE OF THREE YEARS. RADIAL SHALL NOT BE RESPONSIBLE OR LIABLE FOR

ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS ARISING FROM THE USE

OF THIS PRODUCT. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO

HAVE OTHER RIGHTS, WHICH MAY VARY DEPENDING ON WHERE YOU LIVE AND WHERE THE

PRODUCT WAS PURCHASED.

Radial

®

JR•1

™

User Guide - Part #R870 1219 00 / 10-2021

© Copyright 2014 all rights

reserved. Specifi cations and appearance are subject to change without notice.

Radial Engineering Ltd.

1845 Kingsway Ave., Port Coquitlam, BC V3C 1S9, Canada

Tel: 604-942-1001 • Fax: 604-942-1010

[email protected]

REMOTE FOOTSWITCH

®

WIRING DIAGRAMS

123

467

123

547

12

3

F-XLR

12

3

SHIELD

SHIELD

NC

¼” TRS¼” TRS

M-XLR

12

3

M-XLR

TIP

SLEEVE

TIP

SLEEVE

SHIELDSHIELD

¼” TS (COAX)¼” TS (COAX)

TIP

SLEEVE

¼” TS (COAX)

SHIELD

SHIELD

Standard Coaxial ¼" Guitar Cable

Custom Male-XLR to ¼" Cable

Standard XLR Mic Line

To meet the requirements of California Proposition 65, it is our responsibility to inform you of the following:

WARNING: This product contains chemicals known to the State of California to cause cancer,

birth defects or other reproductive harm.

Please take proper care when handling and consult local government regulations before discarding.

®
