Pagina 1/35
User Manual
Manuel de l’utilisateur
Bedienhandbuch
Manual del Usario

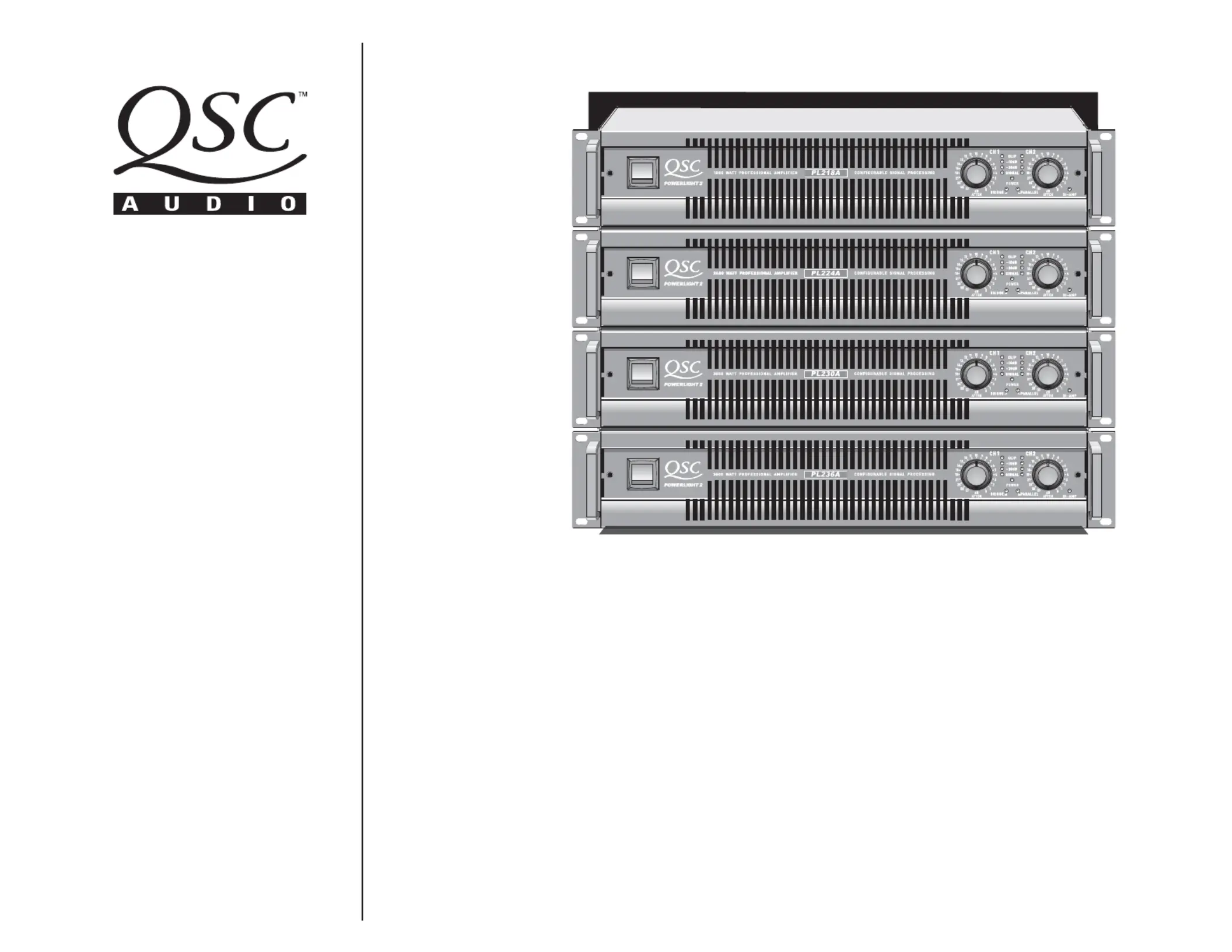

•PL218A
• PL224A
• PL230A
• PL236A
PL2A Audio Power Amplifiers
with Analog Signal Processing
POWERLIGHT 2A
TD-000089-00
Rev.B
*TD-000089-00*
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous” voltage within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to humans.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the product.
CAUTION: To reduce the risk of electric shock, do not remove the cover. No user-serviceable parts inside.
Refer servicing to qualified personnel.
WARNING: To prevent fire or electric shock, do not expose this equipment to rain or moisture.
FCC INTERFERENCE STATEMENT
NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in
accordance to the instructions , may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by switching the equipment off & on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio or TV technician for help.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
© Copyright 2000, 2007 QSC Audio Products, Inc.
QSC® is a registered trademark of QSC Audio Products, Inc.
PowerLight™ is a trademark of QSC Audio Products, Inc.
“QSC” and the QSC logo are registered with the U.S. Patent and Trademark Office
All trademarks are the property of their respective owners.
2
TABLE OF CONTENTS
Explanation of Graphical Symbols.......................................................2
FCC Interference Statement....................................................................2
INTRODUCTION:
PL2A Series Overview.................................................4
Front Panel...................................................................4
Rear Panel....................................................................5
Side Panel....................................................................5
FEATURES & SETUP:
Rear Panel Switches-
INPUT CONFIGURATION..............................................6
MODE...........................................................................7
DATAPORT INPUT SIGNAL..........................................8
GAIN-SENSITIVITY SELECT.........................................9
Side Panel Switches and SIP networks-
Subaudio Filter & Subaudio Frequency....................10
Lo Frequency Delay and HF ATTEN..................................11
HORN BOOST.............................................................12
POWER LIMITER........................................................13
CLIP LIMITER..............................................................15
Crossover & Delay SIP Networks.............................16
DataPort, Front Panel LEDs, Gain Controls-
Basic Overview...........................................................18
INSTALLATION:
Rack mounting & Mounting Dimensions.................19
Fan Cooling & AC Mains..........................................20
CONNECTIONS:
Inputs................................................................................21
Outputs............................................................................22
SECURITY PANEL USE & INSTALLATION...................................................24
OPERATION:
Gain Controls................................................................25
AC Power Switch...............................................................25
Front Panel LED Indicators.................................................25
Normal operating levels......................................................25
TROUBLESHOOTING.......................................................................................26
TECHNICAL OVERVIEW & BLOCK DIAGRAM............................................28
SPECIFICATIONS..............................................................................................30
WARRANTY INFORMATION..........................................................................32
HOW TO CONTACT QSC AUDIO PRODUCTS..............................................32
BLANK SETUP SHEETS...................................................................................33
3
