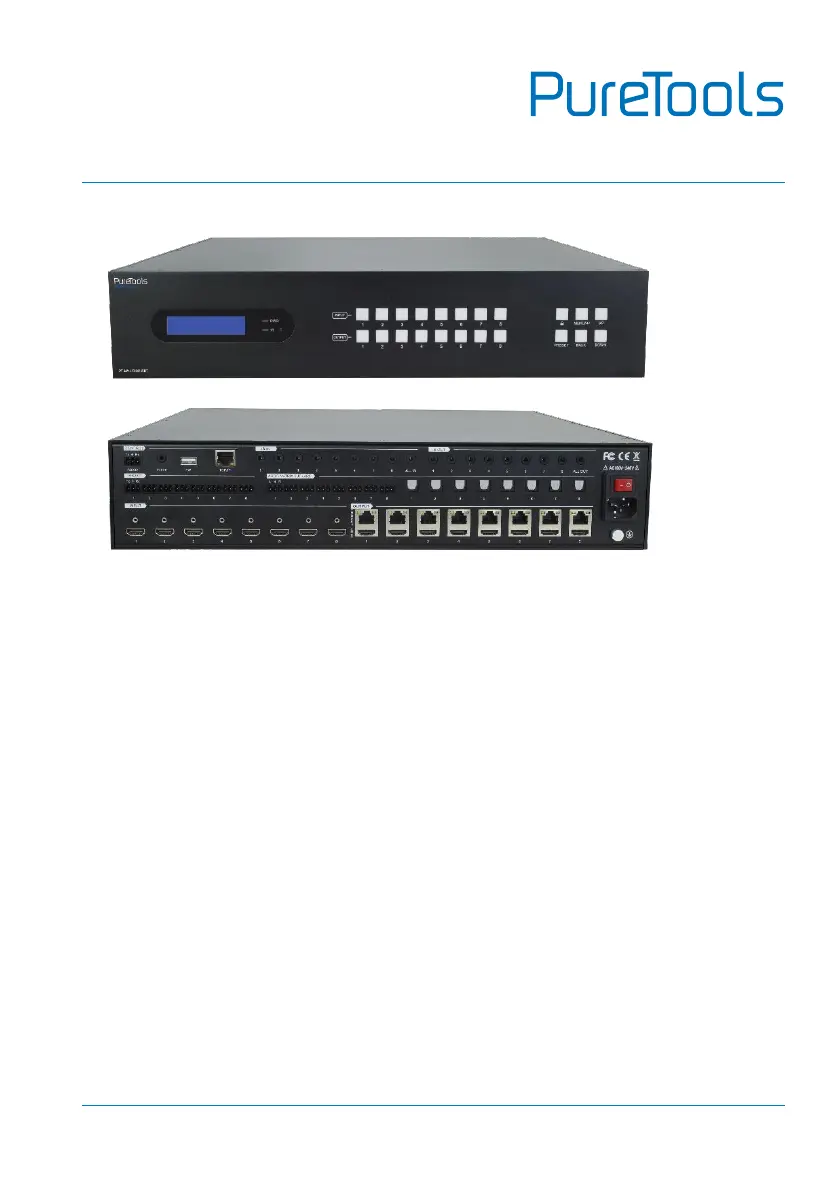

Pagina 1/75

User Manual

PT-MA-HD88HDBT

User Manual

8x8 HDBaseT and HDMI Matrix

Model PT-MA-HD88HDBT

Designed in Germany

User Manual

PT-MA-HD44HDBT

Preface

Read this user manual carefully before using this product. Pictures shown in this

manual are for reference only. Different model layouts and specifications are subject

to the physical product.

This manual is for operation instructions only, not for any maintenance usage.

In the constant effort to improve our product, we reserve the right to make changes in

functions or parameters without prior notice or obligation.

Trademarks

Product model and logo are trademarks. Any other trademarks mentioned in this

manual are acknowledged as the properties of the trademark owner. No part of this

publication may be copied or reproduced without the prior written consent.

FCC Statement

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communications. It has been tested and found to comply with

the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference in

a commercial installation.

Operation of this equipment in a residential area is likely to cause interference, in

which case the user at their own expense will be required to take whatever measures

may be necessary to correct the interference.

Any changes or modifications not expressly approved by the manufacture would void

the user’s authority to operate the equipment.

Product specificaties

Merk:	PureTools
Categorie:	Schakelaar
Model:	PT-MA-HD88DA
Ingebouwd display:	Nee
Gewicht:	3000 g
Breedte:	236 mm
Diepte:	436 mm
Hoogte:	44 mm
Gewicht verpakking:	4630 g
Breedte verpakking:	294 mm
Diepte verpakking:	490 mm
Hoogte verpakking:	77 mm
Gebruikershandleiding:	Ja
LED-indicatoren:	Ja
Inclusief AC-adapter:	Ja
Land van herkomst:	China
Kleur behuizing:	Zwart
Vermogensverbruik (max):	- W
HDCP:	Ja
HDR-ondersteuning:	Nee
Aansluiting voor netstroomadapter:	Ja
RS-232 port:	1
HDMI versie:	2.0
Aantal HDMI-invoerpoorten:	8
Remote (IR) ingang:	1
Digitale audio, optische uitgang:	8
Output current:	2710 mA
Spanning:	24 V
HDCP versie:	2.3
Inclusief schroeven:	Ja
Aantal schroeven:	6
Bandbreedte:	18 Gbit/s
RJ-45 invoer ports:	1
Aantal HDMI-uitvoerpoorten:	8
Afstandsbediening inbegrepen:	Ja
Type product:	Schaalmatrixschakelaar
Rekbevestigingspakket:	Ja
Inclusief IR-ontvanger:	Ja
Bidirectioneel:	Ja
EDID-management:	Ja
Analoge audio-uitgang terminalpoorten:	8
