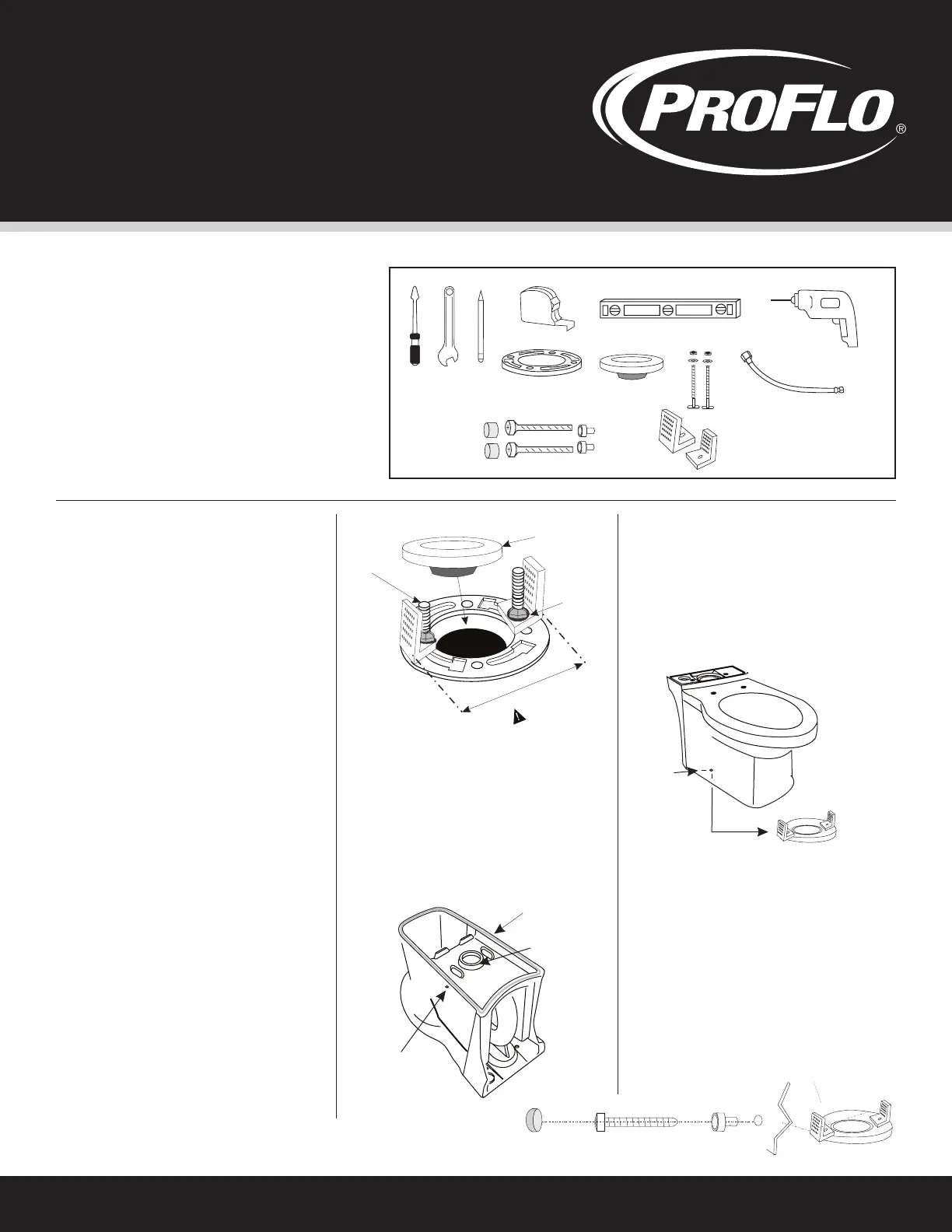

InstallatIon InstructIons
skIrted het two pIece toIlet
Tools Needed
A. Screw Driver
B. Adjustable Wrench
C. Marker
D. Tape Measure
E. Level
F. Drill
G. Toilet Flange
H. Wax Ring
I. T-bolts (2), Nuts (2),
Washers (2)
J. Flexible Supply Tube
Items Included
K. Fixing Screws (2),
Decorative Caps (2),
Cap Base (2)
L. Flange Connecting
“L” Brackets (2)
Note:Views in this illustrations are for general representation and may not necessarily define the exact contours of the product.
Remove Old Toilet
Shut off water supply line to toilet. Flush toilet
and remove all water from the bowl and tank
using a sponge. Disconnect the water supply
from the tank. Remove the tank from bowl,
use a screw driver and adjustable wrench or
socket wrench. Loosen toilet bowl flange nuts
under bolt caps. Remove old bowl by carefully
lifting it off the floor. Clean flange and plug
drain with a rag to prevent sewer gas from
escaping. Replace or repair if required.
Install Connecting “L” Brackets and
the Wax Ring Seal
1. Check the rough-in dimension, this is the
distance from wall to center of outlet.
2. Place two new T-connection bolts into the
slot on the toilet flange.
3. Install the connecting “L” brackets onto
the T-bolts with the flat side toward the
outside of the flange, adjust the spacing
on the outside of the bracket to be 8-1/4"
(210mm), now attach the washers and nuts
to the T-connection bolts and tighten the “L”
brackets snug and direct to the floor flange.
4. Set the wax ring into the outlet between the
T-connection bolts.
Install Water Closet Base
1. Place toilet bowl upside down on clean
surface.
2. Install a bead of sealant or plumbers putty
around the outside foot base on 3 sides.
3. Now lift the bowl over the flange and
lower the bowl into place allowing the “L”
Brackets to align with the holes on the skirt
of the toilet bowl.
4. Firmly push the toilet down seating the bowl
horn into the wax ring seal.
5. Set the bowl in place by gently rocking back
and forth on the bowl rim. The “L” brackets
should extend up through the slots on both
sides of the outlet horn.
6. With bowl firmly set, insert fixing screws
into the seat base, slide the connection
screw and base into the flange
connection holes and tighten on both sides
of the bowl evenly until snug.
7. Snap decorative cap over connection
screw head.
A. B. C.
D.
E.
F.
G.H.I.
J.
K.
L.
Flange
Connection
Holes
Sealant or
Plumber Putty
Outlet Horn
Decorative CapConnection ScrewBase
Floor
Outlet
Flange
8-1/4" (210mm)
Important
T-Bolts
T-Bolt,
Nuts &
Washer
Wax Ring
NOTE: If installing the PF9002SWH please disregard the installation instructions included with the tank and use this set of installation instructions
