R751WO

Remote Sensing Installation Manual

PRO1 Technologies

P.O. Box 3377

Springeld, MO 65804

Toll Free : 888-776-1427

Web: www.pro1iaq.com

Hours of Operation: M-F 9AM - 6PM Eastern

Table of Contents

Table of Contents

Installation Tips

Thermostat Quick Reference

Remote Sensor Communication

Remote Sensor Conguration

Benets To Using The PROsync

Wireless System

Technician Setup

Specications

Page

A trained, experienced technician

must install this product.

Una version en espanol de este

manual se puede descargar en la

pagina web de la compania.

Rev. 2321

Installation Tips

2

2-4

5-6

1

1

Installation TipsInstallation Tips

3

4

Do not operate the cooling

system if the outdoor

temperature is below 50˚F

(10˚ C) to prevent possible

compressor damage.

Caution: Equipment

Damage Hazard

U.S. Registered Trademark. Patents pending

Copyright 2023 All Rights Reserved.

This manual covers the following models:

• R751WO(For use with T755WHO PROsync wireless system).

Congratulations on purchasing our Wireless System.

This remote sensor was designed to the highest reliability

and ease of use standards. Thank you for choosing our

quality products.

Carefully read these instructions.

You could damage this product or

cause a hazardous condition if you

fail to follow these instructions.

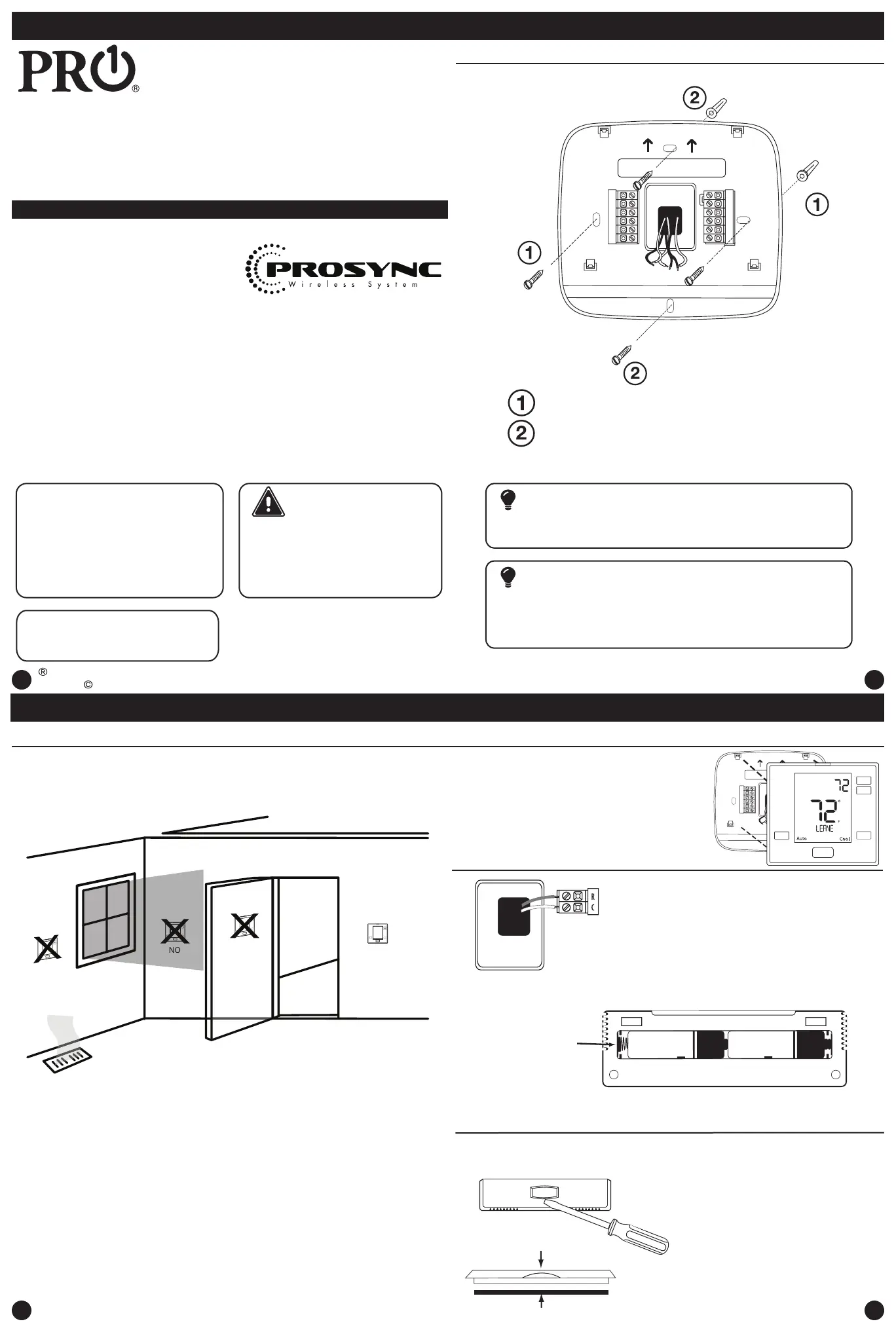

Recommended Wall Mounting Locations

The remote sensor should be mounted or placed approximately 4 to 5 feet above the

oor. Select an area with average temperature and good air circulation.

Do not mount or place Remote Sensors in locations:

• Close to hot or cold air ducts

• That are in direct sunlight

• With an outside wall behind the thermostat

• In areas that do not require conditioning

• Where there are dead spots or drafts (in corners or behind doors)

• Where appliances could radiate heat

• Do not set it next to or on hot appliances

• Do not put it in your pocket or hold in your hands for a long period of time.

• Body heat will distort the temperature reading.

NO

NONOYES

7

8-10

11-12

Vertical Mount

Horizontal Mount

For horizontal mount put one screw on

the left and one screw on the right.

All of our products are mercury free. However, if the product you are

replacing contains mercury, dispose of it properly. Your local waste

management authority can give you instructions on recycling and

proper disposal.

Mercury Notice

Failure to disconnect the power before beginning to install this product

can cause electrical shock or equipment damage.

Installation Tip: Electrical Hazard

For vertical mount put one screw on

the top and one screw on the bottom.

Thermostat Subbase Installation

Mount Thermostat

Align the 4 tabs on the subbase with

corresponding slots on the back of the

thermostat, then push gently until the

thermostat snaps in place.

Battery Installation

Battery installation is optional if thermostat is

hardwired (R and C terminal connected to 24V

power).

Important:

High quality alkaline batteries are recommended.

Rechargeable batteries or low quality batteries

do not guarantee a 1-year life span.

Insert 2 AA

Alkaline batteries

(included). High

quality alkaline

batteries are

recommended.

Located on the back of the thermostat.

Gently slide a screwdriver into the

bottom edge of the badge. Gently

turn the screwdriver counter

clockwise. The badge is held on by

a magnet in the well of the battery

door. The badge should pry o easily.

DO NOT USE FORCE.

About The Private Label Badge

All of our thermostats use the same universal magnetic badge. Visit the

company website to learn more about our free private label program.

Magnet in door

Use the bevel on lower ridge

Set At

13-16

16

*PM-R751WO-IM-2321*

PM-R751WO-IM-2321
