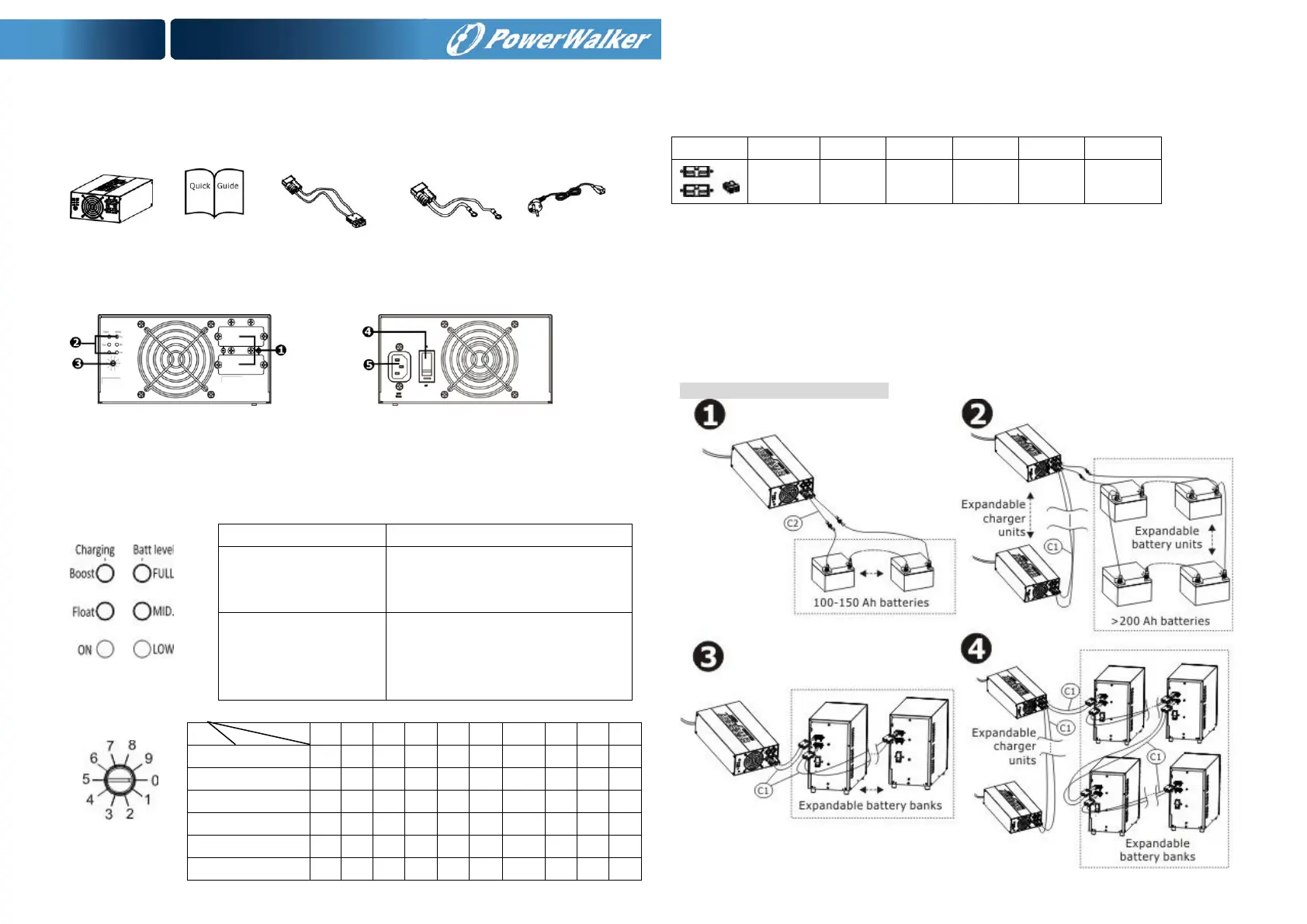

1.Package Contents

You should have received the following items inside of package:

Charger unit Quick Guide C1 connector cable C2 connector cable AC input

(option) power cord

2.Product Overview

Panel View:



DC connector

 Current selection switch (Check



LED indicators (Check IndicatorCurrent Selection Table for the details)

Chart for the details)



Power switch

 AC input

Indicator Chart:

Status Indicators

Battery is charging.

In boost status

In floating status

“On” and “Boost” LEDs are on.

“On” and “Float” LEDs are on.

Battery Level

In full level

In mid. level

In low level

“Full” LED is on.

“MID.” LED is on.

“LOW” LED is on.

Current Selection Table (Amp)

Rotary Dip

Switch

Model

0 1 2 3 4 5 6 7 8 9

241 2 4 8 12 16 20

361 3 6 9 12 15

481 3 6 9 12 15

721 2 4 6 8 10 12

961 2 4 6 8 10

1201 2 4 6 8

3.Installation and Initial Startup

NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is

damaged.

Below is the DC connector color reference

Model

24

36

48

72

96

120

White

24V

Red

36V

Grey

48V

Blue

72V

Black

96V

Yellow

120V

Charge Battery:

1.If possible, disconnect all loads from the batteries by removing battery cables, opening a

disconnect switch, or switching loads off.

2.Apply AC power to the charger unit. This charger can either work alone to charge batteries

or work with UPS to charge the external batteries. Please follow below charts to install the

charger for different applications.

Stand-alone Charging System

PowerWalker Charger EB Series

Selection

Current
