SPECIFICATIONS

MODEL NO.: PCX-10F

10 Farad Hybrid Super Capacitor with 3-Digit Blue Voltage Meter

Capacitance.............................. 10,000.000 micro farad (10 Farad)

Working Voltage........................................... 16 DCV

Surge Voltage................................................. 20 DCV

E. S. R. (Equivalent Series Resistance)......... 0.0015 ohm @ 120Hz / 25°C

Capacitance Tolerance....................................± 10 %

MODEL NO.: PCX-20F

20 Farad Hybrid Super Capacitor with 3-Digit Blue Voltage Meter

Capacitance.............................. 20,000.000 micro farad (20 Farad)

Working Voltage........................................... 16 DCV

Surge Voltage................................................. 20 DCV

E. S. R. (Equivalent Series Resistance)…..... 0.0015 ohm @ 120Hz / 25°C

Capacitance Tolerance...................................± 10 %

MODEL NO.: PCX-30F

30 Farad Hybrid Super Capacitor with 3-Digit Blue Voltage Meter

Capacitance.............................. 30,000.000 micro farad (30 Farad)

Working Voltage........................................... 16 DCV

Surge Voltage................................................. 20 DCV

E. S. R. (Equivalent Series Resistance)……. 0.0015 ohm @ 120Hz / 25°C

Capacitance Tolerance...................................± 10 %

DETAILED FEATURES:

a) 3 digit super bright blue voltage meter measures 0.1V DVC range.

b) Blue LED lighting window illuminates, and goes to sleep status when the amplifier is

switched off and there’s no voltage variation within 3 minutes.

c) Reverse polarity connection warning buzzer. If the capacitor is connected incorrectly

by reversing the positive and negative wires during the installation process, the buzzer

on the PCB will ring till you correct polarity connection.

d) Over voltage limit and low battery voltage limit warning. When the system voltage

goes ABOVE 17 DCV or BELOW 10 DCV, the buzzer will issue warning sound.

INSTALLATION AND MOUNTING:

Securely mount the capacitor using supplied hardware. Be careful when choosing

mounting location to avoid moving parts and possible exposure to moisture.

CHARGING THE CAPACITOR AND WIRING:

The capacitor must be charged before connecting the Power and Ground cables to the

capacitor. Failure to charge the capacitor will result in a large spark generated from the

rapid inflow of current.

1. To charge the capacitor:

Make capacitor positive terminal connections with amplifier and tighten the bolt. Do

not over-tighten the bolt!

Caution:

Stripped terminals are not covered under the capacitor’s warranty.

2. Connect the ground cables of the battery, amplifier, and capacitor separately to

chassis.

3. Place the supplied charging resistor between the positive terminal of the capacitor and

the battery’s positive terminal. After 5~60 seconds, the capacitor will be fully charged.

Caution:

The resistor will become hot!

4. Immediately after the charging process, take away the charging bulb from the

connecting wire, and connect the positive cable to the positive terminal on the

capacitor.

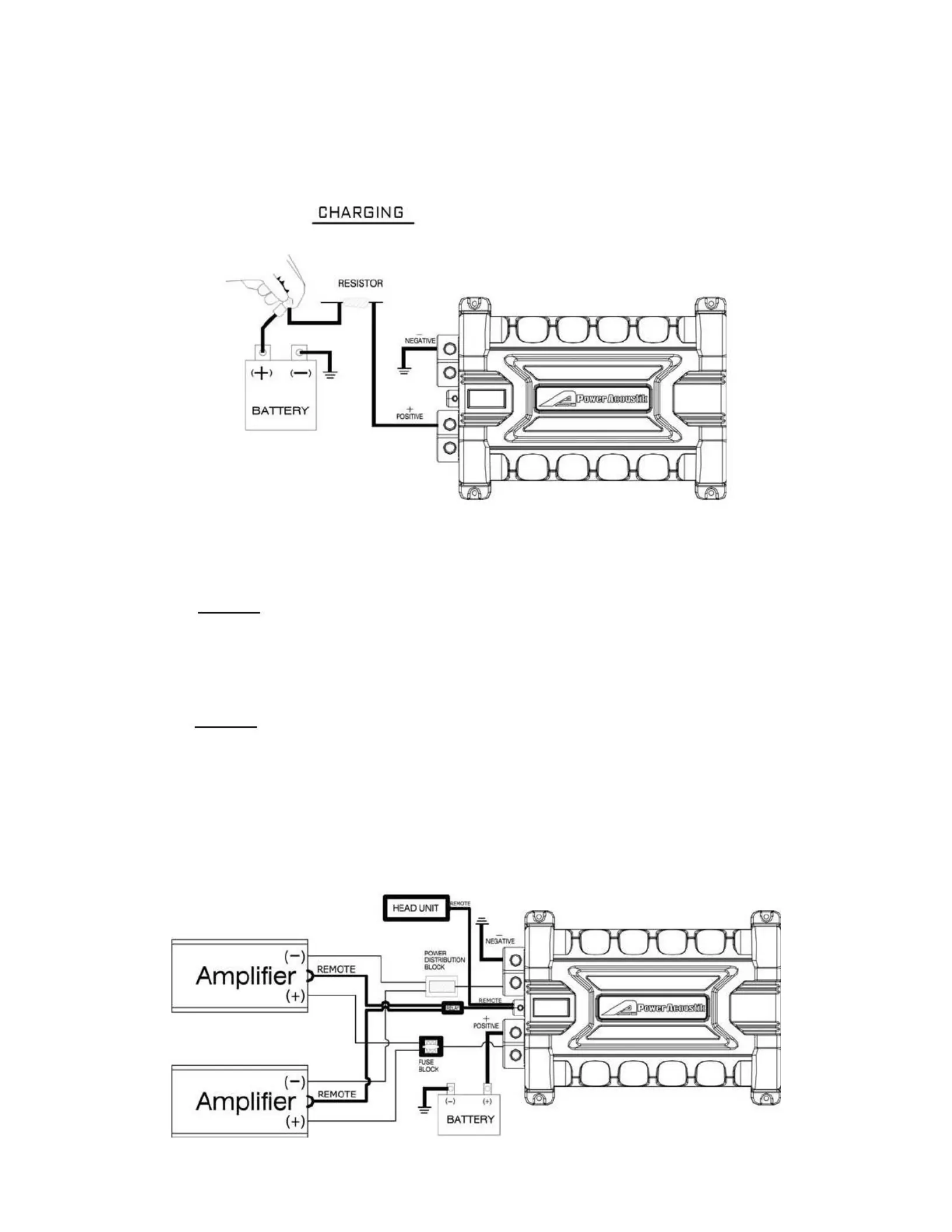

CAPACITOR WIRING DIAGRAM:

Product specificaties

Merk:	Power Acoustik
Categorie:	Niet gecategoriseerd
Model:	PCX-10F
Kleur van het product:	Zilver
Soort voeding:	DC
Impedantie:	0.0015 Ohm
Spanning:	12 - 16 V
Capaciteit:	0.00000001 nF
Capaciteit tolerantie:	10 procent
