1. Package Contents

Thank you for purchasing PLANET IEEE 802.3at Power

over Ethernet plus Injector, POE-163/POE-165.

Model LAN Port Speed PoE

Standard

PoE

Budget

POE-163 10/100/1000Mbps

802.3at/

802.3af 30 watts

POE-165 10/100/1000Mbps/

2.5Gbps/5Gbps

“802.3at PoE+ Injector” used in this user’s manual

refers to the POE-163/POE-165.

Unpack the box of the IEEE 802.3at Power over

Ethernet plus Injector carefully and the box should

contain the following items:

The IEEE 802.3at Power over Ethernet plus Injector x 1

User’s Manual x 1

AC Power Cord x 1

If any of these are missing or damaged, please contact

your dealer immediately. If possible, retain the carton

including the original packing material, and use them

again to repack the product in case there is a need to

return it to us for repair.

2. Product Features

Interface

 2 RJ45 interfaces

 1-port Data + Power output

 1-port Data input

 1 AC 100-240V input power socket

Power over Ethernet

 Power over Ethernet Mid-span PSE

 IEEE 802.3at PoE Plus compliant

 Backward compatible with IEEE 802.3af PD device

 Supports PoE Power up to 30 watts for PoE+ port

 Auto-detects PoE IEEE 802.3at/802.3af equipment

and devices for preventing damage from incorrect

installation

 Remote power feeding up to 100m

Hardware

 Plastic case

 LED indicators for Power LED and Active LED (PoE

ready-in-use)

Standard Compliance

 IEEE 802.3 10BASE-T

 IEEE 802.3u 100BASE-TX

 IEEE 802.3ab 1000BASE-T

 IEEE 802.3bz 2.5Gbps/5GbpsBASE-T

(POE-165 only)

 IEEE 802.3af Power over Ethernet (802.3at Type 1)

 IEEE 802.3at Power over Ethernet (802.3at Type 2)

 FCC Part 15 Class B, CE

Note

PSE (Power Sourcing Equipment) is

a device (switch or hub for instance) that

will provide power in a PoE setup. The

maximum continuous output power allowed

for each IEEE 802.3at/IEEE 802.3af device

is 30W/15.4W.

PDs (Powered Devices) like IP phones,

network cameras and wireless access

points, etc. are PoE-enabled terminals and

thus they are power sourcing equipment

(PSE).

3. Product Specications

Product POE-163 POE-165

Hardware Specications

Interface

“Data”

Input Port 1 x RJ45 STP

“PoE (Data

+ Power)”

Output Port

1 x RJ45 STP

AC Input

Power

Socket

LED Indicator

System: Power x 1 (Green)

PoE Port: Active, PoE ready/

In Use x 1 (Green)

Network Cable

10BASE-T: 2-pair UTP Cat. 3,

4, 5, up to 100m (328ft)

100BASE-TX: 2-pair UTP Cat.

3, 4, 5, up to 100m (328ft)

1000BASE-T: 2-pair UTP Cat. 5,

5e, 6 up to 100m (328ft)

2.5Gbps/5GbpsBASE-T: 2-pair

UTP Cat. 5e, 6, 7 up to 100m

(328ft)*

EIA/TIA- 568 100-ohm STP

(100m)

Data Rate

10/100/

1000Mbps

10/100/

1000Mbps/

2.5Gbps/5Gbps

Dimensions

(W x D x H) 115 x 62.5 x 31 mm

Weight 185g 204g

Unit Output Voltage DC 50-54V, 0.6A

Power Requirements 100-240V AC, 50/60Hz, 0.75A

Power Consumption 30 watts max.

Number of devices

that can be powered 1

Operating

Temperature 0 ~ 50 degrees C

Storage Temperature -10 ~ 70 degrees C

Operating Humidity 5 ~ 95%, relative humidity,

non-condensing

Storage Humidity 5 ~ 95%, relative humidity,

non-condensing

Power over Ethernet

PoE Standard IEEE 802.3at Power over

Ethernet Plus/Mid-span PSE

PoE Power Output DC 50-54V/30 watts

PoE Power Supply

Type Mid-span

Power Pin Assignment 4/5(+), 7/8(-)

Standards Conformance

Standards Compliance

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast

Ethernet

IEEE 802.3ab 1000BASE-T

Gigabit Ethernet

IEEE 802.3bz 2.5Gbps/5Gbps

BASE-T Gigabit Ethernet*

IEEE 802.3af Power over

Ethernet (802.3at Type 1)

IEEE 802.3at Power over

Ethernet (802.3at Type 2)

Regulatory

Compliance FCC Part 15 Class B, CE

* Remark: For model POE-165 only

4. Product Outlook

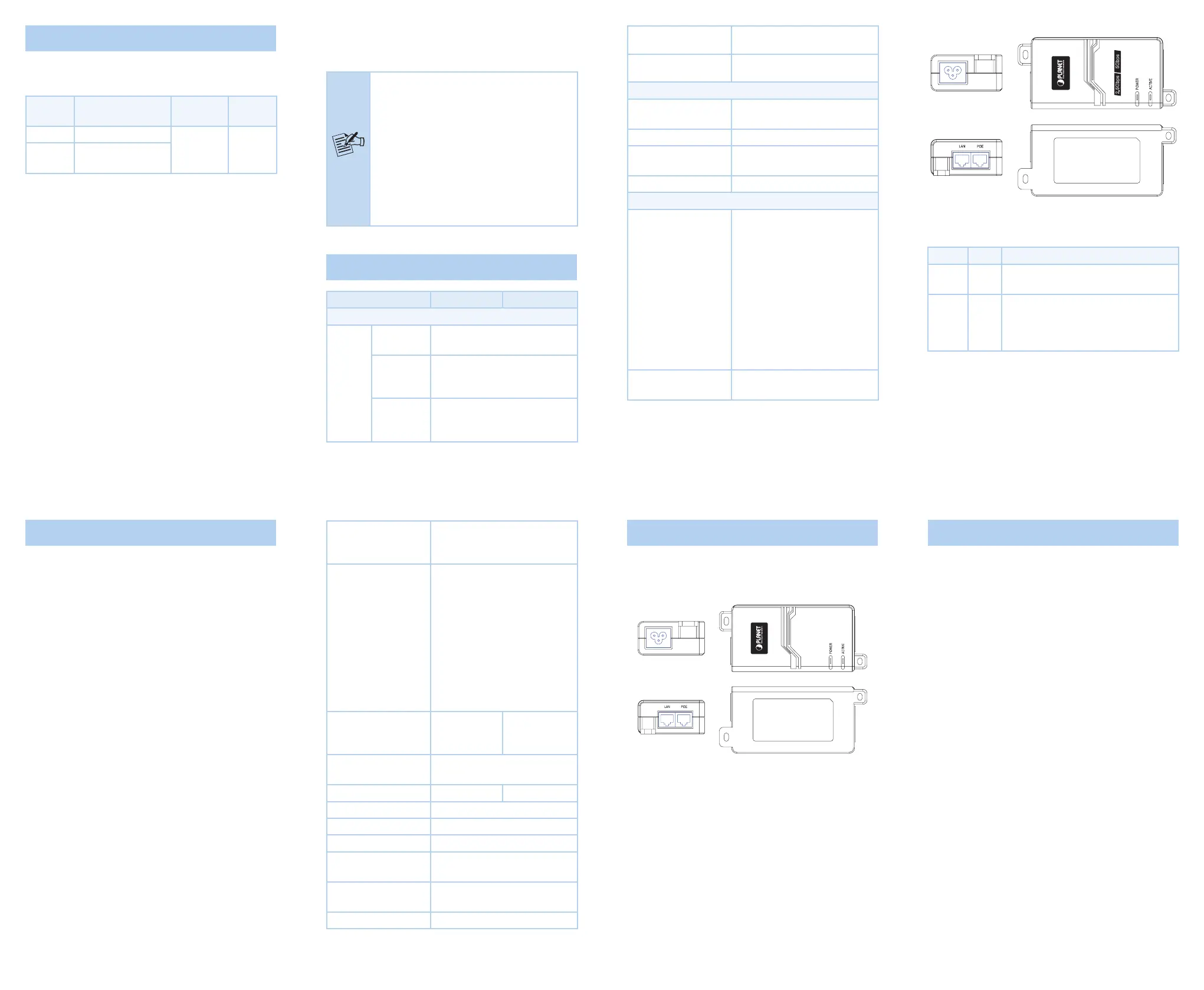

Figures 1 & 2 show an overview of the 802.3at PoE+

Injector

Rear Panel

Front Panel

Top Panel

Bottom

Figure 1: POE-163 Outlook

Rear Panel

Front Panel

Top Panel

Bottom

2.5Gbps 5Gbps

10/100/1G

Figure 2: POE-165 Outlook

LED Indicators

LED Color Function

POWER Green Lights to indicate that the 802.3at PoE+

Injector has power.

ACTIVE Green

Lights o to indicate the port is not

providing 50-54V DC in-line power.

Lights to indicate the port is providing

50-54V DC in-line power.

5. Hardware Installation

The following section describes the hardware features

of the 802.3at PoE+ Injector. Before connecting any

network device to the 802.3at PoE+ Injector, read this

chapter carefully.

This POE-163 provides three dierent running speeds –

10Mbps/100Mbps/1000Mbps and the POE-165 provides

ve dierent running speeds – 10Mbps/100Mbps/1000M

bps/2.5Gbps/5Gbps in the same device for automatically

distinguishing the speed of the incoming connection.

Please refer to following sections for detailed information

about the IEEE 802.3at Power over Ethernet plus

Injector.

5-1 Before Installation

Before your installation, it is recommended to check

your network environment. If there is any IEEE 802.3at

devices that need higher power to power on and work

normally, the 802.3at PoE+ Injector can provide you

with power for this Ethernet device easily. The 802.3at

PoE+ Injector is equipped with an AC power cord with

100-240V AC input and injects DC 50-54V power into

the pin of the twisted-pair cable (pair 4, 5 [+] and pair

7, 8 [-]).

If a power socket for the AC-DC adapter of your non

IEEE 802.3at networked device is not available, the

802.3at PoE+ Injector and POE-162S can provide you

with DC power for this Ethernet device easily.

- 9 -

- 10 -

- 11 -

- 12 - - 13 -

Note

The 802.3at PoE+ Injector and POE-162S

can be installed in pair. However, the

use of third-party device is allowed if the

device complies with IEEE 802.3at Power

over Ethernet.

The 802.3at PoE+ Injector Installation

1. Connect the AC power cord to the of the “AC slot”

802.3at PoE+ Injector; the LED will be “POWER”

steadily on.

2. Connect a standard network cable from a switch/

workstation to the port of the 802.3at PoE+ “LAN”

Injector.

3. And connect the Injector to a remote device like a

PoE PTZ IP camera over the UTP cable.

** The 802.3at PoE+ Injector can directly connect with

any IEEE 802.3at/802.3af end-nodes, such as PTZ

IP and speed dome cameras, color touch-screen

Voice over IP (VoIP) telephones, multi-channel wire-

less LAN access points, etc. The installation is shown

in Figure 3 below.

Switch

100 meters

PoE

PoE PTZ

IP Camera

802.3at PoE Injector

1000BASE-T UTP

PoE

1000BASE-T UTP with PoE

Power Line (AC)

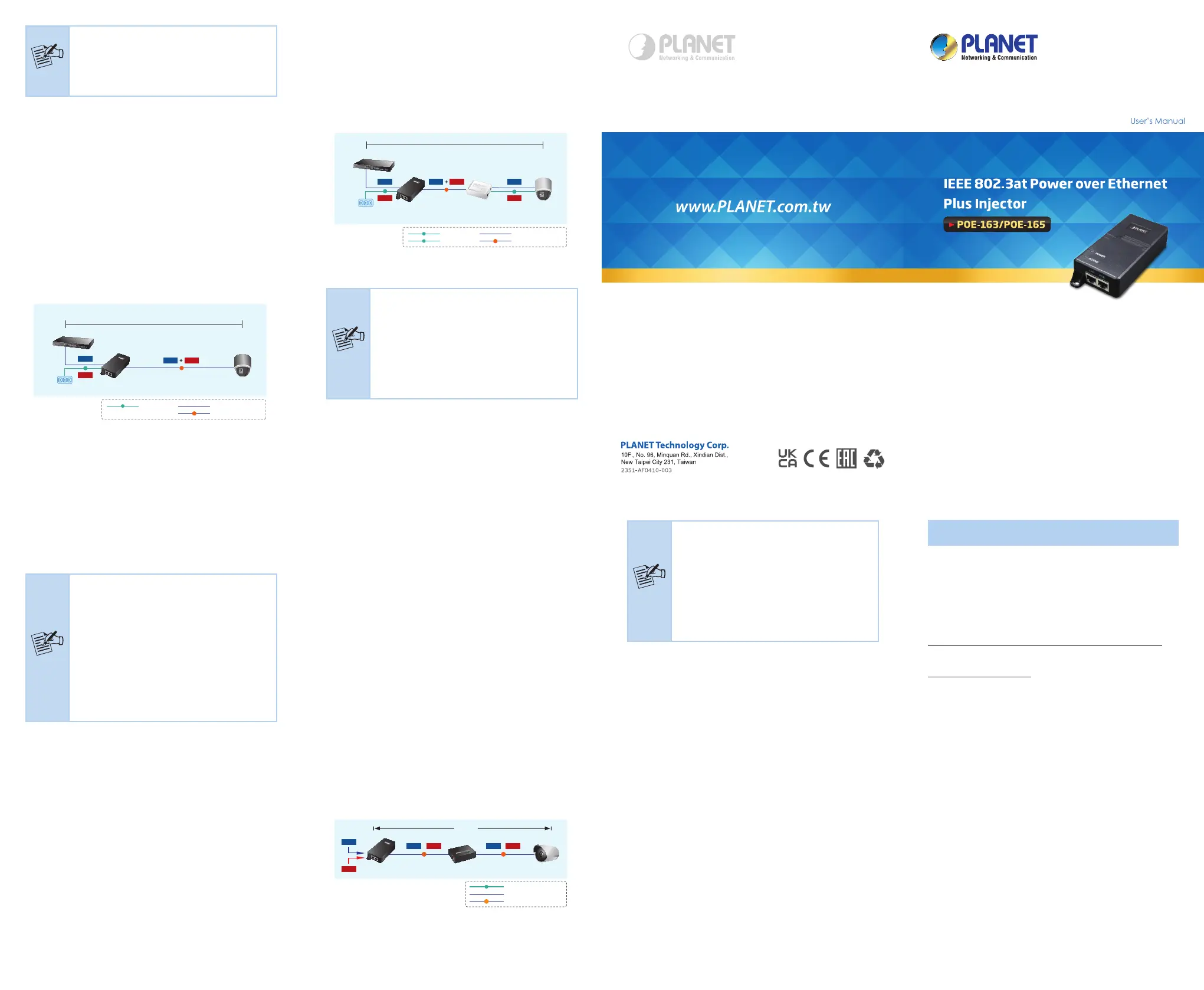

Figure 3: Connection to IEEE 802.3at/802.3af Devices

When the 802.3at PoE+ Injector detects the existence

of an IEEE 802.3at/802.3af device, the ACTIVE LED

indicator will be steadily on to show it is providing

power.

Note

1. Since the 802.3at PoE+ Injector PoE port

supports 50-54V DC PoE power output,

please check and assure the powered

device’s (PD) acceptable DC power range

is 50-54V DC. Otherwise, it will damage

the PD.

2. If the connected device is not fully

complying with IEEE 802.3at/802.3af

Power over Ethernet or in-line power

device, the LED indicator of the 802.3at

PoE+ Injector will not be steadily on.

The 802.3at PoE+ Injector and POE-162S, the

IEEE 802.3at Injector Splitter Installation

1. Connect the AC power cord to of the “AC slot”

802.3at PoE+ Injector; the LED will be “POWER”

steadily on.

2. Connect a standard network cable from the “POE”

port of the 802.3at PoE+ Injector to the “PoE In”

port of the POE-162S. The LED of the “ACTIVE”

802.3at PoE+ Injector and PoE-in-use LED of the

POE-162S will continue to be lit.

3. Connect a standard network cable from a switch/

workstation to the port of the 802.3at PoE+ “LAN”

Injector.

4. Connect the UTP cable in the package from the

“Ethernet” port of the POE-162S to the RJ45 port of

a remote device.

5. Adjust the proper DC power output and connect the

DC plug from the of the POE-162S to a “DC OUT”

remote device.

6. Power on the remote device and its power LED indi-

cator will remain on.

Switch

Power 12V/24V

POE-162S

100 meters

PoE

AC DC

Non-PoE PTZ

IP Camera

1000BASE-T UTP

PoE

1000BASE-T UTP with PoE

Power Line (AC)

Power Line (DC)

802.3at PoE Injector 802.3at PoE

Splitter

Figure 4: Connection architecture over 802.3at PoE+

Injector/POE-162S

Note

1. Owing to IEEE 802.3at/802.3af Power

over Ethernet standards, the 802.3at

PoE+ Injector will not inject power

over the cable if not connected to IEEE

802.3at/802.3af devices.

2. Please ensure the POE-162S output

voltage is correct before applying power

to remote devices.

The 802.3at PoE+ Injector and POE-E201 IEEE

802.3at PoE+ Extender Installation

1. Connect the AC power cord to the of the “AC slot”

802.3at PoE+ Injector; the LED will be “POWER”

steadily on.

2. Connect a standard network cable from the “POE”

port of the 802.3at PoE+ Injector to the port of “IN”

the POE-E201.

3. The 802.3at PoE+ Injector delivers both Ethernet

Data and PoE power over UTP cable to the POE-E201

and the LED of the 802.3at PoE+ Injector “ACTIVE”

and the LED of the POE-E201 will continue “PoE IN”

to be lit.

4. Connect an additional standard network cable that

will be used to connect from the port of the “OUT”

POE-E201 to a remote Powered Device (PD).

5. The “OUT” port of the power injector transmits DC

voltage over the standard network cable and trans-

fers data and power simultaneously between the

802.3at PoE+ Injector and the PD.

6. Once the POE-E201 detects the existence of an IEEE

802.3at/802.3af device, the LED indi“PoE OUT” -

cator will be steadily on to show it is providing power.

802.3at

PoE Extender

PoE PoE

100 meters100 meters

200 meters

Power Line (AC)

1000BASE-T UTP

PoE

1000BASE-T UTP with PoE

PoE IP Camera

802.3at PoE Injector

Figure 5: Connection architecture over 802.3at PoE+

Injector/POE-E201

Note

1. If the connected device is not fully

complying with IEEE 802.3at/802.3af

standards or in-line power device, the

PoE OUT LED indicator of the POE-E201

will not be steadily on.

2. Owing to IEEE 802.3at/802.3af

standards, the POE-E201 will not inject

power over the cable if a standard IEEE

802.3at/802.3af device is not connected.

Customer Support

Thank you for purchasing PLANET products. You can

browse our online FAQ resource at the PLANET Web

site rst to check if it could solve you issue. If you

need more support information, please contact PLANET

support team.

PLANET online FAQs:

http://www.planet.com.tw/en/support/faq.php?type=2

Support team mail address:

support@planet.com.tw

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.

Product specificaties

Merk:	Planet
Categorie:	Niet gecategoriseerd
Model:	POE-165
Gewicht:	204 g
Breedte:	115 mm
Diepte:	62.5 mm
Hoogte:	31 mm
LED-indicatoren:	Ja
Aantal Ethernet LAN (RJ-45)-poorten:	1
Certificering:	FCC Part 15 Class B, CE
Plug and play:	Ja
Netwerkstandaard:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u
Temperatuur bij opslag:	5 - 95 °C
Bedrijfstemperatuur, bereik:	-10 - 70 °F
Ophangsysteem voor aan de muur:	Ja
Power over Ethernet (PoE):	Ja
Gemakkelijk te installeren:	Ja
Bedrijfstemperatuur (T-T):	0 - 50 °C
Relatieve vochtigheid in bedrijf (V-V):	5 - 95 procent
Stroom via Ethernet (PoE):	54 V
