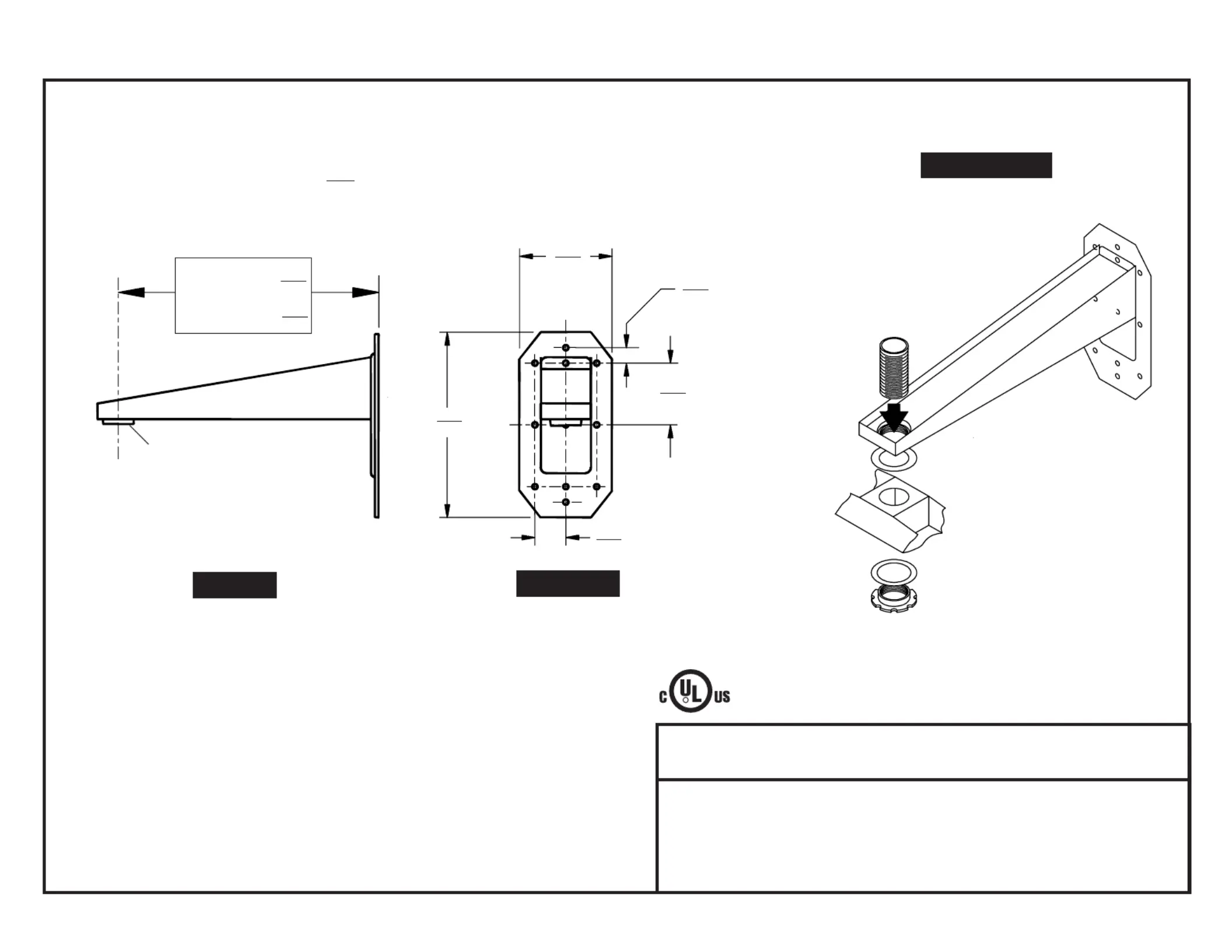

MODELS WMJ 018, WMJ 018S, WMJ 022, WMJ 022S

wall

arm

flush

mount

tube

fiber washer

Jumbo Mount

(cutaway)

retaining

collar

fiber washer

Jumbo Mount TV/Monitor

Mount attaches to wall arm

as shown. Flush mount tube,

fiber washers, and retaining

collar are included with

Jumbo Mount.

ASSEMBLY VIEW

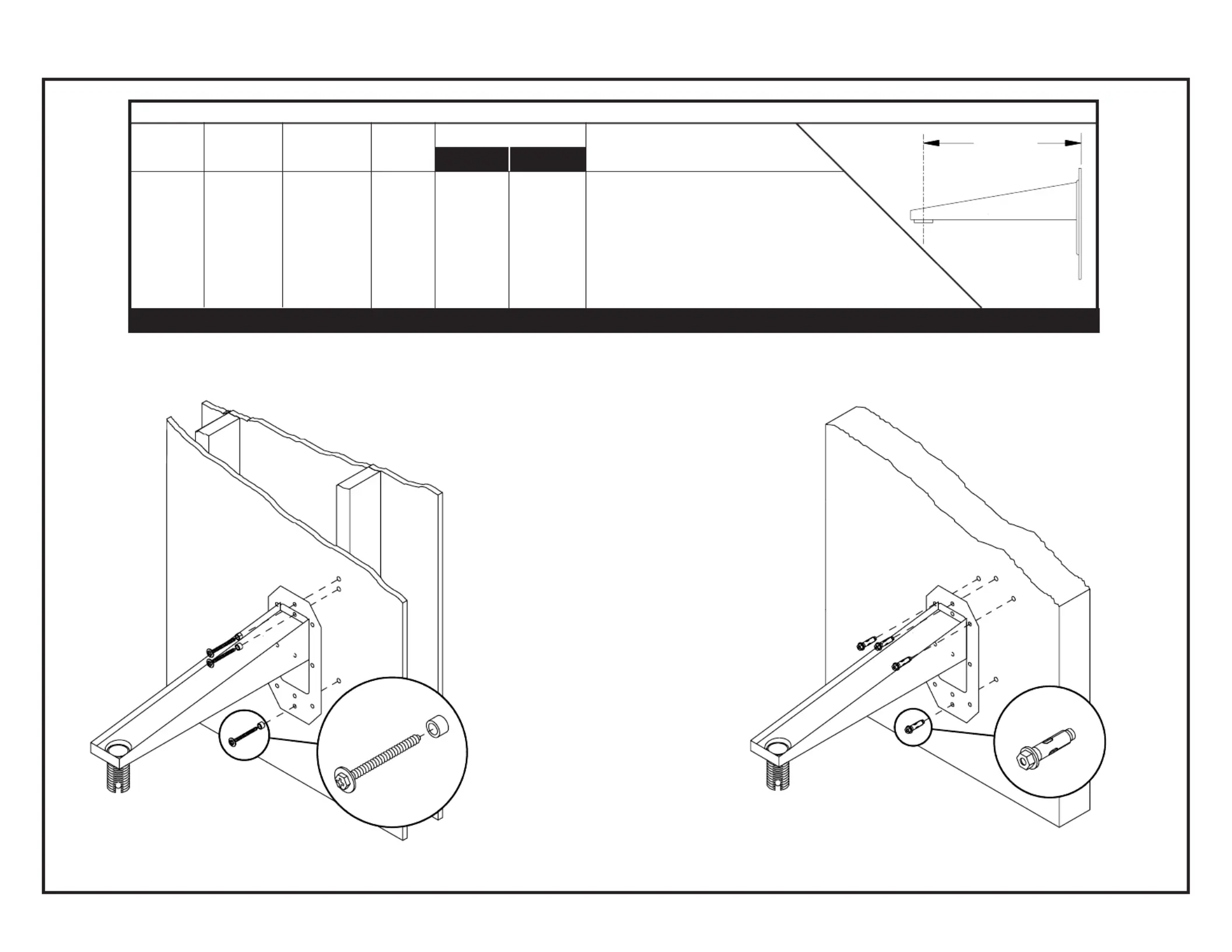

See page 2 for specifications / Jumbo Mount compatibility.

1 1/2 - 11.5 NPS

12

305

6

153

1.0

25

4

102

2

51

C

L

C

L

11 HOLESDIA.

.344

SIDE VIEW

FRONT VIEW

ALL DIMENSIONS:

INCH

MM

= CENTER LINE

C

L

TYP.= TYPICAL

TYP.

TYP.

TYP.

Peerless Industries, Inc.

3215 W. North Ave.phone:(708) 865-8870

Melrose Park, IL 60160fax:(708) 865-2941

ISSUED: 3-8-95 SHEET NO:128-9503-2 07-29-04page 1 of 2

TECHNICAL DATA SHEET

WALL ARM FOR JUMBO MOUNTS

Architects specifications:

The Wall Arm shall be a Peerless model _______ and shall be attached where indicated

on the plans. It shall have a 1 1/2 - 11.5 NPS threaded fitting to accept a Peerless flush

mount tube. It shall be constructed of 12 and 14 gauge cold rolled steel and finished in

black or silver fused epoxy. It shall be U.L. Listed. Assembly and installation shall be done

according to the instructions provided by the manufacturer.

models: WMJ 022,

WMJ 022S

22.5

572

models: WMJ 018,

WMJ 018S

18

457

R
