PSL-MLD Multiple Lockout Device

With PSL-MLDC Durable Cable

PSL-MLDC Durable Cable for Multiple

Lockout Device

Prevents inadvertent, accidental or unintentional energization of gate valves and the electrical

circuit for disconnect switches. Immobilizes large and cumbersome devices.May be used as a

hasp (6 lock maximum) – No Installation Tools Reired qu

Step 1:

Verify valve is de-energized. Thread

end of cable through gate valve

handle and then through loophole of

cable.

Step 2:

With loophole tight against the gate

valve and loout open, continue ck

threading end of cable through the

pre-notched opening of lockout

device.

Step 3:

Cinch up plaic loout body onto stck

cable, forming a secure bond.

Step 4:

Insertuptosiadlocksandtags x p

into holes of the hasp. Verify that

the lockout device secures the gate

valve in a safe or o position. ff

Step 1:

Verify dionnect is de-energized. sc

Thread cable through holes on each

disconnect handle. Insert end of

cable through loophole and tightly

hold firm near lockout point.

Step 2:

Thread end of cable through pre-

nohed opening of loout device. tcck

Step 3:

Cinch up plaic loout body onto stck

cable, forming a secure bond.

Step 4:

Insertuptosiadlocksandtags x p

into holes of the hasp. Verify that

the loout device secures the ck

disconnectitchesinsafeorff sw a o

position.

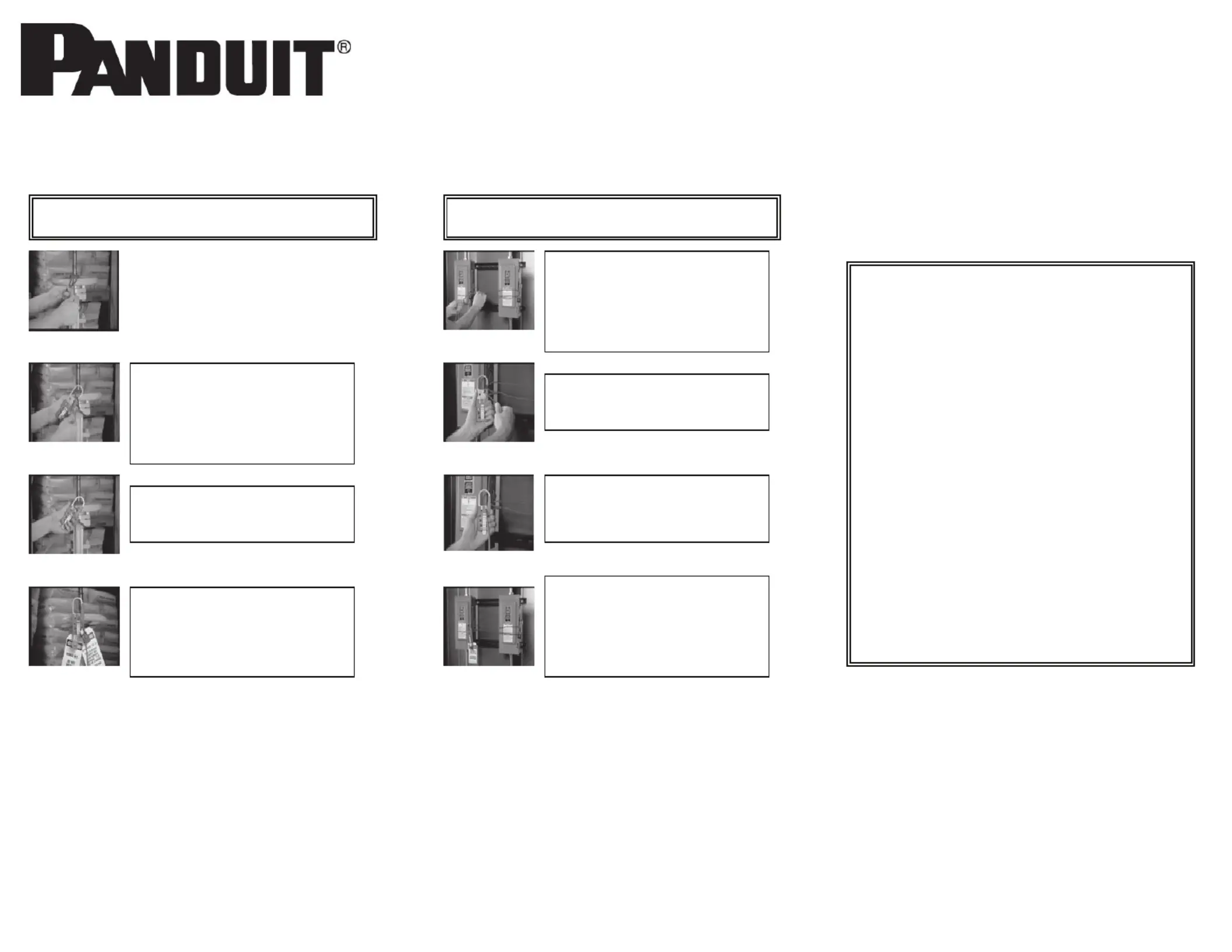

Installation Instructions for PSL-MLD used as gate

valve lockout device

Installation Instructions for PSL-MLD used as a

disconnect switch lockout device

A for these additional lockout products at your local sk

Panduit Distributor

Circuit breaker lockout device (PSL-CB, PSL-CBIL,

PSL-CBL, PSL-CBNTPSL-CBILNT) ,

Wa Lo Ds (PSL-WS, WS1A) llSwitchckoutevicePSL-

PlugckoutDevicesPSCL110PS480 Lo (PSL-P, L-, L-CL)

Loo Ks( PSL-PK-EA, PSL-KT- -ckutitCONA,PSL-KT-MROA,PSL

PK-AKS)E

Lor Prramckout TainingVideoog

Gate Valve Lockout Devices (PSL-V in Multiple Colors and Sizes)

Ball Valve Lockout Devices (PSL-BV1, PLS-BV2,L-BFV) PSL-BV3, and PS

Padlocks (PSL-6PSL-7, PSL-8 in Multiple Colors and Shackle lenghts.),

Safy Signs and s etTag

Instructions and photos demonstrate installation with the loop hole of the cable.User shall determine

if threading the cable in both the top hole and pre-notched opening better secures the energy isolating

device in a safe or off position.

• The PSL-MLD accommodates Panduit PSL-6, PSL-7, PSL-8 padlock series (0.3” shackle diameter

maximum)

• The PSL-MLDC six foot coated galvanized steel cable may be purchased seperately.

For extended cable lengths order 200 foot cable, cable crimps, and crimp tool (PSL-MLDC200,

PSL-MLD-CRIMP, and PSL-MLD-TOOL) .

GMPSL-INMLD

*Our products are warranted to be free from defects in material and

workmanship at the time of sale but our obligation under this warranty is

limited to the replacement of any product proved to be defective within si

x

months (for product) or 90 days (for tools) from the date of delivery.Tool

warranty is void if Panduit tools are modified, altered or misused in any

way.Use of Panduit tooling with any product other than the specified

Panduit products for which the tool was designed, constitutes misuse.

Before using, user shall determine the suitability of the product for his

intended use and user assumes risk and liability whatsoever inall

connection therewith.This warranty is made in lieu of and excludes all

other warranties, expressed or imp. IMIED I OFliedTHEPLWARRANTES

MERCHANTABANDTNESSFORPARTCULARUSEARILITY FI I E

SPECIFICALLY EXCLUDED. Neither seller nor manufacturer shall be

liable for any other injury, loss, or damage whether direct or consequential

arising out of th

e use of or the inability to use the product. *

B20405 REV. 3

Installation Procedure Warning!

A

lways perform an Electrical De-Energization Test and a

Blocking verification Te before using this produ stct.

ELECTRICAL DE-ENERGIZATION TEST:

A

llassociatedciuitand/enisolatingdevices rcry or ergy

shouldbeelectricallverif y ied as de-energized prior to and

follongtheinsallationofthelockoutdevice.wi t

BLKINVERIFICATTEOCG ION ST:

Ifff this lockout device cannot be aixed in a manner that

w r rgy is in a illholdtheappropiateeneolatingdevicessafe

or off position, the devices SHALL NOT be used.

A

PPOPIATESEckRR U of these loout devices is the sole

responsibility of the user in relation to compliance with

OSckt/THA’s Loouagout regulations

Before using this produc user shall determine the t,

suitability of the produ for his intended use. User ct

assumesallriandliabilitsoeverinconnection sk y what

with the installation of this product.PANIT DU

DISCLAIMS ALL LIABILITY FOR ANY INJURY, LOSS

OR DAMAGE, WHETHER DIRECT OR

CONSEQUENTIAL, ARISING OUT OF THE

INSTIONUSETHEPRUCTTALLA AND OF OD.
