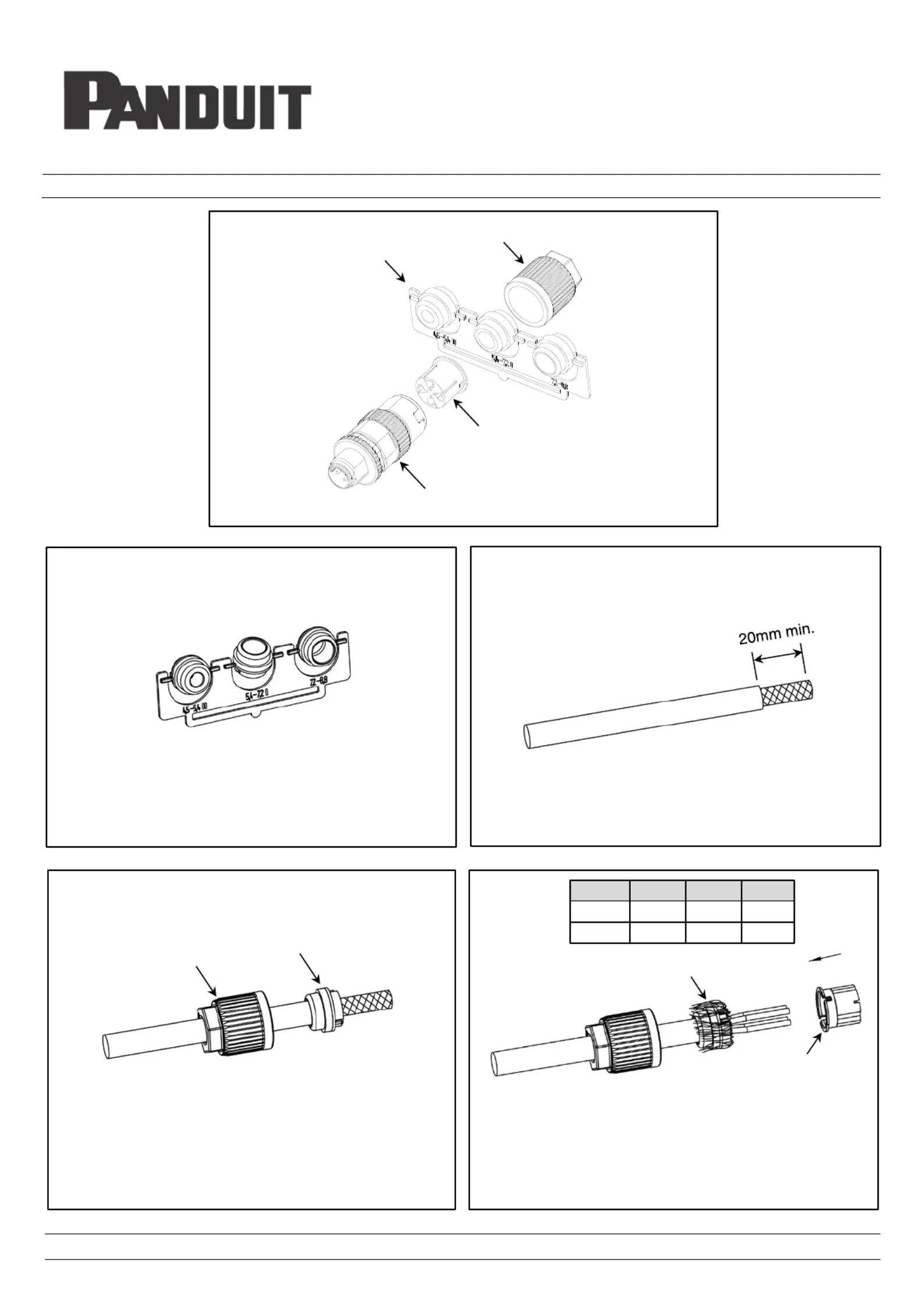

IndustrialNet M12 D- Code

Field Terminable Plug

Part Number: ISPS5E44MFA

INSTALLATION INSTRUCTIONS

PN583A

For Technical Support: www.panduit.com/resources/install_maintain.asp

Page of 1 2

Remove cable jacket.

SF/UTP

Select appropriate seal according to the cable diameter.

Slide screw cap and seal onto the cable. The seal

should be flush with the end of the cable jacket.

Lock nut

Seal

Pull back braid as shown. Remove foil and any cable

fillers ires . Untwist w back as far as seal and straighten.

Insert wires into the according to the splice element

wiring . chart

Braid

Splice

element

Lock nut

Seal options

Splice element

Connector housing

1 2 3 4

WH/O WH/G O G

TXD+

RXD+

TXD-

RXD-

INSTALLATION INSTRUCTIONS

PN583A

For Instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp

www.panduit.com

E- mail:

techsupport@panduit.com

Phone:

866 405 6654- -

2 2 Page of MA_21812811405_99_00

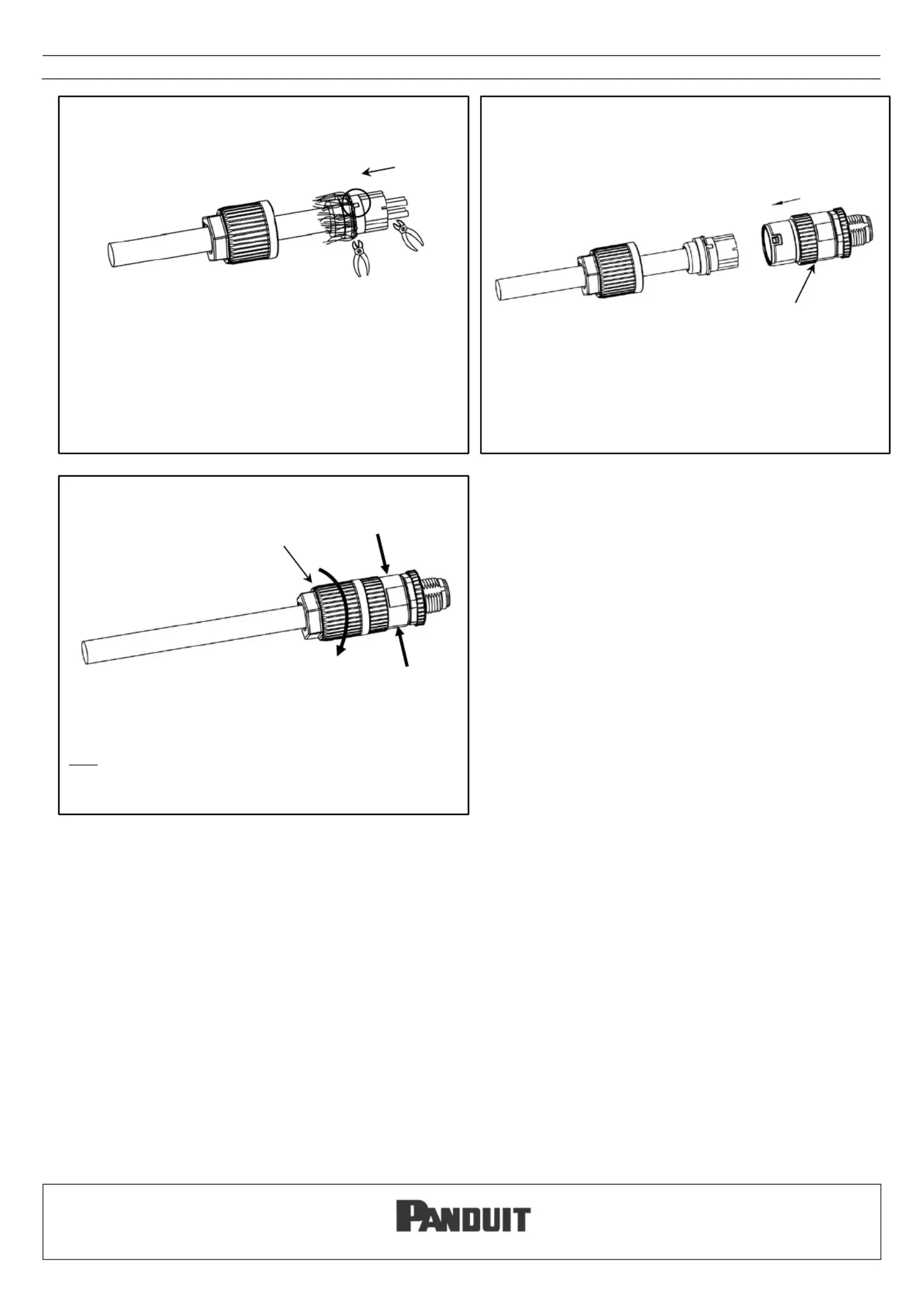

Push splice element onto braid and seal. Trim off excess

braid material and cut conductors flush with the splice

element.

ATTENTION: Ensure no braid material is caught

b etween the key of the seal and slot of splicing element.

NOTES :

1. For reconnection, cut off the used cable end and repeat steps 2- 7.

2. must The seal be replaced when worn.

3. Connector may be re terminated 10 times with the same or larger cable conductor diameter.-

Align connector properly and push onto the housing

splice element.

While holding the connecting housing end firmly, twist

only the tightened lock nut until fully . Use of 13mm and

17mm open end wrenches may be used to fully seat the

o- ring gasket.

Connector

housing

Lock nut

Product specificaties

Merk:	Panduit
Categorie:	Niet gecategoriseerd
Model:	ISPS5E44MFA
Kleur van het product:	Metallic
Certificering:	UL 1863, CSA 22.2, RoHS
Materiaal:	Metaal
Verbinden draad-type:	M12
