Part No. CT-1551

OPERATION INSTRUCTIONS

Contour Crimp

CONTROLLED CYCLE

CRIMPING TOOL

Crimps most Panduit #22-#10 AWG

insulated terminals & splices, and

s

pecific insulated disconnects.

Reduced crimp effort advantage for

#12-#10 AWG terminations.

Provides UL Listed and CSA Certified terminations

with applicable Panduit terminals.

INSULATED TERMINAL CRIMPING

INSTRUCTIONS

NOTE: Visual inspection dots (formed by the

crimp dies) on the insulation sleeve verify

proper crimp cycle.

• Two (2) dots for red and blue crimp

pocket

• Three (3) dots for yellow crimp pocket.

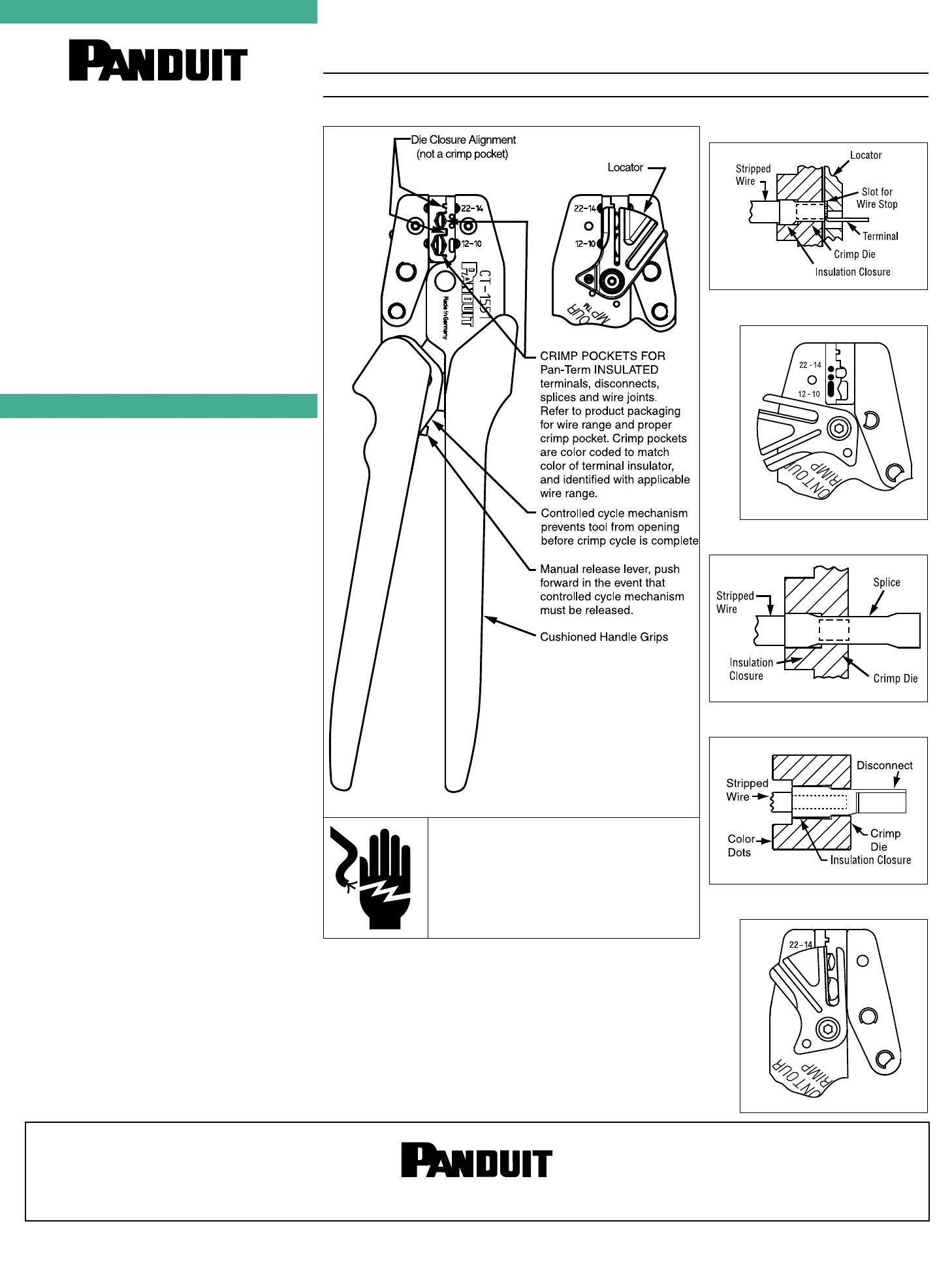

1. With the handles in the closedposition, (See

Figure 1), rotate the locator until the narrow slot

is centered between the crimp pockets (See

Figure 2). The locator will detent and “lock” in

this position. Squeeze the handles to open the

tool. With the back of the terminal tongue

turned toward the color dots, insert the terminal

in the proper crimp pocket (See Figure 1) so

that the tongue slides into the locator slot (See

Figure 3). Refer to product packaging for

selection of proper crimp pocket.

2. Hold the terminal against the locator and close

the handles until the barrel is held snugly in

place—do not deform the barrel.

3. Insert the stripped wire into the terminal until

the wire stops in the recessed slot in the

locator. Refer to product packaging for wire

strip length.

4. Crimp the terminal by closing the handles until

the controlled cycle mechanism releases.

Upon release, the handles will open

automatically and the crimped terminal can be

removed.

INSULATED SPLICE AND FULLY

INSULATED DISCONNECT CRIMPING

INSTRUCTIONS

1. With the handles in the openposition, swing the locator out of the way (See Figure 4). The locator will detent and

“lock” in this position. For splices, insert the splice in the proper crimp pocket (See FIgure 1) so that the crimp is

located on the barrel of the splice (See Figure 5). For fully insulated disconnects, insert the disconnect in the

proper crimp pocket (See Figure 1) so that the crimp is located on the barrel of the disconnect (See Figure 6). Refer

to product packaging for selection of proper crimp pocket.

2. Close the handles until the barrel is held snugly in position—do not deform the barrel.

3. Insert the stripped wire into the barrel until the wire stops. Refer to product packaging for wire strip length. Crimp

by closing the handles until the controlled cycle mechanism releases. Upon release, the handles will open

automatically and the crimped splice or disconnect can be removed. After crimping, inspect that the crimp is

centered on the disconnect barrel in order to achieve optimal pullout performance.

4. For splices, remove the splice and repeat operation for crimping the other end of the splice.

Figure 4

Figure 5

Figure 6

Figure 7

O

PERATION INSTRUCTIONS

©

Panduit Corp. 2017

P

A22152A04

Rev.: 06 1-2017

CT-1551

Figure 1

Figure 2

Figure 3

Email:

[email protected]

EU Website: www.panduit.com/emea

EU Email: [email protected]

Technical Support

Tel: 1-800-777-3300

Panduit Europe • EMEA Service Center

Tel: 31 546 580 452 • Fax: 31 546 580 441

Page: 1of 2

www.panduit.com

CAUTION:

Verify power is “OFF” before working on

wiring with this tool. The cushioned grips

are for the user’s comfort, and are not

intended to insulate against shock while

working on live electrical circuits.
