Part No. CT-1015

OPERATION INSTRUCTIONS

ContourCrimp

CONTROLLED CYCLE

CRIMPING TOOL

Crimps Panduit #22-#14 AWG

Supra-Grip

Female Disconnects.

Provides UL Listed and CSA Certified

terminations with applicable Panduit terminals.

1. With the handles in the open position, insert the

disconnect in the proper crimp pocket (See

Figure 1) so that the barrel is flush with the

crimp die (See Figure 2). Refer to Table 1 for

selection of proper crimp pocket.

2. Close the handles until the barrel is held snugly

in position — do not deform the barrel.

3. Insert the stripped wire into the disconnect.

Refer to Table 1 for wire strip length. Crimp the

disconnect by closing the handles until the

controlled cycle mechanism releases. Upon

release, the handles will open automatically

and the crimped disconnect can be removed.

O

PERATION INSTRUCTIONS

© Panduit Corp. 2016

Page: 1of 2

PA22181A01

Rev.: 03 11-2016

CT-1015

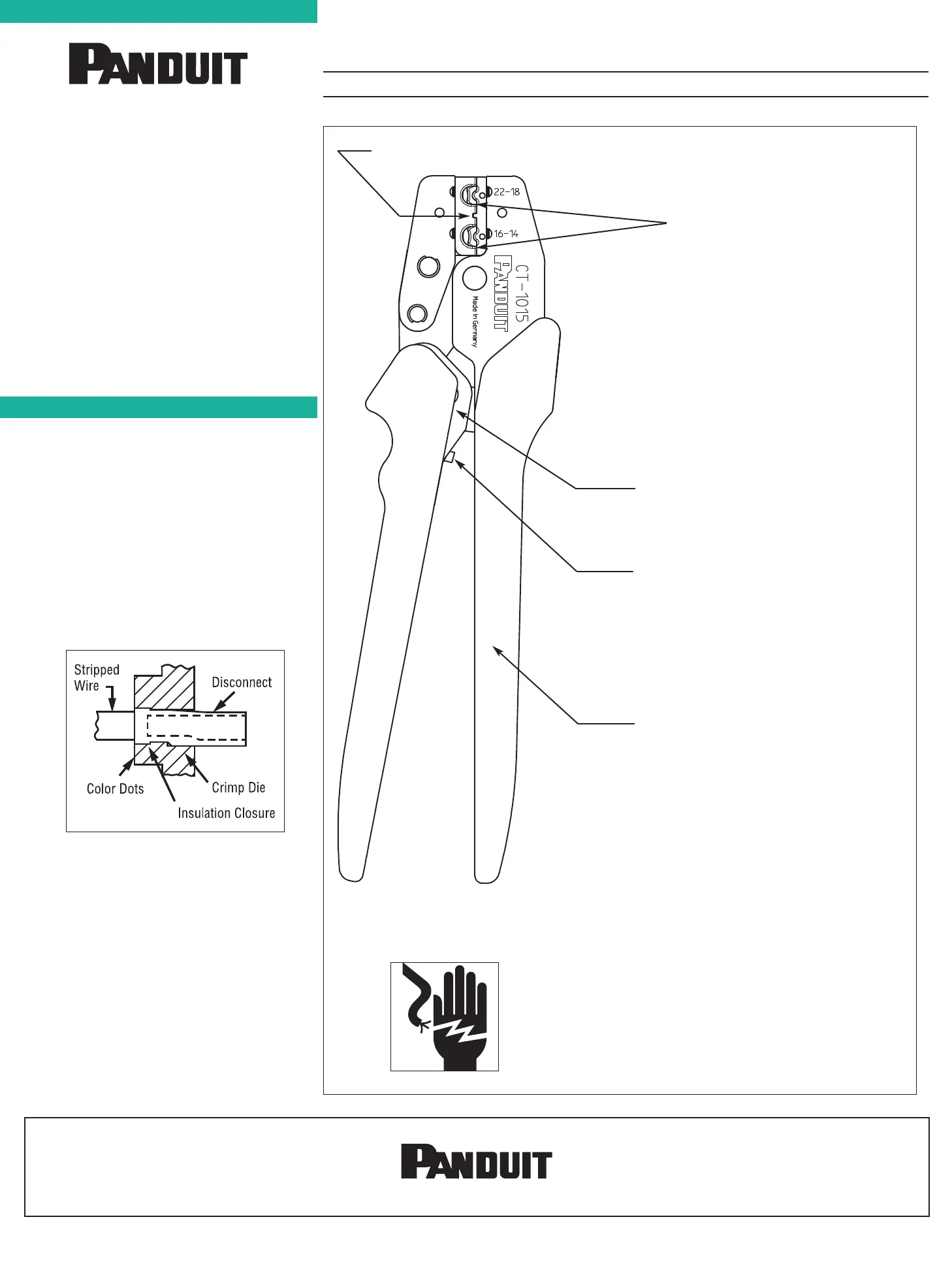

Figure 1

Figure 2

Die Closure Alignment

(not a crimp pocket)

CAUTION:Verify power is “OFF” before working on

wiring with this tool. The cushioned grips are for

the user’s comfort, and are not intended to

insulate against shock while working on live

electrical circuits.

www.panduit.com

CRIMP POCKETS for

S

upra-Grip INSULATED

disconnects.

Controlled cycle mechanism

prevents tool from opening

before crimp cycle is

completed.

Manual release lever, push

forward in the event that

controlled cycle mechanism

must be released.

Cushioned Handle Grips

R

efer to Table 1 for wire range and proper

crimp pocket. Crimp pockets are color coded

to match color of disconnect insulator and

identified with applicable wire range.
