INSTALLATION INSTRUCTIONSPR143N-AST

© Panduit Corp.2014

www.panduit.com

For instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp

E-mail:

[email protected]

Phone:

866-405-6654

Rev. 03Page 1 of 1

INSTALLATION INSTRUCTIONSPR143N-AST

© Panduit Corp.2014

www.panduit.com

For instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp

E-mail:

[email protected]

Phone:

866-405-6654

Rev. 03Page 1 of 1

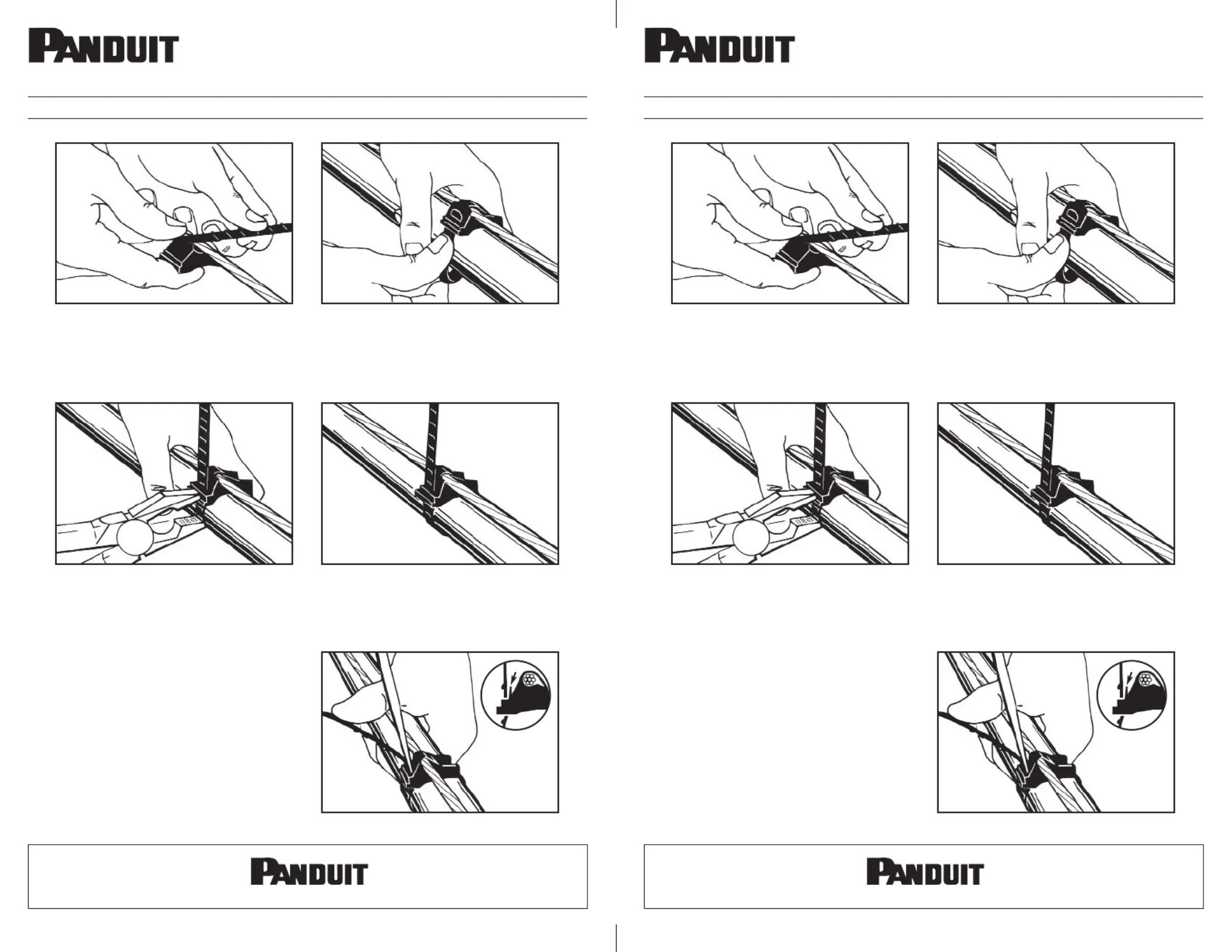

1.Snap groove portion of tie onto

support strand.

2.Position cable against tie spacer

and thread tail through slot in

head. Push upwards on body of

tie until snug.

3.Use pliers utilizing tension steps

on tie to tighten completely.

4.Support tie shown when properly

installed. If releasability is not

required, tip can be cut off.

TORELEASE:

Use screwdriver to push locking tab

towards support strand.

Tab

1.Snap groove portion of tie onto

support strand.

2.Position cable against tie spacer

and thread tail through slot in

head. Push upwards on body of

tie until snug.

3.Use pliers utilizing tension steps

on tie to tighten completely.

4.Support tie shown when properly

installed. If releasability is not

required, tip can be cut off.

TORELEASE:

Use screwdriver to push locking tab

towards support strand.

Tab

Aerial Support Ties

Part Numbers: AST10-5-C100, AST15-5-C100,

AST20-5-C100, AST25-5-C100

Aerial Support Ties

Part Numbers: AST10-5-C100, AST15-5-C100,

AST20-5-C100, AST25-5-C100
