BLACK SERIES INSTALL GUIDE

Preparation:

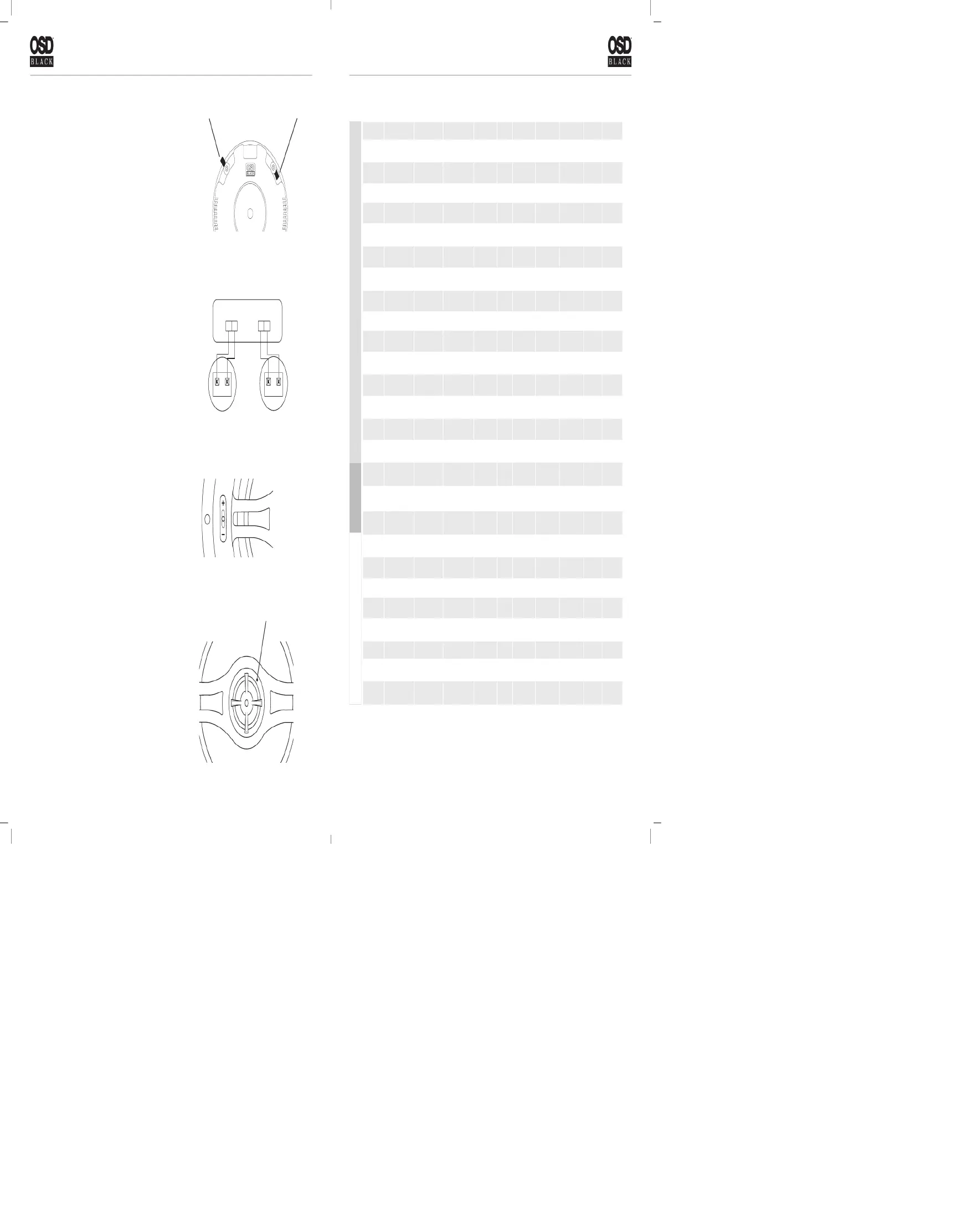

Installation:

Tools For InstallationSpeaker Wire Guide

Considerations

Cut Out

Placement

- Pencil

- Drill

- Tape Measure

- Wire Cutter

- Phillips Screwdriver

- Utility Knife

- Safety Eye Wear

- Gloves

- Sandpaper

- Where is the best place to install the speakers?

- Where do the speakers sound the best?

- Separate the speakers 6 - 10 feet apart.

- () Place speakers with the 15° For Ceiling LCR models only

angled woofer pointed towards the main listening area.

- If you intend to paint the grilles, do so before installation.

NOTE: This is the most important part of the entire installation.

If you are not certain whether any obstructions exist behind the

desired mounting area, you should start by cutting a small hole in

the center of your penciled mounting hole with a drywall saw.

Trace along the included template. Cut along the traced line using a

drywall saw or rotary drill. Use a piece of sandpaper to sand down the

cut out edge for a smoother contour. (See Diagram 2.)

There are many options for proper speaker placement depending

upon speaker type and application. It’s important to carefully plan the

placement of your speakers, as installation requires that you cut a

hole in your wall or ceiling.

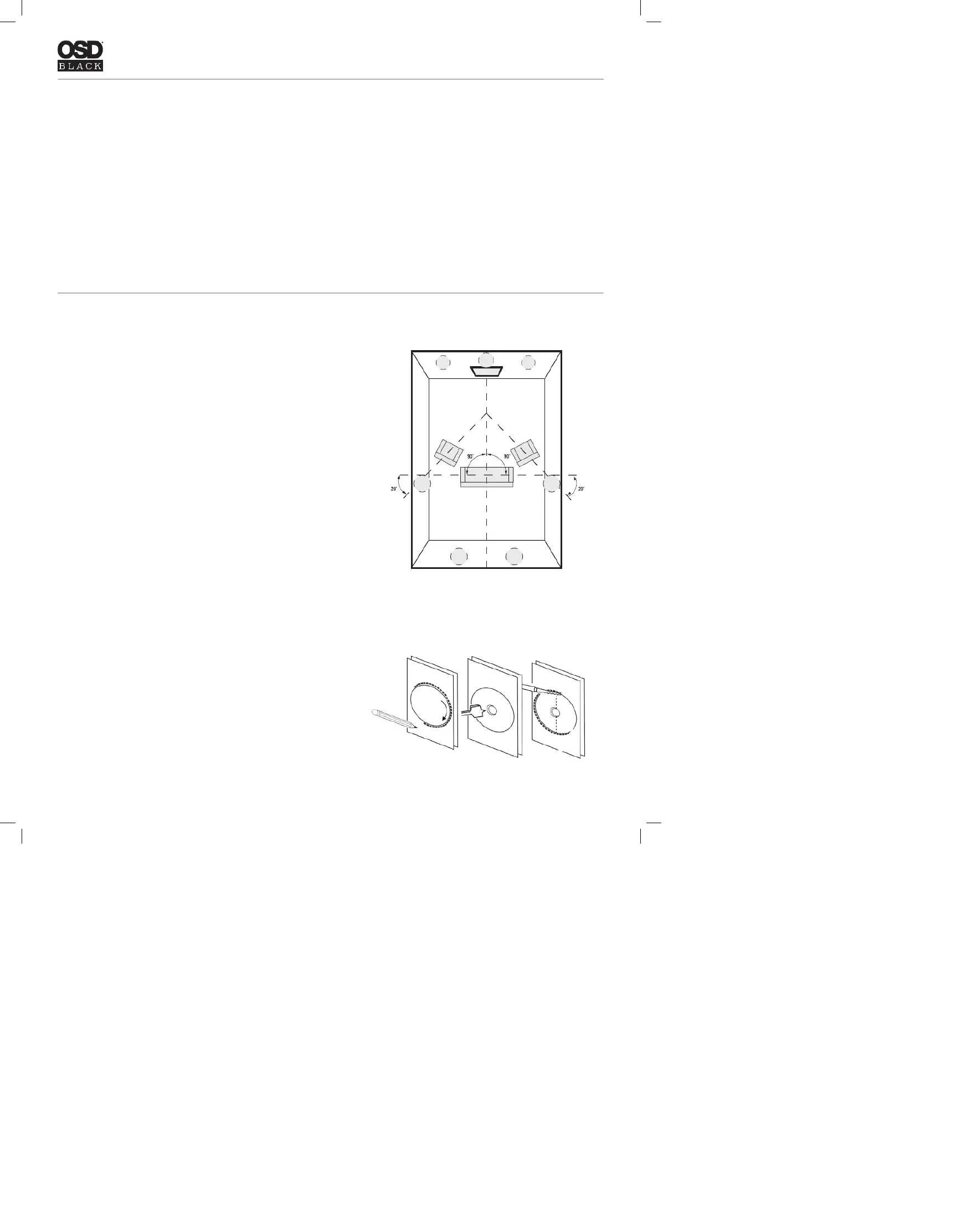

(See Diagram 1.) Typical speaker placement for a 5.1 and 7.1

speaker system.

18AWG minimum - for distances up to …………………. 10 ft

16AWG - from …………………………………..…... 10 to 50 ft

14AWG - from …………………………………...… 50 to 100 ft

TV

Diagram 2

Diagram 1
