Pagina 1/6

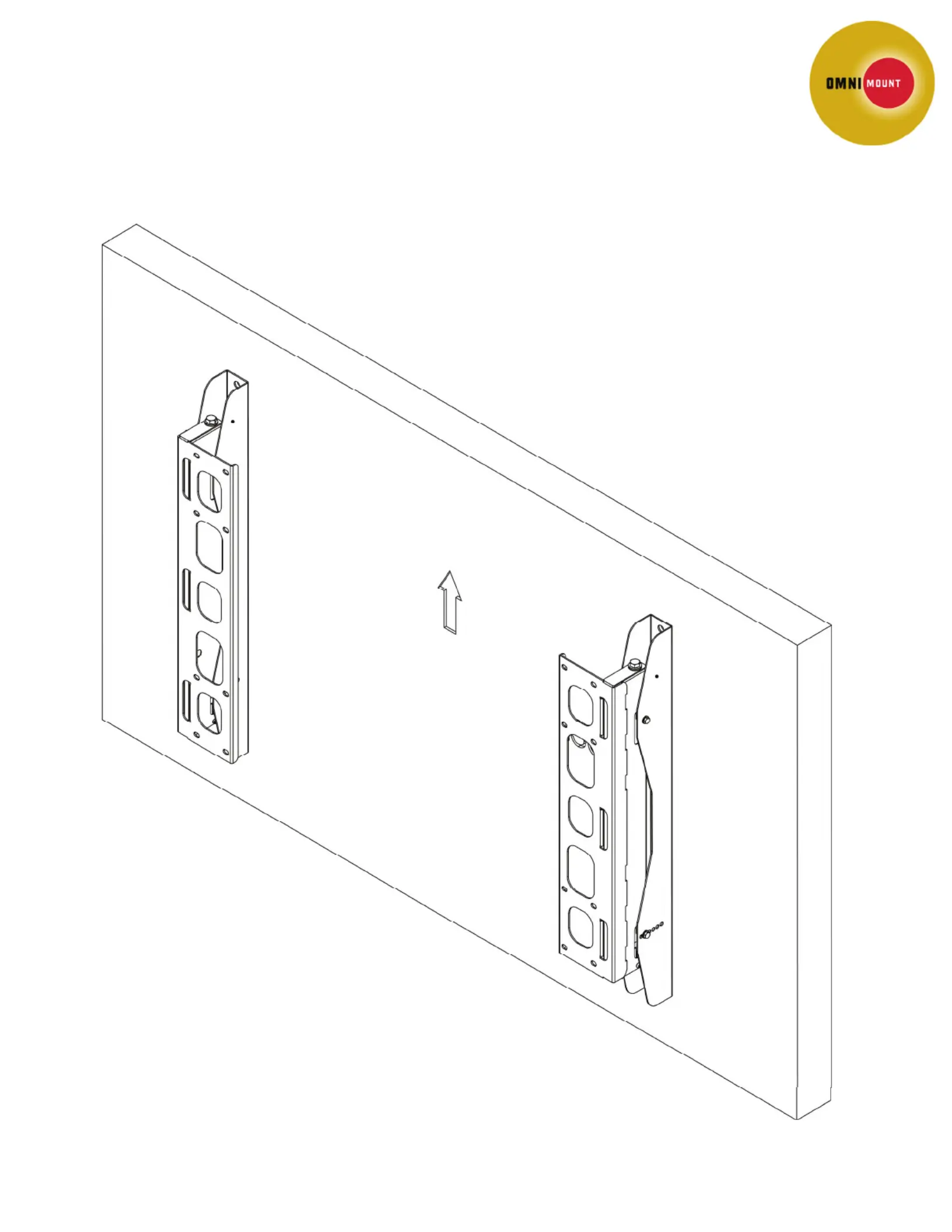

DOCUMENTNO : IA‐PANA85PRO_REV.A1
INSTALLATIONANDASSEMBLY INSTRUCTIONS
ALLDIMENSIONS‐MM(INCH)
MODEL : PANA85PRO
MAX :LOADCAPACITY 300LB(136.07 KG)
DOCUMENTNO : IA‐PANA85PRO_REV.A1
INSTALLATIONANDASSEMBLY INSTRUCTIONS
ALLDIMENSIONS‐MM(INCH)
MODEL : PANA85PRO
MAX :LOADCAPACITY 300LB(136.07 KG)
NOTE : READENTIREINSTRUCTIONSHEETBEFOREYOUSTARTINSTALLATIONANDASSEMBLY
WARNING
• Do not begin to install your Panasonic product until you have read and understand all instructions and
warnings youcontainedinthisInstallationSheet.If haveanyquestionsregardingany instructions
and/orwarningspleasecall Support.PanasonicCustomer
• This product should only be installed by a qualified professional.
• Make sure that the support surface will safely support the combined load of the equipment and all
attachedhardwareandcomponents.
• Never exceed the Maximum Load Capacity of this mount : 300 lbs (136.07kg)
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment
• Tighten screws firmly, but do not over tighten.Over tightening can damage items, greatly reducing
their hold.ability to

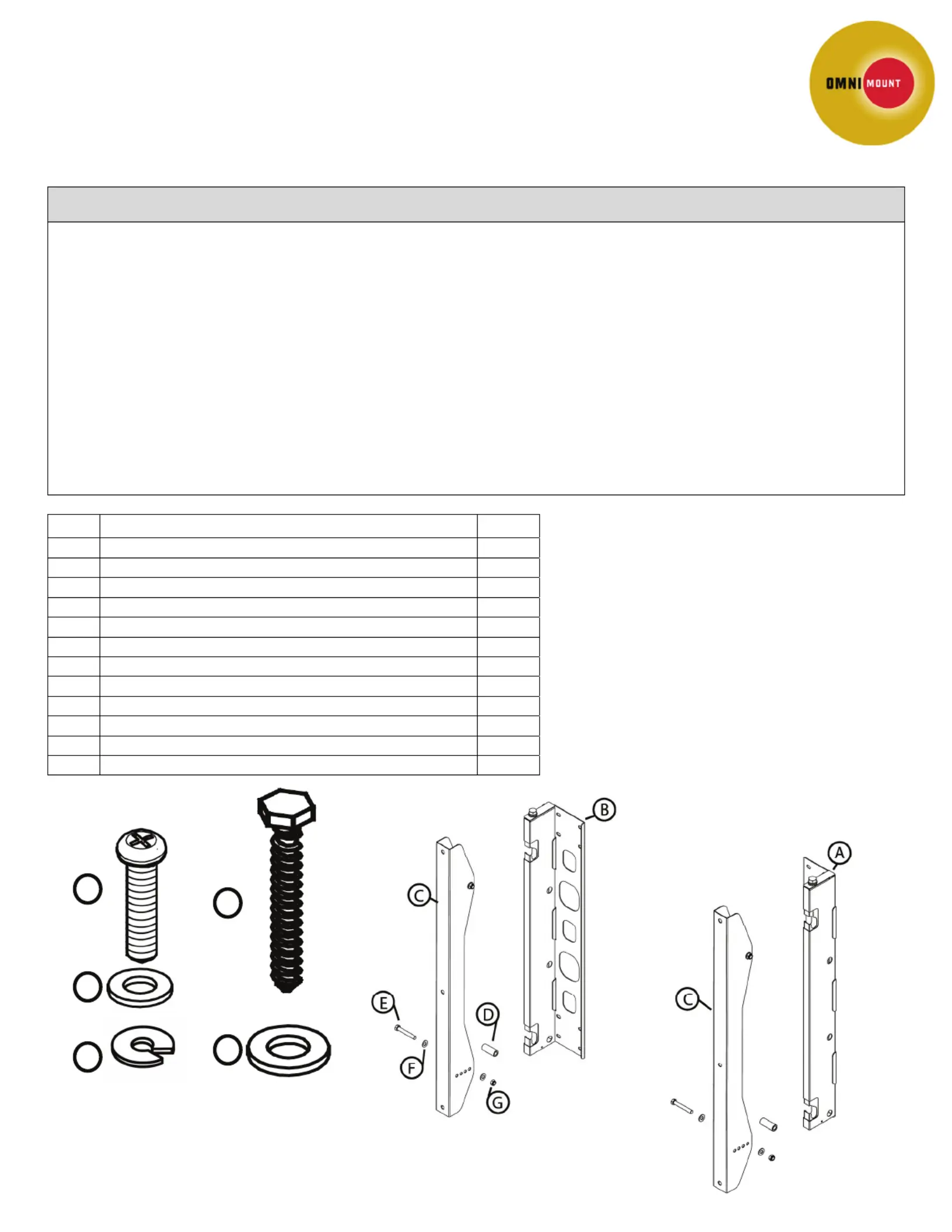

ItemDescriptionQty
A 1BRACKET,WALL(RIGHT)
B 1BRACKET,WALL(LEFT)
C 2BRACKET,PANEL
DROD,HANGING 4
E BOLT, HANGINGROD(HF05/16” 13‐ X 3.5) 4
FWASHER,FLAT(5/16 OD)ID, 1 3/8 8
G 4NUT,HANGINGROD(5/16)
H XSCREW,HEXHEADLAG(3/8 3)16
ISTEELWASHER3/8” 16
JWASHER,FLAT (16MM) 4
KWASHER,LOCKING(16MM) 4
L 4M16x50PHCS
K
H
J
I
L
DOCUMENTNO : IA‐PANA85PRO_REV.A1
INSTALLATIONANDASSEMBLY INSTRUCTIONS
ALLDIMENSIONS‐MM(INCH)
MODEL : PANA85PRO
MAX :LOADCAPACITY 300LB(136.07 KG)
INSTALLATIONTOTHEWALL
WARNING
• Installer must verify that the supporting surface will safely support four (4) times the combined weight
ofallattached equipment (wallmount)andhardwarealongwithpanel.
• Mount is only meant for surface mounting to a wall.For recessed mounting or any other mounting
pleasecontactOmnimountCustomerService.
• Use 3/8” x 3”Hex Head Lag Screws (H) and 3/8” Flat Washers (I) to attach Wall Brackets (A & B) to wall
in eight (8) placesperWallBracket.

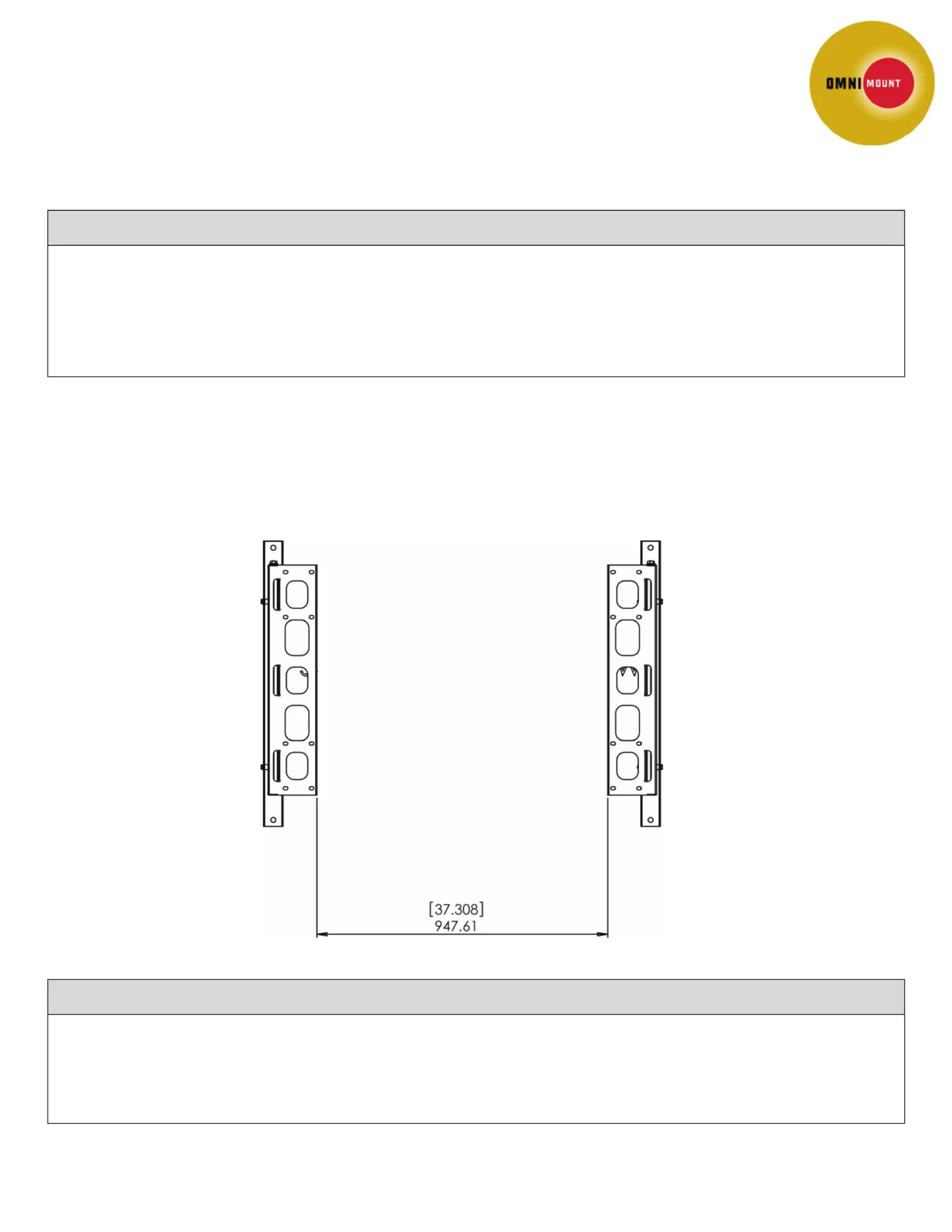

• Distance between inside edges of Wall Brackets (947.61mm) Bracketsmust be 37.308" andWall must
beleveland square to oneanother.
CAUTION
• If Wall Brackets are not level and square, mount may not function properly.
• If using custom fasteners to attach Wall Brackets to wall be sure that fasteners can support the
combinedweight andofall equipmentattached includingwallmount panel.
