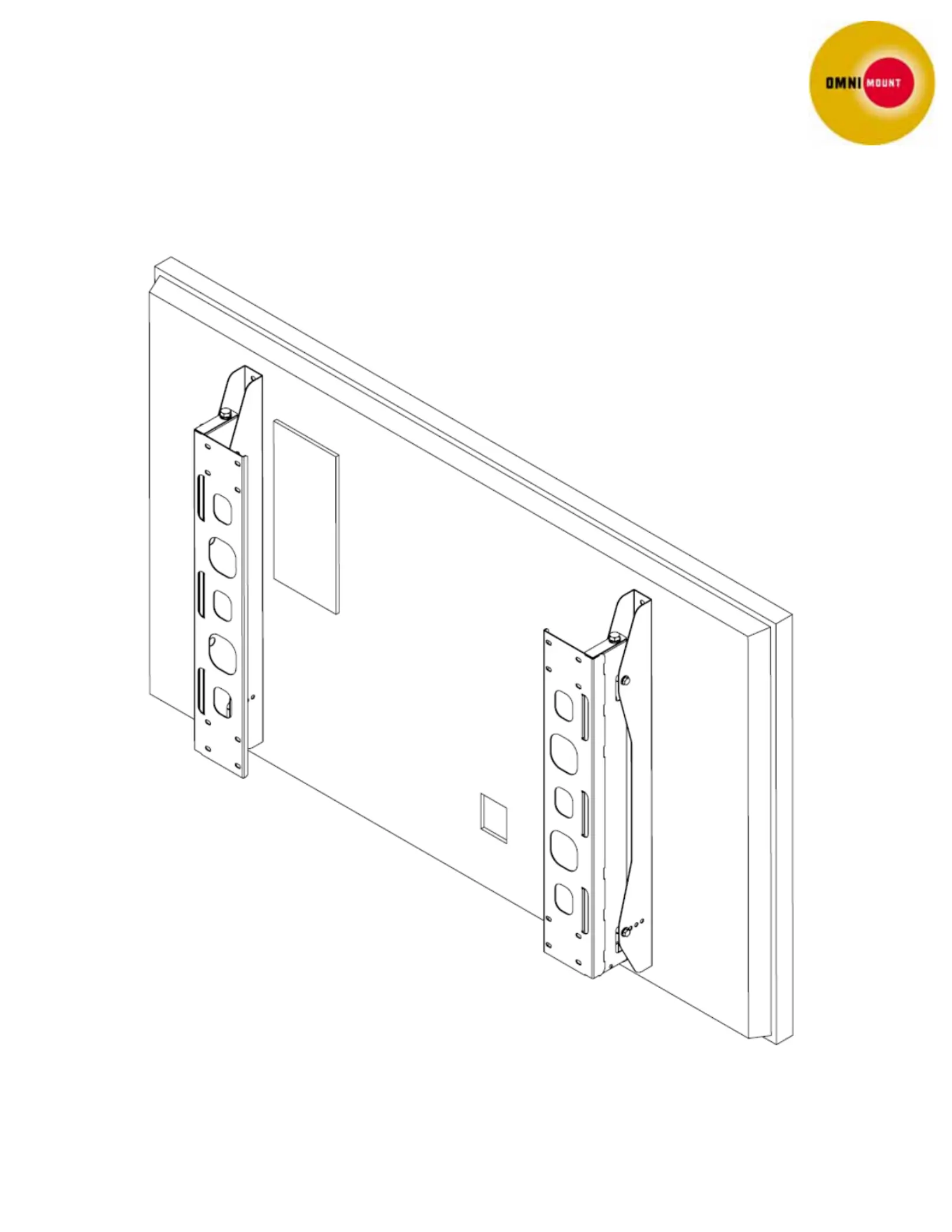

DOCUMENTNO : IA‐PANA103PRO_REV.A1
INSTALLATIONANDASSEMBLY INSTRUCTIONS
ALLDIMENSIONS‐MM(INCH)
MODEL : PANA103PRO
MAX :LOADCAPACITY 500LB(227KG)
DOCUMENTNO : IA‐PANA103PRO_REV.A1
INSTALLATIONANDASSEMBLY INSTRUCTIONS
ALLDIMENSIONS‐MM(INCH)
MODEL : PANA103PRO
MAX :LOADCAPACITY 500LB(227KG)
NOTE : READENTIREINSTRUCTIONSHEETBEFOREYOUSTARTINSTALLATIONANDASSEMBLY
WARNING
• Do not begin to install your Panasonic product until you have read and understand all instructions and
warnings youcontainedinthisInstallationSheet.If haveanyquestionsregardingany instructions
and/orwarningspleasecall Support.PanasonicCustomer
• This product should only be installed by a qualified professional.
• Make sure that the support surface will safely support the combined load of the equipment and all
attachedhardwareandcomponents.
• Never exceed the Maximum Load Capacity of this mount : 500 lbs (227kg)
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment
• Tighten screws firmly, but do not over tighten.Over tightening can damage items, greatly reducing
their hold.ability to

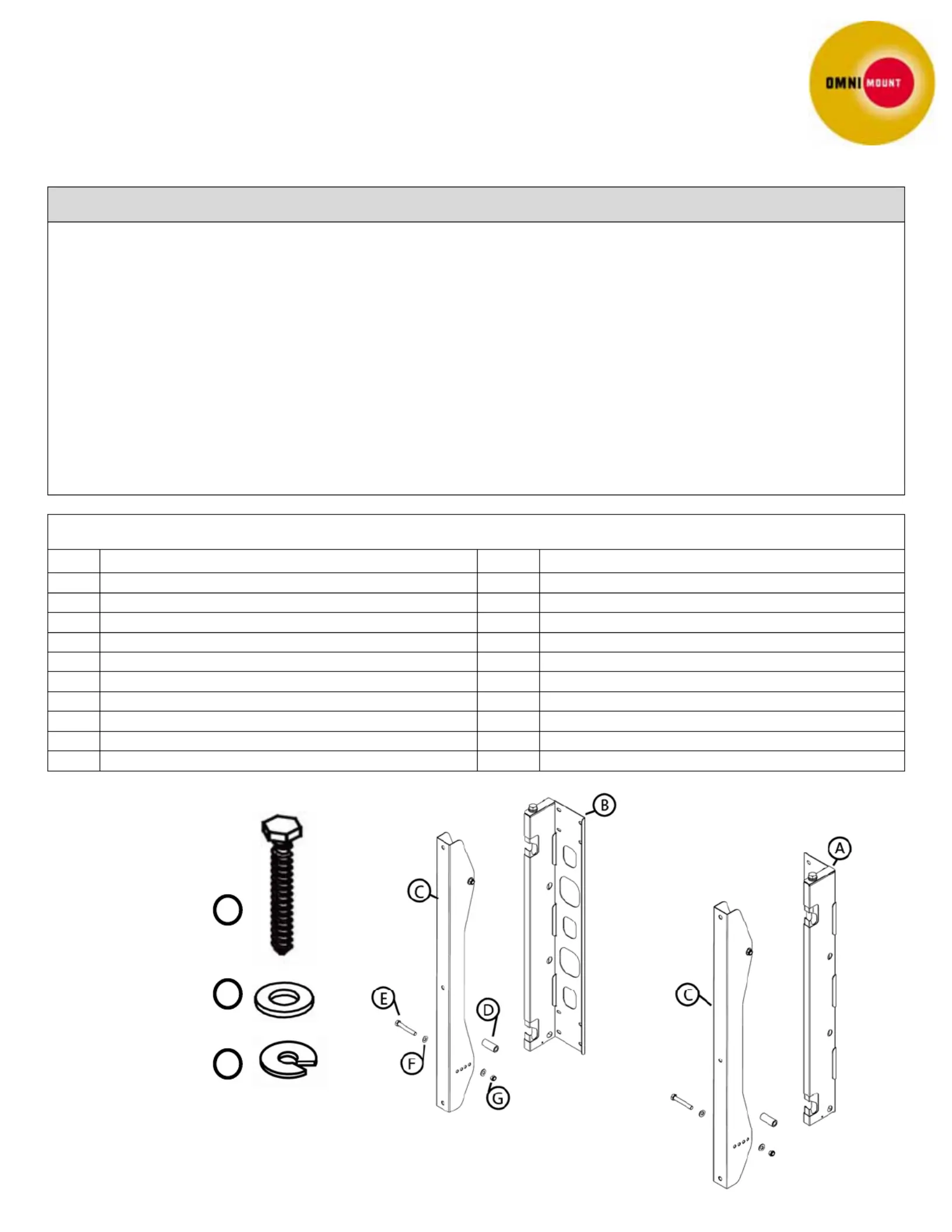

PARTS LIST
ItemDescriptionQtyPart #
A 1BRACKET,WALL(RIGHT) 1100222‐08
B 1BRACKET,WALL(LEFT) 1100222‐02
C 2BRACKET,PANEL 1100222‐07
DROD,HANGING 4 1100222‐901(PARTOFBRACKET,PANEL)
E BOLT, (HF0.5 X HANGINGROD ‐13 3.5) 4 92965A716 (MC)
FWASHER,FLAT(1/2 OD)ID, 1 3/8 16 98029A033 (MC)
G 8NUT,HANGINGROD(1/2) 91581A385 (MC)
H X 3SCREW,HEXHEADLAG(1/2 ‐1/2)1691478A726(MC)
IWASHER,FLAT (16MM) 4 98035A109 (MC)
J 4WASHER,LOCKING(16MM) 91190A590 (MC)
J
H
I
DOCUMENTNO : IA‐PANA103PRO_REV.A1
INSTALLATIONANDASSEMBLY INSTRUCTIONS
ALLDIMENSIONS‐MM(INCH)
MODEL : PANA103PRO
MAX :LOADCAPACITY 500LB(227KG)
INSTALLATIONTOTHEWALL
WARNING
• Installer must verify that the supporting surface will safely support four (4) times the combined weight
ofallattached equipment (wallmount)andhardwarealongwithpanel.
• Mount is only meant for surface mounting to a wall.For recessed mounting or any other mounting
pleasecontactOmnimountCustomerService.
• Use ½” x 3 ½” Hex Head Lag Screws (H) and ½” Flat Washers (F) to attach Wall Brackets (A & B) to wall
in eight (8) placesperWallBracket.

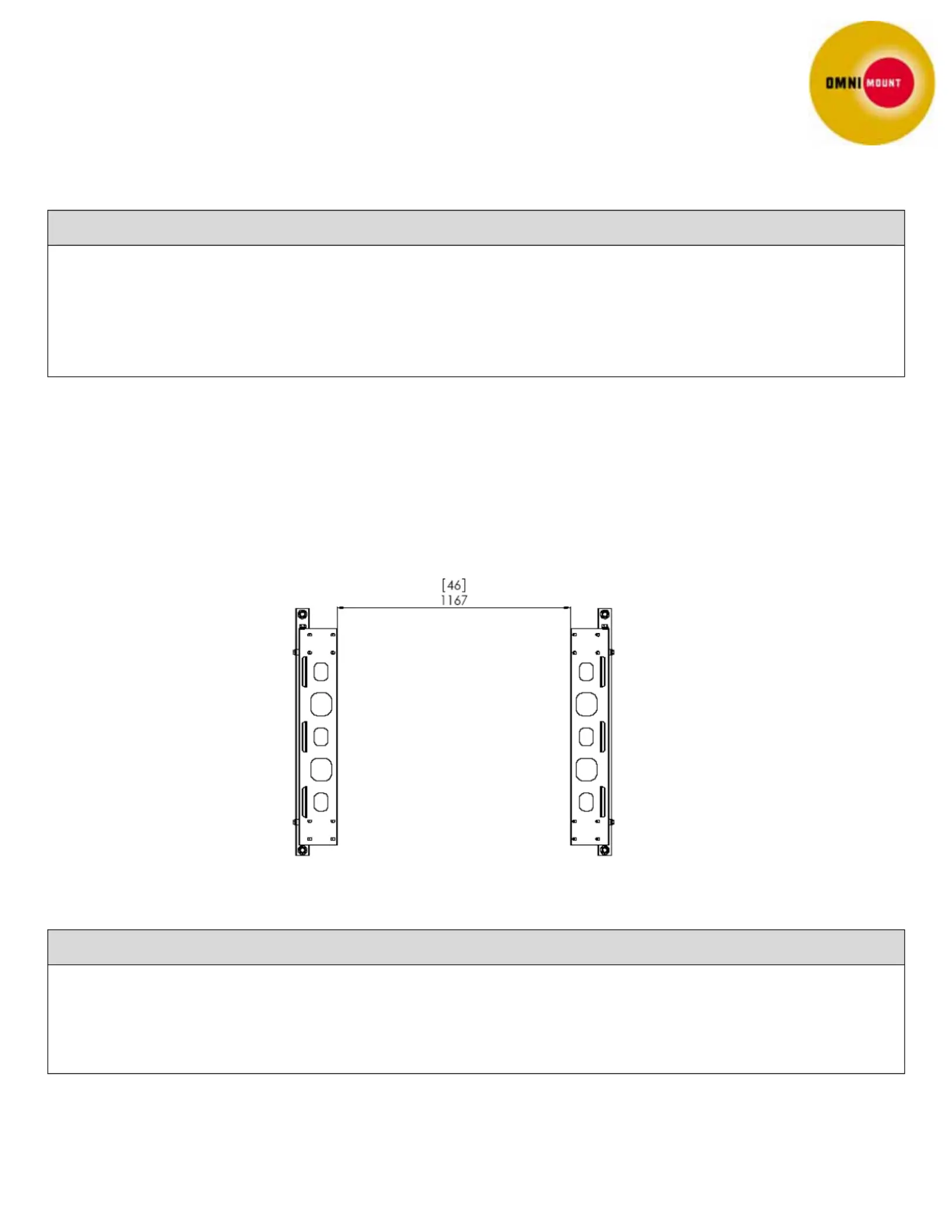

• Distance between inside edges of Wall Bracketsmust be must be 46"(1167mm)andWallBrackets
leveland square to oneanother.
CAUTION
• If Wall Brackets are not level and square, mount may not function properly.
• If using custom fasteners to attach Wall Brackets to wall be sure that fasteners can support the
combinedweight andofall equipmentattached includingwallmount panel.
INSTALLATIONTOTHEPANEL
