WARNING: Risk of Fire or Electric Shock

• Disconnect power before installation or maintenance of the xture.

• LED Retrot Kit installation requires knowledge of luminaires electrical

systems. If not qualied, do not attempt installation. Contact a qualied

electrician.

• Do not make or alter any open holes in an enclosure of wiring or electrical

components during kit installation.

• To prevent wiring damage or abrasion, do not expose wiring to edges of

sheet metal or other sharp objects.

• The product is purposed for interior use only, suitable for wet locations.

• Protect the product against direct contact with water.

• Assemble the product only with the use of parts provided and the housing;

improper assembly may result in device failing which could damage the

product, personal property or cause injury.

• CAUTION: When handling the xture, do not apply pressure to the LEDs.

Hold the xture by the base only.

LED DISK AND SURFACE

MOUNT FIXTURES

Models: 62-1751, 62-1752, 62-1761, 62-1762, 62-1763

Satco Products, Inc.

Brentwood, NY 11717

INSTALLATION – Junction Box

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

© Copyright 2022 Satco Products, Inc. 7/22 v1.1

NOTE: Turn OFF main power at the circuit breaker.

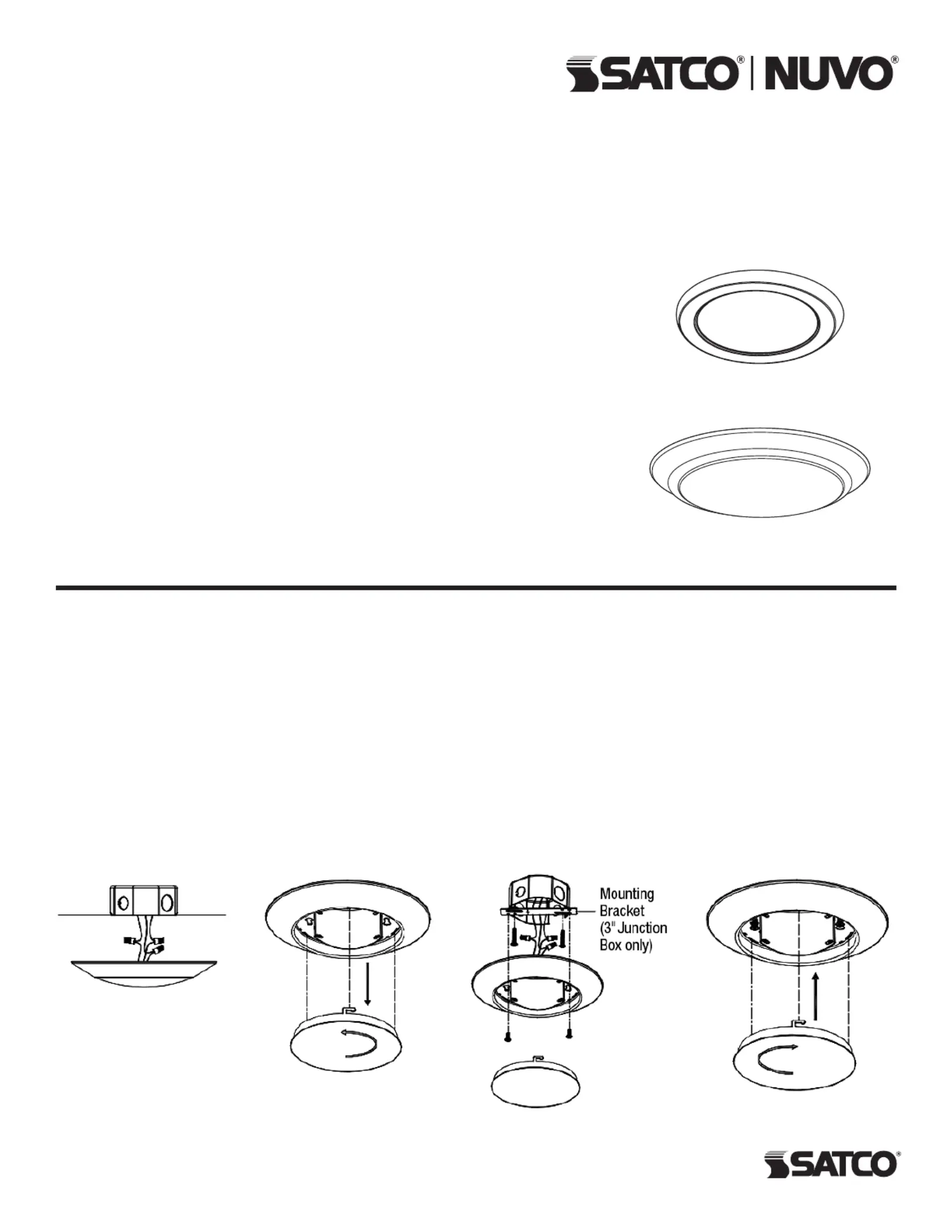

1. Connect the luminaire to supply wires with wire nuts

(included) (Figure A).

2. Remove lens by turning counter clockwise to unlock

(Figure B).

3. Mount luminaire to the junction box and screws

through the keyhole slots (Figure C). Mounting bracket

needed for 3" junction box only.

62-1761, 62-1762, 62-1763

62-1751, 62-1752

4. Replace lens and twist clockwise to lock (Figure D).

IMPORTANT: Should mounting holes not line up with

hole(s) in junction box, secure the Opal to the ceiling

material using compatible screws making sure to

completely cover junction box.

NOTE: If the luminaire includes the optional LED color

temperature selectable switch, select the desired LED

color temperature.

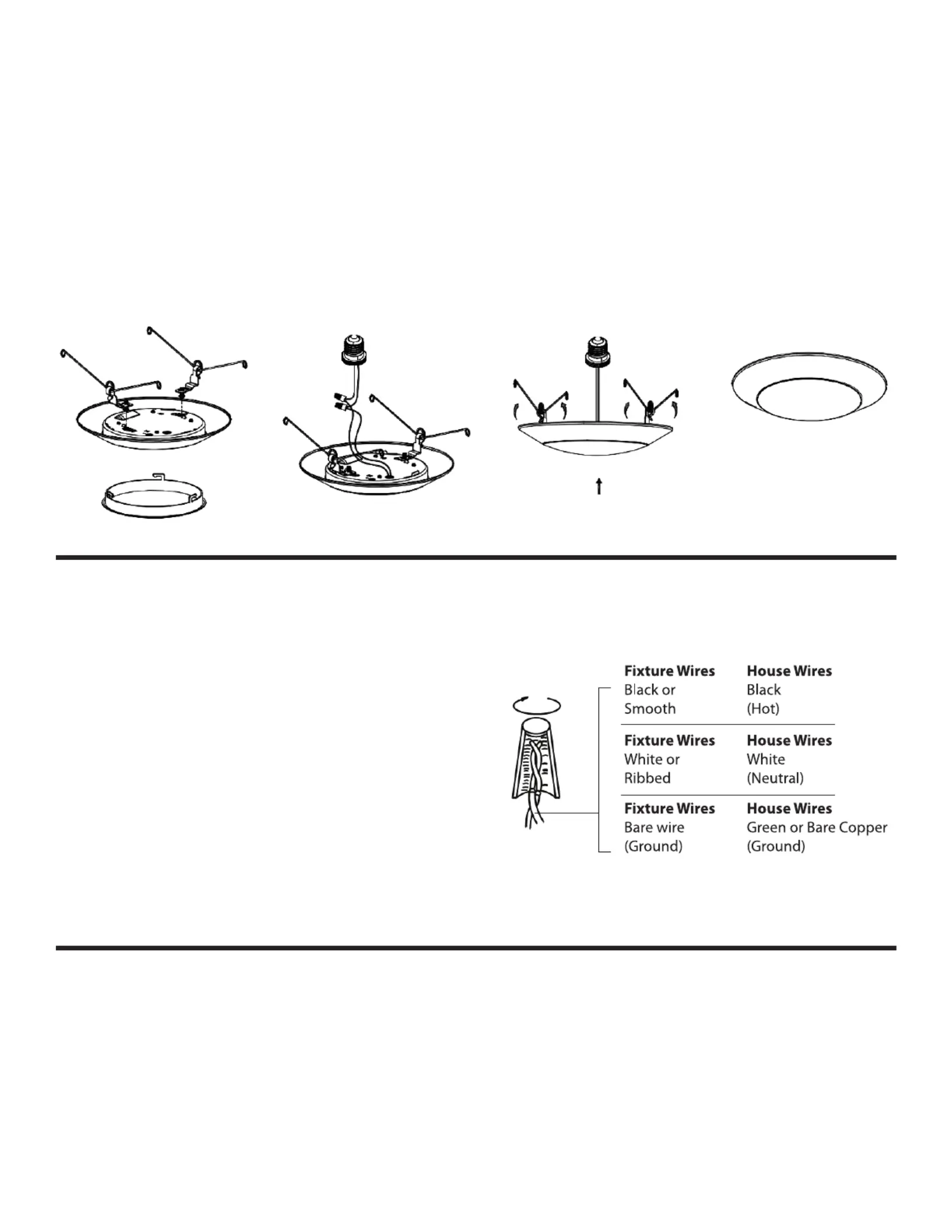

Figure AFigure BFigure CFigure D
