USER MANUAL
MODEL: PKJC40

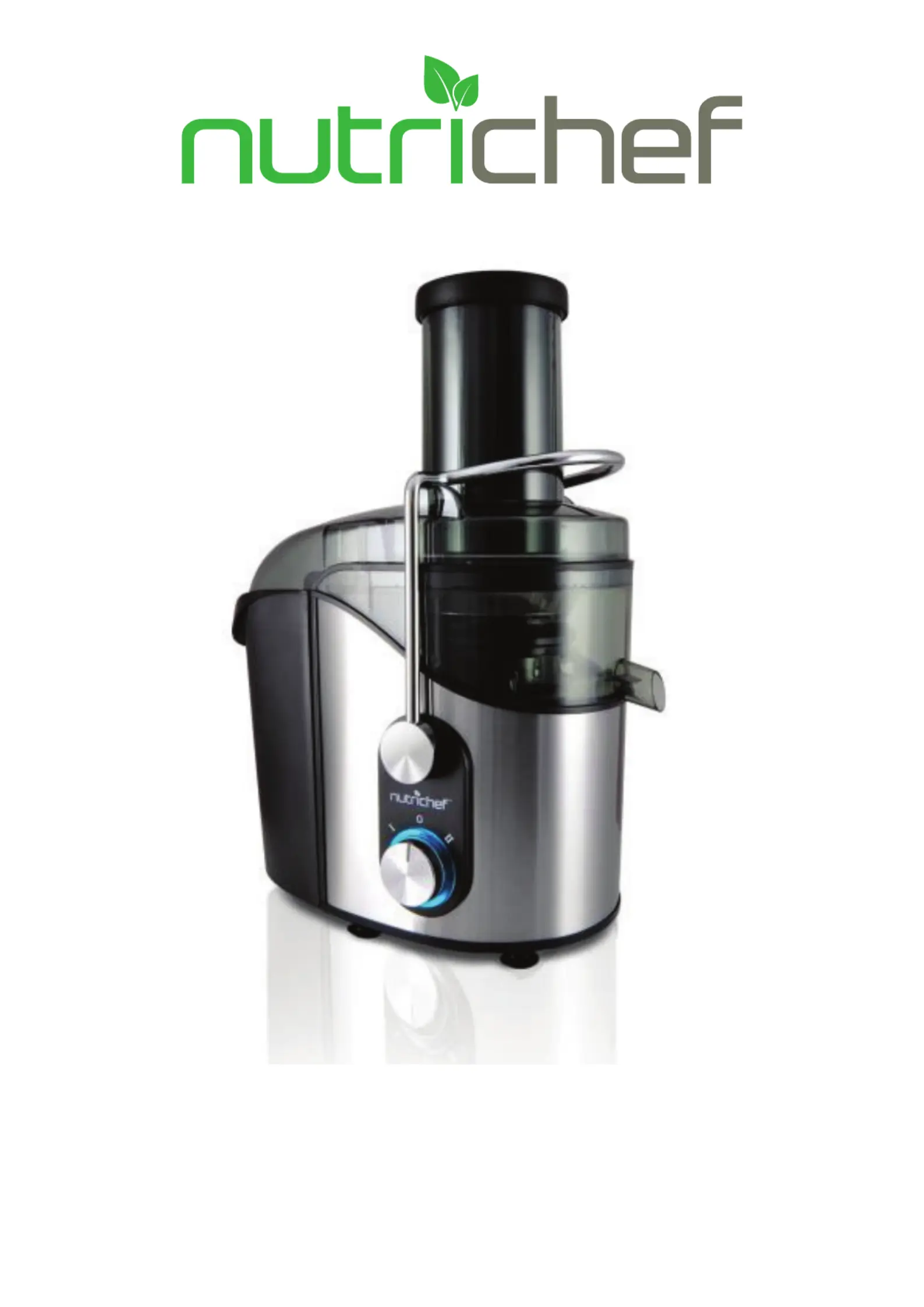

Juice Extractor Kitchen Juicer
2

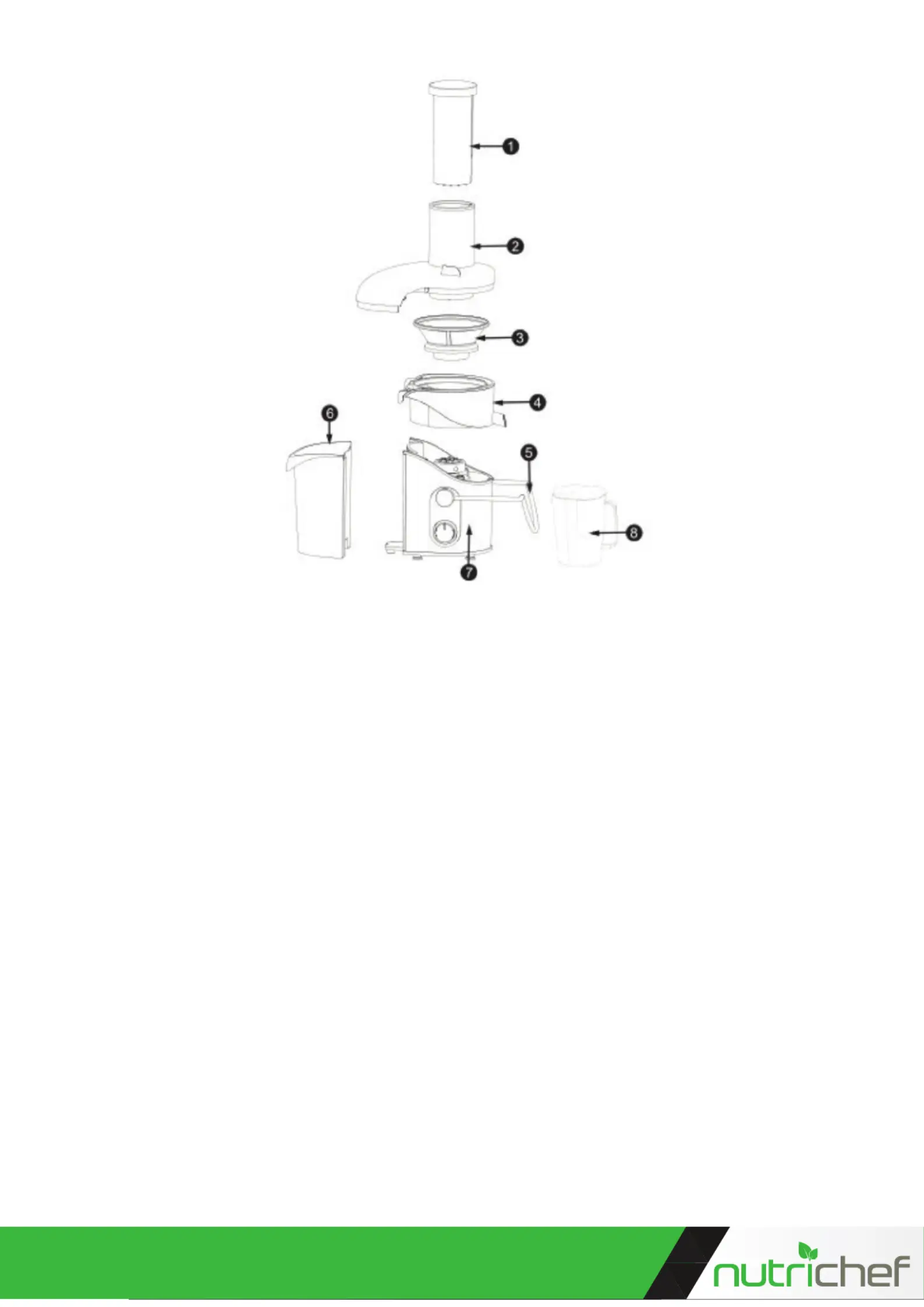

Main Components Diagram
1. Pushing Jar
2. Transparent Cover
3. Juicing Net
4. Middle Ring
5. Handle
6. Residue Barrel
7. Main Machine
8. Juicer Jug
Maintenance and cleaning
1. If this machine will not be used for a long time, please keep the motor dry and clean.
2. If not used for a long time, please store this machine at a dry and well-ventilated place so as to prevent
the motor from getting damp or moldy.
3. Do not was the main body. When cleaning, only wipe with wet cloth. Other components may be washed
directly with water, such as pushing bar, cover, middle seat, residue cup, juice nozzle cover.
Performances
1. For the juicer, opening with large diameter, entire apple or pear can be put in for juicing, no cutting apart
needed, easy and quick.
2. Design is simple and beautiful, with combined structure, easy to operate and clean.
3. High speed electric motor with overheat protection, high efciency, energy saving with a long service
life motor.
4. Safety lock unit for safety and reliability in use.
3
Attention Before using:
1. This machine is set with safety handle , when the handle does not fasten the cover or the cutter seat
us not fasten of the cover or the cutter seat is not fastened, the motor cannot turn, so as no ensure
safety for the user,
2. When disassembling or assembling the juicer, press the upper of feed port of the cover with your
hand, then force the handle to slide in or out of the cover slot.
3. When disassembling the juicing net, rst remove the cover and residue barrel, then turn the middle
ring up to 30 degrees by holding the juicing nozzle with your hand, and take up, the juicing net will
automatically leave the rotor.
4. In order to avoid damage, before using. First check the power supply for compliance with rated volt
age.
5. Clean all parts able to disassemble (refer to the section of “maintenance and cleaning”).
6. When disassembling, please carefully read the diagram of “name and position of main components”.
7. Please carefully read the “attentions” before using.
Juicing:
1. Before using, please conrm the button switch of the main machine in stop state in this way, in case
assembly is not completed, starting the main machine can be avoided. So unnecessary damage of
person or property can be avoided.
2. Before juicing, rst conrm juicing net and rotor clutch is in position, and no hard contact between
juicing net cutter and transparent cover. Put the transparent cover on, put the handle into the cover
slot, then turn on the machine.
3. Before using, assemble according to the diagram of “name and position of the main components”.
Turn on the power supply, press switch to let the machine run no-load for 5 sec. Put the prepared
vegetable or fruit into feed port of the juicer, press with the pushing bar evenly, hard and slow. The
juice of the vegetable or fruit is fresh and pure.
Note: when pressing food with the pushing bar, force shall be even or indirect, pressing force shall not be
more than 2 lbs. Not with sudden force, otherwise, juicing effect will be reduced.
Operating Time:
This machine is designed with button switches of O grading, I-grading. II-grading, (O for stop, I for weak
grading and II for strong grading). For juicing, select strong grading, for operating time, after operating for
1 minute stop for 1 minute then use again after the above operation is performed for three times, stop
for 15 minutes, do not operate until the motor is cooled, in this way, service life of this machine will be
prolonged the machine will serve you more efciently.
Attention
1. This machine is not to be used by the mentally handicapped or young children, unless under the
direction or help from a capable adult.
2. Before using, put this machine on a stable and even table boardm operate according to the above
methods.
3. Before juicing, rst conrm juicing net and rotor clutched in position and no hard contact between
juicing net cutter and transparent cover. Put the transparent cover on, fasten tight the handle, then turn
on the machine.
4. Before being used the motor works in running-in phase, there may be slight peculiar smell and spark,
this is normal, after the motor works for some period, the above phenomenon will disappear.
5. During juicing, make sure there is not too over ll juice and residue in the middle seat and residue cup,
if too full, please cut off the power supply, clean up then use again.
6. During using, do not open the cup cover. in case power supply is on, do not put hand or any utensil into
the mixing cup or feeding port, otherwise, harmful accident may occur or this machine may be dam
aged.
7. In order to prolong service life of this machine, over-temperature protective device is mounted in the
motor. If the motor works for a long time or overloaded, when over temperature, power supply will
automatically cut off. After the motor stops, pull out the pluge of the power supply, wait for the motor to
cool down. (30 minutes), then use it again..
Product specificaties
| Merk: | Nutrichef |
| Categorie: | Sapcentrifuge |
| Model: | PKJC40 |
