Dear customer,

Thank you very much for choosing a Noctua cooler for your

AMD system.

We always like to think of our coolers as safe long-term

investments: Not only are they built to last, but we also

provide upgrade kits so that you can keep using your

trusty Noctua heatsink whenever you do a system upgrade.

Enjoy your Noctua cooler on your AMD system!

Yours sincerely,

Roland Mossig, Noctua CEO

This NM-AM5/4 mounting kit can be used both on AMD

AM5 and AM4 motherboards. The installation procedure is

identical.

This manual will guide you through the installation process step

by step using an NH-U12P heatsink as an example. Please

note that the installation procedure is identical for all models.

Prior to installing the cooler, please consult the compatibility

centre on our website (ncc.noctua.at) and verify that the cooler

is fully compatible with your motherboard.

Please also make sure that your PC case offers sufcient

clearance for the cooler and that there are no compatibility

issues with any other components (e.g. tall RAM modules).

Double check that the heatsink and fan clips do not make

contact with the VGA card, other PCIe cards, motherboard

heatsinks or any other components.

Noctua cannot be held responsible for any damage or losses

caused by compatibility issues.

Should you encounter any difculties, please check the FAQs

on our website (www.noctua.at/faqs) and don’t hesitate to

contact our support team at support@noctua.at.

Multilingual versions of this manual are available on our web-

site: www.noctua.at/manuals

NOCTUA NM-AM5/4-MP83

INSTALLATION MANUAL

Scan this code to display

multilingual manuals on

your phone.

Please note that this NM-AM5/4-MP83 kit is compatible

with heatsinks with 83 mm mounting pitch (see the following

list) only.

For heatsinks with 78mm mounting pitch (see the following

list), the NM-AM5/4-MP78 kit must be used instead. To

nd out how to determine if your cooler uses 83mm or 78mm

mounting pitch, please see: www.noctua.at/mounting-pitch

For detailed, up-to-date socket compatibility information please

visit: ncc.noctua.at/socket-compatibility-overview

NM-AM5/4-MP83 (83mm mounting pitch)!

NH-D15 (SE-AM4, chromax.black)

NH-D15S (chromax.black)

NH-D14 (SE2011)

NH-D9L

NH-C14

NH-C14S

NH-C12P (SE14)

NH-L12

NH-U12P (SE1366, SE2)

NH-U9B (SE2)

NH-L9x65 (SE-AM4)

NH-P1

NM-AM5/4-MP78 (78mm mounting pitch)

!

NH-D12L

NH-L12 Ghost S1 Edition

NH-L12S

NH-U9S (chromax.black)

NH-U12A (chromax.black)

NH-U12S (SE-AM4, chromax.black)

NH-U12S redux

NH-U14S

Required mounting parts:

4x NM-APS4

grey plastic spacers

4x NM-ALS1

long screws

2x NM-AMB4

mounting bars

If your motherboard comes with a pre-installed CPU cooler

retention module, please rst remove it by unscrewing it from

the backplate.

Removing the stock retention module1

Installing the mounting bars2

First put the plastic spacers onto the screw threads of the

backplate, then x the NM-AMB4 mounting bars using the

four NM-ALS1 long screws.

Make sure that the curved sides of the mounting bars are

pointing inwards.

Caution: Gently tighten the screws until they stop, but do not

use excessive force (max. torque 0.6 Nm).

If there are residual traces of thermal paste or thermal pads on

your CPU, please clean them off rst.

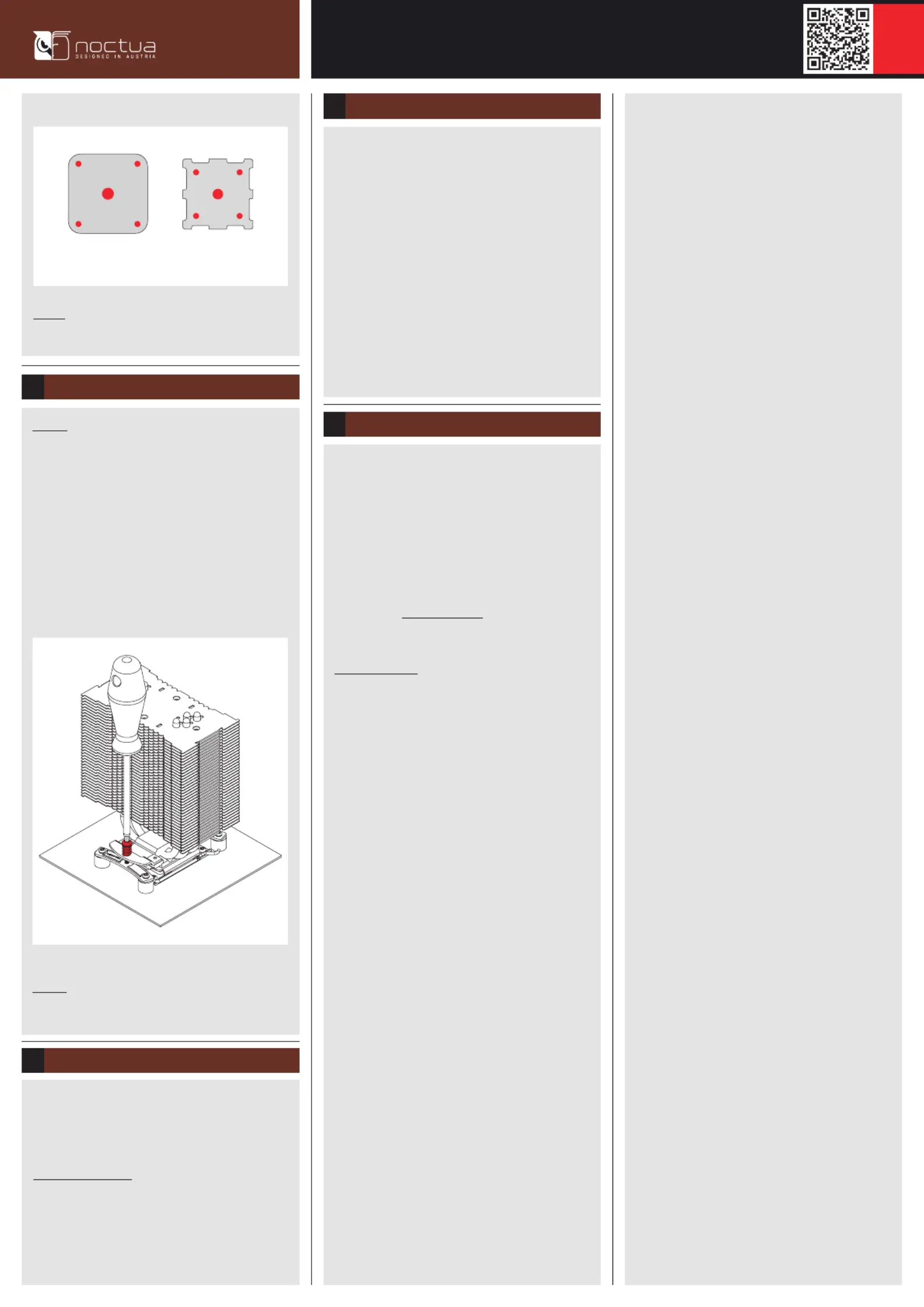

Apply 5 small dots; 4 small dots with ~2mm diameter near

the corners plus 1 dot with 3-4mm diameter in the centre:

Applying the thermal paste3

The SecuFirm2™ mounting system will install directly to the

stock backplate, so please keep it in place.

AMD stock backplate

(Pre-installed on the motherboard)
