Bekijk de handleiding van Newport Brass 3-368 gratis online of download de PDF. 9 mensen vonden deze handleiding nuttig. Vraag over dit model? Stel een vraag
Recommended
Recommended
Recommended
Recommended Recommended Installation
Installation
Installation
Installation Installation by
by
by
by by a
a
a
a a Professional
Professional
Professional
Professional Professional Plumbing
Plumbing
Plumbing
Plumbing Plumbing C
C
C
CContractor
ontractor
ontractor
ontractorontractor
Note: The use of petroleum base plumbers putty on our products will nullify the warranty.
We recommend the use of clear silicone sealing materials.

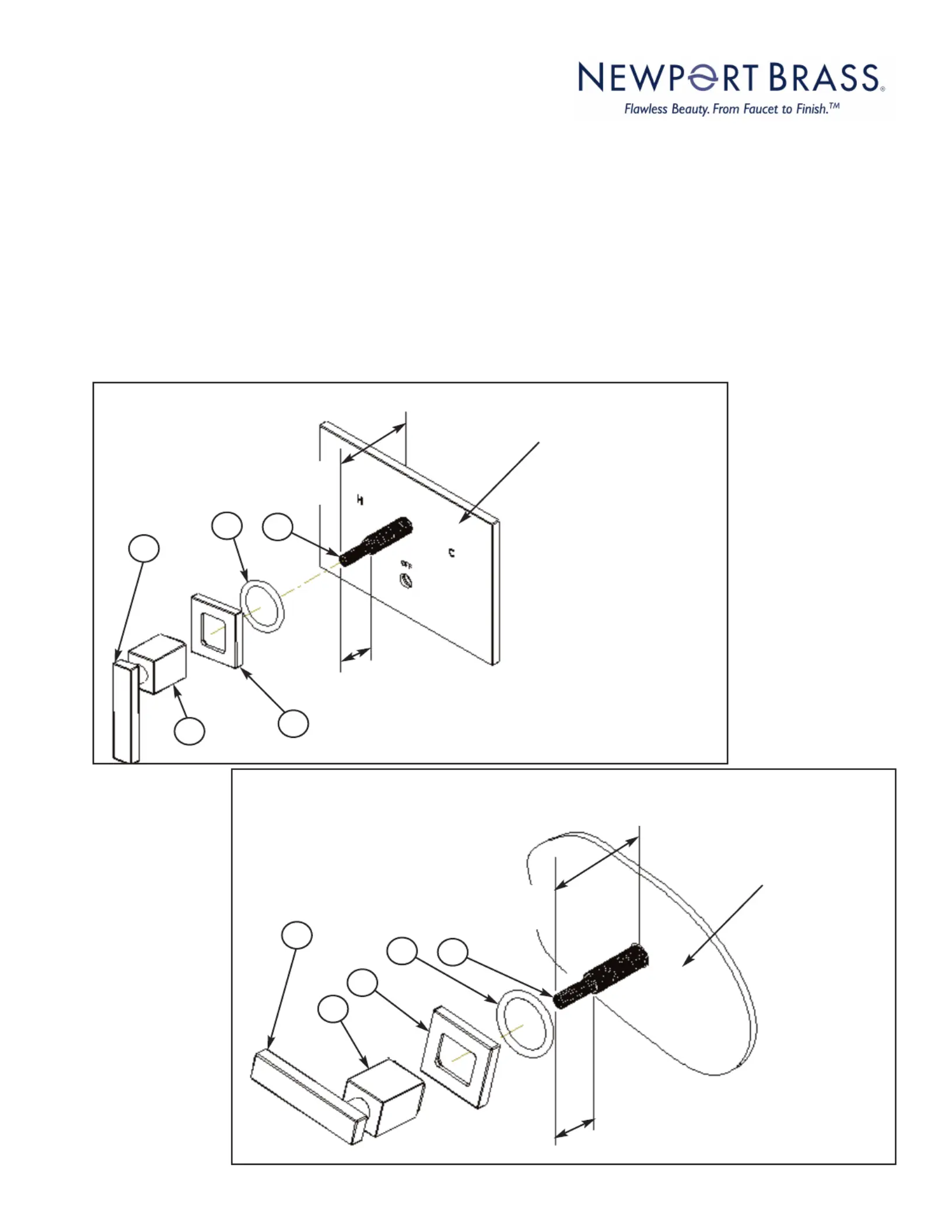

1. Place O-RING (4) and ESCUTCHEON (2) over VALVE STEM (3). Secure handle assembly into place by
first engaging the VALVE STEM (3), then position and holding the handle LEVER (5) while rotating the BON-
NET (1) and ESCUTCHEON (2). See illustrations below for variable application requirements.
1-3/4”
From Finished wall
3/4”
Typical installation for handle in applications with cover plate
1-3/8”
From Finished wall
3/4”
Typical installation for handle in applications without a cover
plate - (mounted directly to finished wall)
Finished Wall
BP Cover Plate
INSTALLATION INSTRUCTIONS
LEVER HANDLE
Model No: 3-368;
4
1
2
3
5
4
1
2
3
5
(949)417-5207
NWP-3-368 Santa Ana, CA 92705 10/10/2011
www.brasstech.com
