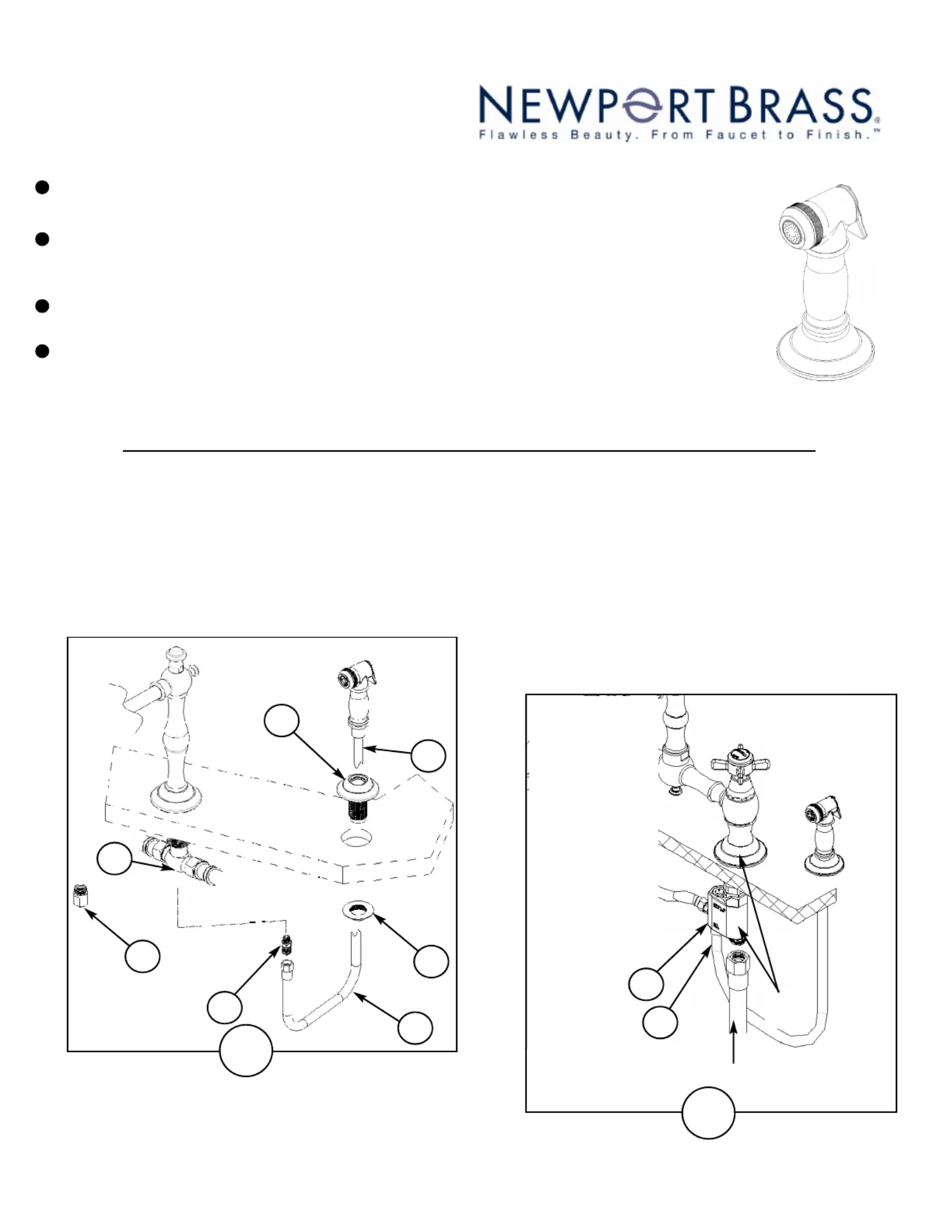

Recommended installation by a Professional Plumbing Contractor
Remove FLANGE NUT (1) from threaded shank of ESCUTCHEON (2) and SPRAY
HOSE (3).
Drop SPRAY HOSE (3) and ESCUTCHEON (2) unit through mounting hole surface.
From underside of mounting surface, slide SPRAY HOSE through FLANGE NUT (1) and
secure into place by threading FLANGE NUT (1) onto shank of ESCUTCHEON (2).
Connect to existing faucet options:
NOTE:DO NOT CONNECT SIDE SPRAY HOSE DIRECTLY TO THE MAIN WATER SUPPLY.
a. Wide spread faucets - Remove DIVERTER TEE ADAPTER PLUG (4) from end of SPOUT DIVERTER (5).
b. Bridge faucets - Thread SPRAY HOSE (3) into base of DIVERTER ASSEMBLY BLOCK (7). Do not use
ADAPTER (6)
SIDE SPRAY INSTALLATION
INSTRUCTIONS
MODEL No's: 129, 2470-5703
NWP-129
Cold water supply
Cold
side
06/25/12
a
b
1
6
5
4
2
3
1
3
7
