MAINTENANCE

PACKAGE CONTENT

Keep your device clean

▪Keeping the optical ports clean of dust and debris.

Even small dust particles on the end surfaces of the plugs

or in the test adapters can adversely affect the accuracy

of the measurement.

▪Wipe the device only with a damp cloth. Do NOT use

aggressive cleaners or solvents on the housing and display.

▪Clean the optical parts with appropriate fiber optic cleaning

material only.

▪The OPM port does NOT require servicing or cleaning.

Do not touch the photosensor or insert swabs/click cleaners

▪The VFL port contains a 2,5 mm UPC ferrule. Clean it with

suitable, lint-free fiber optic cleaning swabs or click cleaners.

Keep the dust cover on

▪Cover the optical connections with the dust cap whenever

they are not in use. This prevents them from getting

contaminated and avoids measurement errors.

ItemQuantity

OPM200 main unit

Remote unit (Inserted into bottom of Main unit)

Carrying Strap

USB-A to USB-C cable

Quick Start Guide

1

1

1

1

1

POWER SUPPLY

The device can be charged with any standard-compliant USB-C charger.

Charging Voltage: DC 5V

Charging Current: Max 1 Ampere

SAFETY WARNINGS

Warning

▪Do NOT connect the RJ45 port to live voltage!

The device will be damaged!

▪Do NOT insert an APC connector into the VFL port!

The device will be damaged!

▪Do NOT insert an RJ11/12 connector into the RJ45 jack!

The device will be damaged!

▪Do NOT open the housing or damage the Li-Ion battery!

Service must be done by authorized personnel only.

▪Do NOT connect the OPM port to a laser source with

an output power greater than +6 dBm!

The device will be damaged!

Laser safety

▪This is a Laser Class 2 product. Do not stare into the beam.

Always keep the cover on the VFL port when not in use.

▪It is recommended to use laser safety glasses when working

with fiber optic systems.

RECYCLING

Do not place equipment and accessories in the trash.

Items must be properly disposed of in accordance

with local regulations.

!

!

CLASS2

LASER

PRODUCT

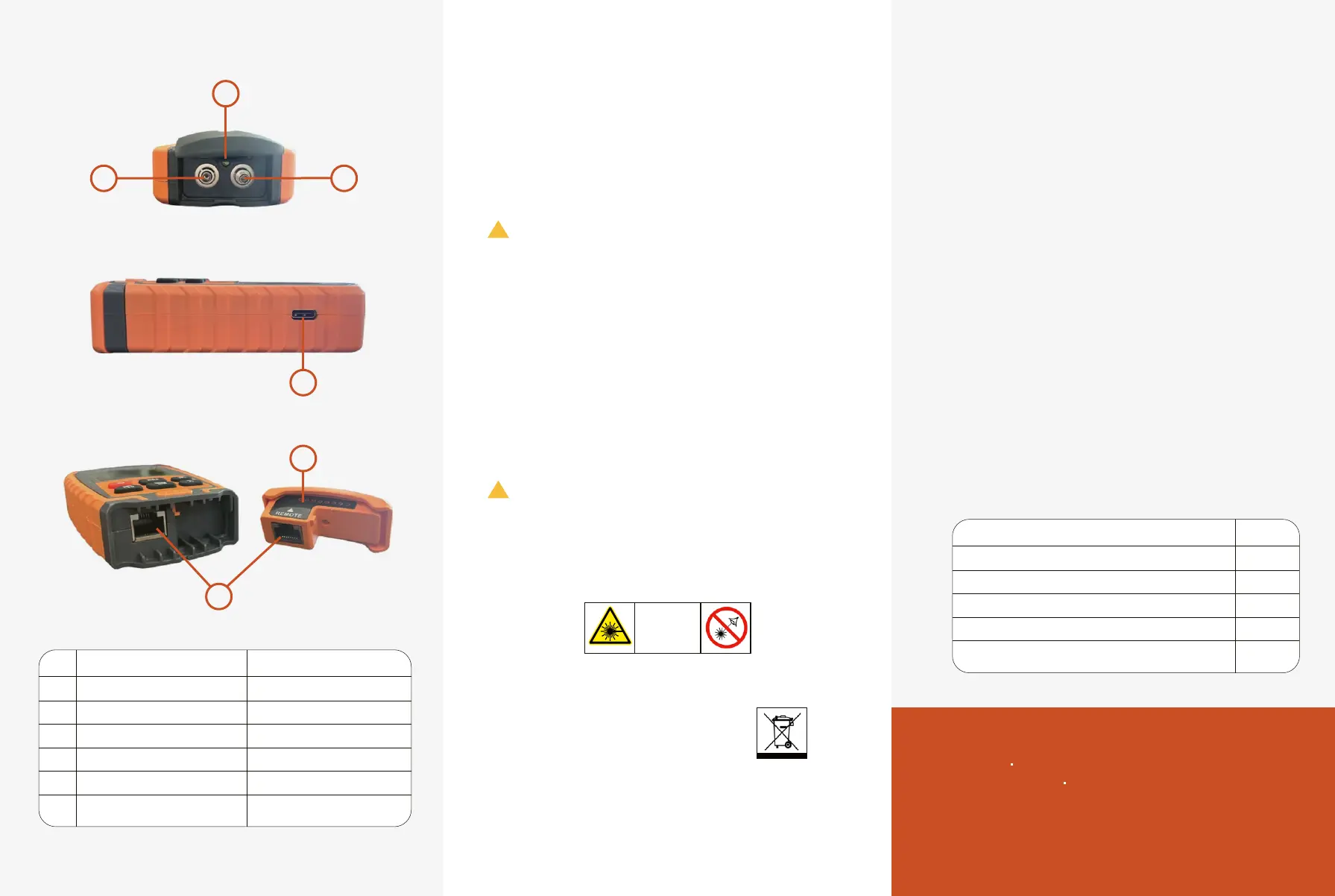

Top view

Side view

Bottom view

INTERFACE

PurposeType

Visual Fault Locator (VFL)

Optical Power Meter (OPM)

LED Flashlight

Charging

Cable Test Port

Cable Test Sequence

A

B

C

D

E

F

2,5 mm Universal Push and Pull

2,5 mm Universal Push and Pull

White LED

USB Type C

RJ45

Red LEDs

BA

C

F

D

E
