Table of Contents

FOREWARD from Mike Adams .................................. 4

THE BASICS

How to use this Manual ....................................... 5

Setup and Connections ........................................ 6

Overview and Features ........................................ 11

Signal Flow .................................................................... 14

THE COMPONENTS

A. Mixer Section ........................................................ 18

B. Oscillator Section ................................................ 20

C. Filter Section ......................................................... 24

D. Envelopes Section .............................................. 27

E. Output Section ..................................................... 30

F. Modulation Section .......................................... 31

G. LFO/Sample & Hold Section ..................... 35

H. Keyboard & LH Controllers ......................... 37

I. Touch Surface Controller ................................. 38

J. Back Panel .................................................................. 39

K. Interface Panel ...................................................... 41

THE USER INTERFACE

Panel Mode .......................................................................... 43

Edit Mode ................................................................................ 49

Master Mode ......................................................................... 63

How the Voyager handles MIDI .................................. 76

APPENDICES

A – Touch Surface LFO S&H: In Use ....................... 79

B – MIDI Basics .................................................................. 80

C – Initilization Parameters .......................................... 82

D – Synthesis Tutorial ....................................................... 84

E – MIDI Implementation ............................................. 89

F – Service & Support Information ......................... 90

G – Caring for the Voyager ............................................ 90

H – VX-351 & VX-352 CV Expanders ................. 92

I – Using the CP-251 with the Voyager .............. 104

J – Specications ................................................................. 108

K – Accessories ................................................................... 109

GLOSSARY ...................................................................................... 111

PRESET LIST .................................................................................. 115

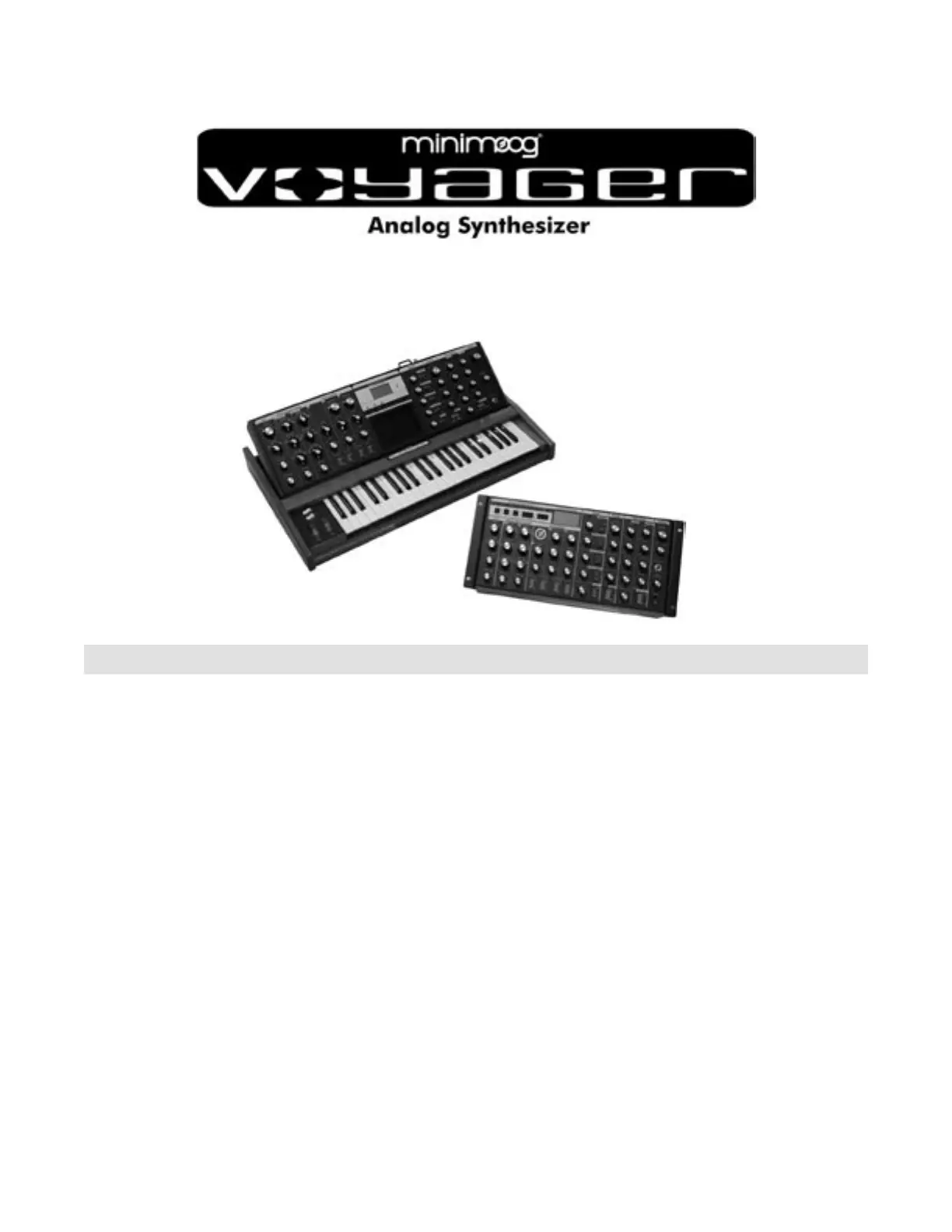

User’s Manual
